dlfeval

Evaluate deep learning model for custom training loops

Syntax

[y1,...,yk] = dlfeval(fun,x1,...,xn)

Description

The dlfeval function evaluates deep learning models and functions with automatic differentiation enabled. To compute the gradients, use the dlgradient function.

Tip

For most deep learning tasks, you can use a pretrained neural network and adapt it to your own data. For an example showing how to use transfer learning to retrain a convolutional neural network to classify a new set of images, see Retrain Neural Network to Classify New Images. Alternatively, you can create and train neural networks from scratch using the trainnet and trainingOptions functions.

If the trainingOptions function does not provide the training options that you need for your task, then you can create a custom training loop using automatic differentiation. To learn more, see Train Network Using Custom Training Loop.

If the trainnet function does not provide the loss function that you need for your task, then you can specify a custom loss function to the trainnet as a function handle. For loss functions that require more inputs than the predictions and targets (for example, loss functions that require access to the neural network or additional inputs), train the model using a custom training loop. To learn more, see Train Network Using Custom Training Loop.

If Deep Learning Toolbox™ does not provide the layers you need for your task, then you can create a custom layer. To learn more, see Define Custom Deep Learning Layers. For models that cannot be specified as networks of layers, you can define the model as a function. To learn more, see Train Network Using Model Function.

For more information about which training method to use for which task, see Train Deep Learning Model in MATLAB.

[y1,...,yk] = dlfeval(fun,x1,...,xn) evaluates the deep learning array function fun at the input arguments x1,...,xn. Functions passed to dlfeval can contain calls to dlgradient, which compute gradients from the inputs x1,...,xn by using automatic differentiation.

Examples

Compute Gradient Using Automatic Differentiation

Rosenbrock's function is a standard test function for optimization. The rosenbrock.m helper function computes the function value and uses automatic differentiation to compute its gradient.

type rosenbrock.m

function [y,dydx] = rosenbrock(x)

y = 100*(x(2) - x(1).^2).^2 + (1 - x(1)).^2;
dydx = dlgradient(y,x);

end

To evaluate Rosenbrock's function and its gradient at the point [–1,2], create a dlarray of the point and then call dlfeval on the function handle @rosenbrock.

x0 = dlarray([-1,2]);
[fval,gradval] = dlfeval(@rosenbrock,x0)

fval =
  1×1 dlarray

   104

gradval =
  1×2 dlarray

   396   200

Alternatively, define Rosenbrock's function as a function of two inputs, x1 and x2.

type rosenbrock2.m

function [y,dydx1,dydx2] = rosenbrock2(x1,x2)

y = 100*(x2 - x1.^2).^2 + (1 - x1).^2;
[dydx1,dydx2] = dlgradient(y,x1,x2);

end

Call dlfeval to evaluate rosenbrock2 on two dlarray arguments representing the inputs –1 and 2.

x1 = dlarray(-1);
x2 = dlarray(2);
[fval,dydx1,dydx2] = dlfeval(@rosenbrock2,x1,x2)

fval =
  1×1 dlarray

   104

dydx1 =
  1×1 dlarray

   396

dydx2 =
  1×1 dlarray

   200

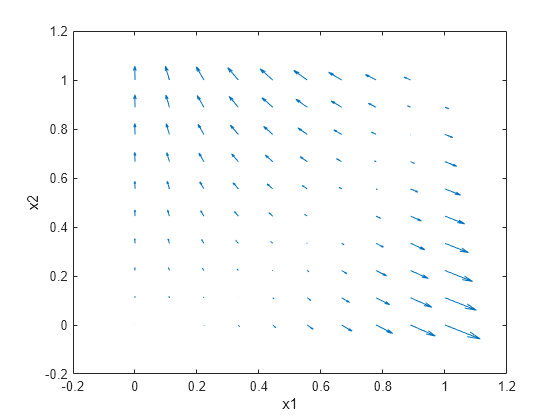

Plot the gradient of Rosenbrock's function for several points in the unit square. First, initialize the arrays representing the evaluation points and the output of the function.

[X1 X2] = meshgrid(linspace(0,1,10));
X1 = dlarray(X1(:));
X2 = dlarray(X2(:));
Y = dlarray(zeros(size(X1)));
DYDX1 = Y;
DYDX2 = Y;

Evaluate the function in a loop. Plot the result using quiver.

for i = 1:length(X1)
    [Y(i),DYDX1(i),DYDX2(i)] = dlfeval(@rosenbrock2,X1(i),X2(i));
end
quiver(extractdata(X1),extractdata(X2),extractdata(DYDX1),extractdata(DYDX2))
xlabel('x1')
ylabel('x2')

Compute Gradients Involving Complex Numbers

Use dlgradient and dlfeval to compute the value and gradient of a function that involves complex numbers. You can compute complex gradients, or restrict the gradients to real numbers only.

Define the function complexFun, listed at the end of this example. This function implements the following complex formula:

$\mathit{f}\left(\mathit{x}\right)=\left(2+3\mathit{i}\right)\mathit{x}$

Define the function gradFun, listed at the end of this example. This function calls complexFun and uses dlgradient to calculate the gradient of the result with respect to the input. For automatic differentiation, the value to differentiate — i.e., the value of the function calculated from the input — must be a real scalar, so the function takes the sum of the real part of the result before calculating the gradient. The function returns the real part of the function value and the gradient, which can be complex.

Define the sample points over the complex plane between -2 and 2 and -2$\mathit{i}$ and 2$\mathit{i}$ and convert to dlarray.

functionRes = linspace(-2,2,100);
x = functionRes + 1i*functionRes.';
x = dlarray(x);

Calculate the function value and gradient at each sample point.

[y, grad] = dlfeval(@gradFun,x);
y = extractdata(y);

Define the sample points at which to display the gradient.

gradientRes = linspace(-2,2,11);
xGrad = gradientRes + 1i*gradientRes.';

Extract the gradient values at these sample points.

[~,gradPlot] = dlfeval(@gradFun,dlarray(xGrad));
gradPlot = extractdata(gradPlot);

Plot the results. Use imagesc to show the value of the function over the complex plane. Use quiver to show the direction and magnitude of the gradient.

imagesc([-2,2],[-2,2],y);
axis xy
colorbar
hold on
quiver(real(xGrad),imag(xGrad),real(gradPlot),imag(gradPlot),"k");
xlabel("Real")
ylabel("Imaginary")
title("Real Value and Gradient","Re$(f(x)) = $ Re$((2+3i)x)$","interpreter","latex")

The gradient of the function is the same across the entire complex plane. Extract the value of the gradient calculated by automatic differentiation.

grad(1,1)

ans =
  1×1 dlarray

   2.0000 - 3.0000i

By inspection, the complex derivative of the function has the value

$\frac{\mathrm{df}\left(\mathit{x}\right)}{\mathrm{dx}}=2+3\mathit{i}$

However, the function Re($\mathit{f}\left(\mathit{x}\right)$) is not analytic, and therefore no complex derivative is defined. For automatic differentiation in MATLAB, the value to differentiate must always be real, and therefore the function can never be complex analytic. Instead, the derivative is computed such that the returned gradient points in the direction of steepest ascent, as seen in the plot. This is done by interpreting the function Re$\left(\mathit{f}\left(\mathit{x}\right)\right)$: C $\to$ R as a function Re$\left(\mathit{f}\left({\mathit{x}}_{\mathit{R}}+\mathit{i}{\mathit{x}}_{\mathit{I}}\right)\right)$: R $\times$ R $\to$ R.

function y = complexFun(x)
    y = (2+3i)*x;
end

function [y,grad] = gradFun(x)
    y = complexFun(x);
    y = real(y);

    grad = dlgradient(sum(y,"all"),x);
end

Input Arguments

fun — Function to evaluate

function handle

Function to evaluate, specified as a function handle. If fun includes a dlgradient call, then dlfeval evaluates the gradient by using automatic differentiation. In this gradient evaluation, each argument of the dlgradient call must be a dlarray or a cell array, structure, or table containing a dlarray. The number of input arguments to dlfeval must be the same as the number of input arguments to fun.

Example: @rosenbrock

Data Types: function_handle

x1,...,xn — Function arguments

any MATLAB^® data type | dlnetwork

Function arguments, specified as any MATLAB data type or a dlnetwork object. Quantized dlnetwork objects are not supported.

An input argument xj that is a variable of differentiation in a dlgradient call must be a traced dlarray or a cell array, structure, or table containing a traced dlarray. An extra variable such as a hyperparameter or constant data array does not have to be a dlarray.

To evaluate gradients for deep learning, you can provide a dlnetwork object as a function argument and evaluate the forward pass of the network inside fun.

Example: dlarray([1 2;3 4])

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | logical | char | string | struct | table | cell | function_handle | categorical | datetime | duration | calendarDuration | fi
Complex Number Support: Yes

Output Arguments

y1,...,yk — Function outputs

any data type | dlarray

Function outputs, returned as any data type. If the output results from a dlgradient call, the output is a dlarray.

Tips

• A dlgradient call must be inside a function. To obtain a numeric value of a gradient, you must evaluate the function using dlfeval, and the argument to the function must be a dlarray. See Use Automatic Differentiation In Deep Learning Toolbox.

• To enable the correct evaluation of gradients, the function fun must use only supported functions for dlarray. See List of Functions with dlarray Support.

• To speed up calls to deep learning functions, such as model functions and model loss functions, you can use the dlaccelerate function. The function returns an AcceleratedFunction object that automatically optimizes, caches, and reuses the traces.

Algorithms

Reproducibility

To provide the best performance, deep learning using a GPU in MATLAB is not guaranteed to be deterministic. Depending on your network architecture, under some conditions you might get different results when using a GPU to train two identical networks or make two predictions using the same network and data. If you require determinism when performing deep learning operations using a GPU, use the deep.gpu.deterministicAlgorithms function (since R2024b).

If you use the rng function to set the same random number generator and seed, then custom training loops using a CPU are reproducible unless your training data is a minibatchqueue object with the PreprocessingEnvironment property set to "background" or "parallel".

Extended Capabilities

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

The dlfeval function supports GPU array input with these usage notes and limitations:

• dlfeval supports providing x1,...,xn as a gpuArray or as a dlarray that contains a gpuArray.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2019b
