Circle

Circle annotation

Since R2026a

expand all in page

    Description

    A Circle object labels a circle in a Viewer object. The properties of the object control the appearance and behavior of the circle annotation.

    Viewer-based ROIs provide high-performance interactions with images and volumes you display in a Viewer object using imageshow and volshow, respectively. To draw a circle on an imshow image display, use drawcircle instead.

    Blue Circle ROI drawn over a round object in an image

    Creation

    You can create a Circle object in these ways:

    • Interactively draw a circle in a 2-D Viewer object. From the viewer toolbar, select the draw annotations icon draw annotations icon, then select the draw circle icon draw circle icon. Click to place a point on the perimeter of the circle, drag to the opposite point on the perimeter of the circle, and release. To export the ROI to the workspace as a Circle object, right-click the edge of the circle and select Export annotation to workspace.

    • Use the uidraw function to interactively draw the ROI in a specified viewer and create the ROI object.

    • Use the images.ui.graphics.roi.Circle function described here. After you create the ROI, you can display it by adding the object to the Annotations property of a Viewer object.

    Syntax

    c = images.ui.graphics.roi.Circle
    c = images.ui.graphics.roi.Circle(Name=Value)

    Description

    c = images.ui.graphics.roi.Circle creates a Circle object with default property values. Use c to query and modify properties of the Circle object after you create it.

    c = images.ui.graphics.roi.Circle(Name=Value) sets one or more writable properties using name-value arguments.

    Example: images.ui.graphics.roi.Circle(Position=[10 20 5]) creates a Circle object with a radius of 5 pixels whose center is at the xyz-coordinates (10, 20, 1).

    example

    Properties

    expand all

    Shape and Position

    Position of the ROI, specified as a 4-element numeric vector of the form [x y z r] or a 3-element numeric vector of the form [x y r].

    • [x y z r] — The center of the circle is at coordinate (x, y, z), and the circle has radius r.

    • [x y r] — Defines the xy-coordinates of the center of the circle (x, y), and the object sets the z-coordinate of the center to 1.

    The object always stores this property value as a 4-element row vector.

    Center coordinate of the ROI, specified as a 3-element numeric vector of the form [x y z] or a 2-element numeric vector of the form [x y].

    • [x y z] — The center of the circle is at coordinate (x, y, z).

    • [x y] — Defines the xy-coordinates of the center of the circle (x, y), and the object sets the z-coordinate of the center to 1.

    The object always stores this property value as a 3-element row vector.

    Radius of the circle, specified as a nonnegative number.

    This property is read-only.

    Area covered by the ROI, represented as a numeric scalar.

    This property is read-only.

    Circumference of the ROI, represented as a numeric scalar.

    Color and Styling

    ROI color, specified as an RGB triplet, a hexadecimal color code, a color name, or a short color name.

    These are the RGB triplets for the default colors used in 2-D and 3-D Viewer scenes.

    RGB TripletAppearanceDefault Use
    [0 0.5610 1]

    A rectangle colored medium-light blue

    		This is the default color when creating an ROI in a 2-D Viewer object from the toolbar or by using the uidraw function.
    [0.8660 0.3290 0]

    A rectangle colored orange

    		This is the default color when creating an ROI in a 3-D Viewer object from the toolbar or by using uidraw. This color is also the default when you create an ROI in any Viewer object by using an object constructor function such as images.ui.graphics.roi.Circle.

    For a custom color, specify an RGB triplet or a hexadecimal color code.

    • An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0,1], for example, [0.4 0.6 0.7].

    • A hexadecimal color code is a string scalar or character vector that starts with a hash symbol (#) followed by three or six hexadecimal digits, which can range from 0 to F. The values are not case sensitive. Therefore, the color codes "#FF8800", "#ff8800", "#F80", and "#f80" are equivalent.

    Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and the hexadecimal color codes.

    Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
    "red""r"[1 0 0]"#FF0000"

    Sample of the color red

    "green""g"[0 1 0]"#00FF00"

    Sample of the color green

    "blue""b"[0 0 1]"#0000FF"

    Sample of the color blue

    "cyan" "c"[0 1 1]"#00FFFF"

    Sample of the color cyan

    "magenta""m"[1 0 1]"#FF00FF"

    Sample of the color magenta

    "yellow""y"[1 1 0]"#FFFF00"

    Sample of the color yellow

    "black""k"[0 0 0]"#000000"

    Sample of the color black

    "white""w"[1 1 1]"#FFFFFF"

    Sample of the color white

    This table lists the default color palettes for plots in the light and dark themes.

    PalettePalette Colors

    "gem" — Light theme default

    Before R2025a: Most plots use these colors by default.

    Sample of the "gem" color palette

    "glow" — Dark theme default

    Sample of the "glow" color palette

    You can get the RGB triplets and hexadecimal color codes for these palettes using the orderedcolors and rgb2hex functions. For example, get the RGB triplets for the "gem" palette and convert them to hexadecimal color codes.

    RGB = orderedcolors("gem");
H = rgb2hex(RGB);

    Example: Color="r"

    Example: Color="green"

    Example: Color=[0 0.4470 0.7410]

    Example: Color="#00FFFF"

    Transparency of the ROI face, specified as a scalar in the range [0, 1]. When the value is 1, the ROI face is completely opaque. When the value is 0, the ROI face is completely transparent.

    ROI visibility, specified as "on" or "off", or as a numeric or logical 0 (false) or 1 (true). A value of "on" is equivalent to true, and "off" is equivalent to false. The value is stored as an on/off logical value of type OnOffSwitchState.

    ValueDescription
    "on"Display the ROI.
    "off"Hide the ROI without deleting it. You can still access the properties of an invisible ROI.

    ROI label, specified as a string scalar or character vector. By default, the label shows the radius of the circle. If the parent Viewer has a nondefault value for the SpatialUnits property, such as "mm", then the label includes the specified units.

    To display a custom label, specify the label to display as a string scalar or character vector. To display no label, specify the Label value as "".

    Interactivity

    Interactivity of the ROI, specified as one of the values in this table.

    ValueDescription
    "all"You can fully interact with the ROI. Reshape the ROI by changing the position of individual drag points on the boundary of the ROI, or translate (move) the entire ROI.
    "none"You cannot interact with the ROI or access the context menu. No drag points are visible.
    "reshape"You can reshape the ROI by changing the position of individual drag points on the boundary of the ROI.
    "translate"You can translate the entire ROI within the drawing area. No drag points are visible, and you cannot reshape the ROI.
    "click"You can click the ROI, but you cannot translate the ROI interactively. After you click the ROI, the parent Viewer broadcasts the AnnotationMoved event.

    ROI face supports interactions, specified as "on" or "off", or as a numeric or logical 1 (true) or 0 (false). A value of "on" is equivalent to true, and "off" is equivalent to false. The value is stored as an on/off logical value of type OnOffSwitchState.

    ValueDescription
    "on"The ROI face supports interactions. If Interactions is "all" or "translate", then you can interact with the ROI by clicking the face and dragging the ROI.
    "off"You cannot interact with the face of the ROI.

    Identifiers

    ROI parent, specified as a Viewer object. You can create a Viewer object for a 2-D image display or 3-D volume display by using the viewer2d or viewer3d function, respectively.

    Tag to associate with the ROI, specified as a character vector or string scalar. This property has no effect on the display, and the viewer does not use this property. You can use this property to track annotations for app building.

    Data to associate with the ROI, specified as any MATLAB data. For example, you can specify a scalar, vector, matrix, cell array, string, character array, table, or structure. This property has no effect on the display, and the viewer does not use this property. You can use this property to append metadata to the ROI for app building.

    Object Functions

    createMaskCreate binary mask image from ROI

    Examples

    collapse all

    Open Live Script

    Display an image in a Viewer object. The viewer v is the parent of the image object created by imageshow.

    img = imageshow("pears.png");
v = img.Parent;

    Create a circular ROI object. Use the Center and Radius properties to specify the position and size of the circle.

    centerXY = [446.1667 203.1771 1];
radius = 74.9882;

c = images.ui.graphics.roi.Circle(Center=centerXY,Radius=radius)
    c =
  Circle with properties:

           Center: [446.1667 203.1771 1]
           Radius: 74.9882
            Color: [0.8660 0.3290 0]

             Area: 1.7666e+04
    Circumference: 471.1647

    Display the ROI by adding it to the Annotations property of the Viewer object.

    v.Annotations = [v.Annotations; c];

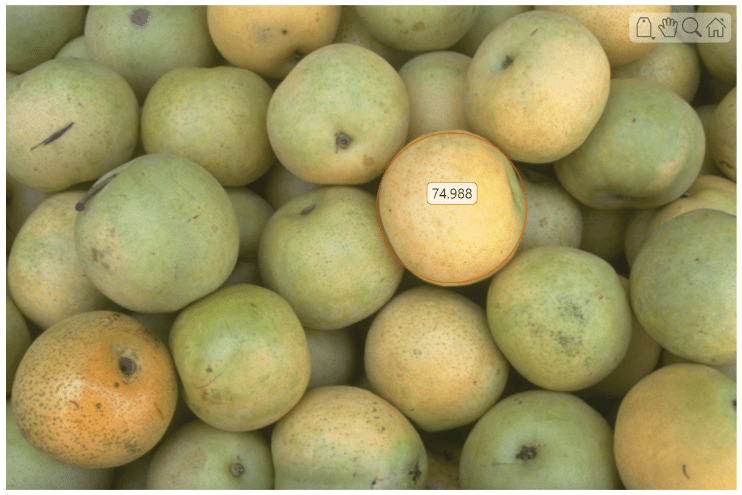

    Pears image with a circle ROI with a numeric label around one object

    Tips

    • The uidraw and images.ui.graphics.roi.Circle functions create ROIs to display in a Viewer object. Viewer-based ROIs provide high-performance interactions with images and volumes you display in a Viewer object using imageshow and volshow, respectively. To draw a circle on an imshow image display, use drawcircle instead.

    • The ROI supports this interactivity, including keyboard shortcuts.

      BehaviorInteraction
      Add annotation

      From the viewer toolbar, select the draw annotations icon draw annotations icon, then select the draw circle icon draw circle icon. To draw the circle, click to place a point on the perimeter of the circle, drag to the opposite point on the perimeter, and release. To adjust the center, hold Ctrl while you drag.

      Resize annotation

      To change the radius of the circle, drag the edge of the ROI.

      Move annotationHold Ctrl and drag the ROI.
      Edit annotation labelRight-click the edge of the ROI. From the context menu, select Edit label. When the label text highlights, type new text for the label. To finish editing, click outside the label.
      Remove annotationRight-click the edge of the ROI and choose Remove annotation from the context menu. Select Remove all annotations to remove all annotations in the viewer.

    Version History

    Introduced in R2026a
