tsne
t-Distributed Stochastic Neighbor Embedding
Description
modifies
the embeddings using options specified by one or more name-value pair
arguments.Y
= tsne(X
,Name,Value
)
Examples
Visualize Fisher Iris Data
The Fisher iris data set has four-dimensional measurements of irises, and corresponding classification into species. Visualize this data by reducing the dimension using tsne
.
load fisheriris rng default % for reproducibility Y = tsne(meas); gscatter(Y(:,1),Y(:,2),species)

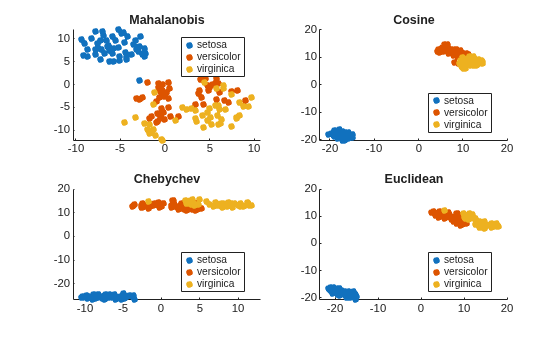

Compare Distance Metrics
Use various distance metrics to try to obtain a better separation between species in the Fisher iris data.
load fisheriris rng('default') % for reproducibility Y = tsne(meas,'Algorithm','exact','Distance','mahalanobis'); subplot(2,2,1) gscatter(Y(:,1),Y(:,2),species) title('Mahalanobis') rng('default') % for fair comparison Y = tsne(meas,'Algorithm','exact','Distance','cosine'); subplot(2,2,2) gscatter(Y(:,1),Y(:,2),species) title('Cosine') rng('default') % for fair comparison Y = tsne(meas,'Algorithm','exact','Distance','chebychev'); subplot(2,2,3) gscatter(Y(:,1),Y(:,2),species) title('Chebychev') rng('default') % for fair comparison Y = tsne(meas,'Algorithm','exact','Distance','euclidean'); subplot(2,2,4) gscatter(Y(:,1),Y(:,2),species) title('Euclidean')
In this case, the cosine, Chebychev, and Euclidean distance metrics give reasonably good separation of clusters. But the Mahalanobis distance metric does not give a good separation.
Plot Results with NaN
Input Data
tsne
removes input data rows that contain any NaN
entries. Therefore, you must remove any such rows from your classification data before plotting.
For example, change a few random entries in the Fisher iris data to NaN
.
load fisheriris rng default % for reproducibility meas(rand(size(meas)) < 0.05) = NaN;
Embed the four-dimensional data into two dimensions using tsne
.
Y = tsne(meas,'Algorithm','exact');
Warning: Rows with NaN missing values in X or 'InitialY' values are removed.
Determine how many rows were eliminated from the embedding.
length(species)-length(Y)
ans = 22
Prepare to plot the result by locating the rows of meas
that have no NaN
values.
goodrows = not(any(isnan(meas),2));
Plot the results using only the rows of species
that correspond to rows of meas
with no NaN
values.
gscatter(Y(:,1),Y(:,2),species(goodrows))

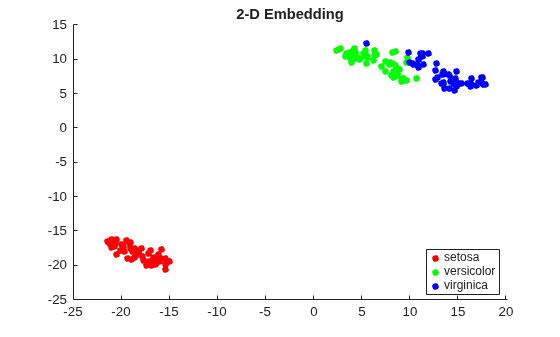

Compare t-SNE Loss
Find both 2-D and 3-D embeddings of the Fisher iris data, and compare the loss for each embedding. It is likely that the loss is lower for a 3-D embedding, because this embedding has more freedom to match the original data.
load fisheriris rng default % for reproducibility [Y,loss] = tsne(meas,'Algorithm','exact'); rng default % for fair comparison [Y2,loss2] = tsne(meas,'Algorithm','exact','NumDimensions',3); fprintf('2-D embedding has loss %g, and 3-D embedding has loss %g.\n',loss,loss2)
2-D embedding has loss 0.1255, and 3-D embedding has loss 0.0980872.
As expected, the 3-D embedding has lower loss.
View the embeddings. Use RGB colors [1 0 0]
, [0 1 0]
, and [0 0 1]
.
For the 3-D plot, convert the species to numeric values using the categorical
command, then convert the numeric values to RGB colors using the sparse
function as follows. If v
is a vector of positive integers 1, 2, or 3, corresponding to the species data, then the command
sparse(1:numel(v),v,ones(size(v)))
is a sparse matrix whose rows are the RGB colors of the species.
gscatter(Y(:,1),Y(:,2),species,eye(3))
title('2-D Embedding')
figure v = double(categorical(species)); c = full(sparse(1:numel(v),v,ones(size(v)),numel(v),3)); scatter3(Y2(:,1),Y2(:,2),Y2(:,3),15,c,'filled') title('3-D Embedding') view(-50,8)
Input Arguments
X
— Data points
n
-by-m
matrix
Data points, specified as an n
-by-m
matrix,
where each row is one m
-dimensional point.
tsne
removes rows of X
that
contain any NaN
values before creating an embedding.
See Plot Results with NaN Input Data.
Data Types: single
| double
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: Y =
tsne(X,'Algorithm','Exact','NumPCAComponents',50)
Algorithm
— tsne
algorithm
'barneshut'
(default) | 'exact'
tsne
algorithm, specified as 'barneshut'
or 'exact'
.
The 'exact'
algorithm optimizes the Kullback-Leibler
divergence of distributions between the original space and the embedded
space. The 'barneshut'
algorithm performs an approximate
optimization that is faster and uses less memory when the number of
data rows is large.
Note
For the 'barneshut'
algorithm, tsne
uses knnsearch
to find the nearest neighbors.
Example: 'exact'
CacheSize
— Size of Gram matrix in megabytes
1e3
(default) | positive scalar | "maximal"
Size of the Gram matrix in megabytes, specified as a positive scalar or
"maximal"
. The tsne
function can use
CacheSize
only when the Distance
name-value
argument begins with fast
.
If you set CacheSize
to "maximal"
,
tsne
tries to allocate enough memory for an entire
intermediate matrix whose size is M
-by-M
, where
M
is the number of rows of the input data X
.
The cache size does not have to be large enough for an entire intermediate matrix, but
must be at least large enough to hold an M
-by-1 vector. Otherwise,
tsne
uses the standard algorithm for computing Euclidean
distances.
If the value of the Distance
argument begins with
fast
, and the value of CacheSize
is too large
or "maximal"
, tsne
might try to allocate
a Gram matrix that exceeds the available memory. In this case, MATLAB® issues an error.
Example: CacheSize="maximal"
Data Types: double
| char
| string
Distance
— Distance metric
'euclidean'
(default) | 'seuclidean'
| 'fasteuclidean'
| 'fastseuclidean'
| 'cityblock'
| 'chebychev'
| 'minkowski'
| 'mahalanobis'
| 'cosine'
| 'correlation'
| 'spearman'
| 'hamming'
| 'jaccard'
| function handle
Distance metric, specified as one of the following:
'euclidean'
— Euclidean distance.'seuclidean'
— Standardized Euclidean distance. Each coordinate difference between the rows inX
and the query matrix is scaled by dividing by the corresponding element of the standard deviation computed fromS = std(X,'omitnan')
.'fasteuclidean'
— Euclidean distance computed by using an alternative algorithm that saves time when the number of predictors is at least 10. In some cases, this faster algorithm can reduce accuracy. Algorithms starting with'fast'
do not support sparse data. For details, see Algorithms.'fastseuclidean'
— Standardized Euclidean distance computed by using an alternative algorithm that saves time when the number of predictors is at least 10. In some cases, this faster algorithm can reduce accuracy. Algorithms starting with'fast'
do not support sparse data. For details, see Algorithms.'cityblock'
— City block distance.'chebychev'
— Chebychev distance, which is the maximum coordinate difference.'minkowski'
— Minkowski distance with exponent 2. This distance is the same as the Euclidean distance.'mahalanobis'
— Mahalanobis distance, computed using the positive definite covariance matrixcov(X,'omitrows')
.'cosine'
— One minus the cosine of the included angle between observations (treated as vectors).'correlation'
— One minus the sample linear correlation between observations (treated as sequences of values).'spearman'
— One minus the sample Spearman's rank correlation between observations (treated as sequences of values).'hamming'
— Hamming distance, which is the percentage of coordinates that differ.'jaccard'
— One minus the Jaccard coefficient, which is the percentage of nonzero coordinates that differ.Custom distance function — A distance function specified using
@
(for example,@distfun
). For details, see More About.
In all cases, tsne
uses squared pairwise
distances to calculate the Gaussian kernel in the joint distribution
of X
.
Example: 'mahalanobis'
Data Types: char
| string
| function_handle
Exaggeration
— Size of natural clusters in data
4
(default) | scalar value 1
or greater
Size of natural clusters in data, specified as a scalar value 1
or
greater.
A large exaggeration makes tsne
learn larger
joint probabilities of Y
and creates relatively
more space between clusters in Y
. tsne
uses
exaggeration in the first 99 optimization iterations.
If the value of Kullback-Leibler divergence increases in the early stage of the optimization, try reducing the exaggeration. See tsne Settings.
Example: 10
Data Types: single
| double
NumDimensions
— Dimension of the output Y
2
(default) | positive integer
Dimension of the output Y
, specified as
a positive integer. Generally, set NumDimensions
to 2
or 3
.
Example: 3
Data Types: single
| double
NumPCAComponents
— PCA dimension reduction
0
(default) | nonnegative integer
PCA dimension reduction, specified as a nonnegative integer.
Before tsne
embeds the high-dimensional data,
it first reduces the dimensionality of the data to NumPCAComponents
using
the pca
function. When NumPCAComponents
is 0
, tsne
does
not use PCA.
Example: 50
Data Types: single
| double
Perplexity
— Effective number of local neighbors of each point
30
(default) | positive scalar
Effective number of local neighbors of each point, specified as a positive scalar. See t-SNE Algorithm.
Larger perplexity causes tsne
to use more
points as nearest neighbors. Use a larger value of Perplexity
for
a large dataset. Typical Perplexity
values are
from 5
to 50
. In the Barnes-Hut
algorithm, tsne
uses min(3*Perplexity,N-1)
as
the number of nearest neighbors. See tsne Settings.
Example: 10
Data Types: single
| double
Standardize
— Flag to normalize input data
false
(default) | true
Flag to normalize input data, specified as
false
or
true
. When the value is
true
, tsne
centers and scales each column of
X
by first subtracting its
mean, and then dividing by its standard
deviation.
When features in X
are
on different scales, set
'Standardize'
to
true
. The learning process is
based on nearest neighbors, so features with large
scales can override the contribution of features
with small scales.
Example: true
Data Types: logical
InitialY
— Initial embedded points
1e-4*randn(N,NumDimensions)
(default) | n
-by-NumDimensions
real
matrix
Initial embedded points, specified as an n
-by-NumDimensions
real
matrix, where n
is the number of rows of X
.
The tsne
optimization algorithm uses these points
as initial values.
Data Types: single
| double
LearnRate
— Learning rate for optimization process
500
(default) | positive scalar
Learning rate for optimization process, specified as a positive
scalar. Typically, set values from 100
through 1000
.
When LearnRate
is too small, tsne
can
converge to a poor local minimum. When LearnRate
is
too large, the optimization can initially have the Kullback-Leibler
divergence increase rather than decrease. See tsne Settings.
Example: 1000
Data Types: single
| double
NumPrint
— Iterative display frequency
20
(default) | positive integer
Iterative display frequency, specified as a positive integer.
When the Verbose
name-value pair is not 0
, tsne
returns
iterative display after every NumPrint
iterations.
If the Options
name-value pair contains a nonempty 'OutputFcn'
entry,
then output functions run after every NumPrint
iterations.
Example: 20
Data Types: single
| double
Options
— Optimization options
structure containing the fields
'MaxIter'
,
'OutputFcn'
, and
'TolFun'
Optimization options, specified as a structure containing the
fields 'MaxIter'
, 'OutputFcn'
,
and 'TolFun'
. Create 'Options'
using statset
or struct
.
'MaxIter'
— Positive integer specifying the maximum number of optimization iterations. Default:1000
.'OutputFcn'
— Function handle or cell array of function handles specifying one or more functions to call after everyNumPrint
optimization iterations. For syntax details, see t-SNE Output Function. Default:[]
.'TolFun'
— Stopping criterion for the optimization. The optimization exits when the norm of the gradient of the Kullback-Leibler divergence is less than'TolFun'
. Default:1e-10
.
Example: options = statset('MaxIter',500)
Data Types: struct
Theta
— Barnes-Hut tradeoff parameter
0.5
(default) | scalar from 0 through 1
Barnes-Hut tradeoff parameter, specified as a scalar from 0
through 1. Higher values give a faster but less accurate optimization.
Applies only when Algorithm
is 'barneshut'
.
Example: 0.1
Data Types: single
| double
Verbose
— Iterative display
0
(default) | 1
| 2
Iterative display, specified as 0
, 1
,
or 2
. When Verbose
is not 0
, tsne
prints
a summary table of the Kullback-Leibler divergence and the norm of
its gradient every NumPrint
iterations.
When Verbose
is 2
, tsne
also
prints the variances of Gaussian kernels. tsne
uses
these kernels in its computation of the joint probability of X
.
If you see a large difference in the scales of the minimum and maximum
variances, you can sometimes get more suitable results by rescaling X
.
Example: 2
Data Types: single
| double
Output Arguments
Y
— Embedded points
n
-by-NumDimensions
matrix
Embedded points, returned as an n
-by-NumDimensions
matrix.
Each row represents one embedded point. n
is the
number of rows of data X
that do not contain
any NaN
entries. See Plot Results with NaN Input Data.
loss
— Kullback-Leibler divergence
nonnegative scalar
Kullback-Leibler divergence between modeled input and output distributions, returned as a nonnegative scalar. For details, see t-SNE Algorithm.
More About
Custom Distance Function
The syntax of a custom distance function is as follows.
function D2 = distfun(ZI,ZJ)
tsne
passes ZI
and ZJ
to
your function, and your function computes the distance.
ZI
is a 1-by-n vector containing a single row fromX
.ZJ
is an m-by-n matrix containing multiple rows ofX
.
Your function returns D2
, which is an m-by-1
vector of distances. The jth element of D2
is
the distance between the observations ZI
and ZJ(j,:)
.
Tip
If your data are not sparse, then usually the built-in distance functions are faster than a function handle.
Algorithms
tsne
constructs a set of embedded points
in a low-dimensional space whose relative similarities mimic those
of the original high-dimensional points. The embedded points show
the clustering in the original data.
Roughly, the algorithm models the original points as coming from a Gaussian distribution, and the embedded points as coming from a Student’s t distribution. The algorithm tries to minimize the Kullback-Leibler divergence between these two distributions by moving the embedded points.
For details, see t-SNE.
Fast Euclidean Distance Algorithm
The values of the Distance
argument that begin fast
(such as 'fasteuclidean'
and 'fastseuclidean'
)
calculate Euclidean distances using an algorithm that uses extra memory to save
computational time. This algorithm is named "Euclidean Distance Matrix Trick" in Albanie
[1] and elsewhere. Internal
testing shows that this algorithm saves time when the number of predictors is at least 10.
Algorithms starting with 'fast'
do not support sparse data.
To find the matrix D of distances between all the points xi and xj, where each xi has n variables, the algorithm computes distance using the final line in the following equations:
The matrix in the last line of the equations is called the Gram matrix. Computing the set of squared distances is faster, but slightly less numerically stable, when you compute and use the Gram matrix instead of computing the squared distances by squaring and summing. For a discussion, see Albanie [1].
To store the Gram matrix, the software uses a cache with the default size of
1e3
megabytes. You can set the cache size using the
CacheSize
name-value argument. If the value of
CacheSize
is too large or "maximal"
,
tsne
might try to allocate a Gram matrix that exceeds the
available memory. In this case, MATLAB issues an error.
References
[1] Albanie, Samuel. Euclidean Distance Matrix Trick. June, 2019. Available at https://www.robots.ox.ac.uk/%7Ealbanie/notes/Euclidean_distance_trick.pdf.
Version History
Introduced in R2017aR2023a: Fast Euclidean distance using a cache
The 'fasteuclidean'
and
'fastseuclidean'
distance metrics accelerate the computation of
Euclidean distances by using a cache and a different algorithm (see Algorithms). Set
the size of the cache using the CacheSize
name-value argument.
Comando de MATLAB
Ha hecho clic en un enlace que corresponde a este comando de MATLAB:
Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
