evaluateObjectDetection

Evaluate object detection data set against ground truth

Since R2023b

Syntax

metrics = evaluateObjectDetection(detectionResults,groundTruthData)

metrics = evaluateObjectDetection(detectionResults,groundTruthData,threshold)

metrics = evaluateObjectDetection(___,Name=Value)

Description

metrics = evaluateObjectDetection(detectionResults,groundTruthData) evaluates the quality of the object detection results detectionResults against the labeled ground truth groundTruthData and returns various metrics.

metrics = evaluateObjectDetection(detectionResults,groundTruthData,threshold) specifies the overlap threshold for assigning an output bounding box to a ground truth bounding box.

metrics = evaluateObjectDetection(___,Name=Value) specifies one or more name-value arguments, in addition to any combination of input arguments from previous syntaxes, to configure the object detection results evaluation. For example, AdditionalMetrics="AOS" includes average orientation similarity metrics in the output.

Examples

Plot Precision-Recall Curve for Object Detection

Load a table containing images and ground truth bounding box labels. The first column contains the images, and the remaining columns contain the labeled bounding boxes.

data = load("vehicleTrainingData.mat");
trainingData = data.vehicleTrainingData;

Set the value of the dataDir variable as the location where the vehicleTrainingData.mat file is located. Load the test data into a local vehicle data folder.

dataDir = fullfile(toolboxdir("vision"),"visiondata");
trainingData.imageFilename = fullfile(dataDir,trainingData.imageFilename);

Create an imageDatastore using the files from the table.

imds = imageDatastore(trainingData.imageFilename);

Display the first 5 rows of the training data table.

disp(trainingData(1:5,:))

                                                              imageFilename                                                                  vehicle
    _________________________________________________________________________________________________________________________________    ________________

    "/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3146167/build/runnable/matlab/toolbox/vision/visiondata/vehicles/image_00001.jpg"    {[126 78 20 16]}
    "/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3146167/build/runnable/matlab/toolbox/vision/visiondata/vehicles/image_00002.jpg"    {[100 72 35 26]}
    "/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3146167/build/runnable/matlab/toolbox/vision/visiondata/vehicles/image_00003.jpg"    {[ 62 69 26 19]}
    "/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3146167/build/runnable/matlab/toolbox/vision/visiondata/vehicles/image_00004.jpg"    {[ 71 64 22 21]}
    "/mathworks/devel/bat/filer/batfs2566-0/Bdoc26a.3146167/build/runnable/matlab/toolbox/vision/visiondata/vehicles/image_00005.jpg"    {[147 71 25 18]}

Create a boxLabelDatastore using the label columns from the table.

blds = boxLabelDatastore(trainingData(:,2:end));

Load Pretrained Object Detector

Load a pretrained YOLO v2 object detector trained to detect vehicles into the workspace.

vehicleDetector = load("yolov2VehicleDetector.mat");
detector = vehicleDetector.detector;

Evaluate and Plot Object Detection Metrics

Run the detector on the test images. Set the detection threshold to a low value to detect as many objects as possible. This helps you evaluate the detector precision across the full range of recall values.

results = detect(detector,imds,Threshold=0.01);

Use evaluateObjectDetection to compute metrics for evaluating the performance of an object detector.

metrics = evaluateObjectDetection(results,blds);

Return the precision and recall metrics for the vehicle class using the precisionRecall object function.

[recall,precision,scores] = precisionRecall(metrics);
ap = averagePrecision(metrics);

Plot the precision-recall curve for the vehicle class, the only class in the data set. Compute the average precision (AP) using the averagePrecision object function.

figure
plot(recall{1},precision{1})
grid on
title("Average Precision = " + ap);
xlabel("Recall");
ylabel("Precision");

Compute the summary of the object detection metrics for the data set using the summarize object function.

[summaryDataset,summaryClass] = summarize(metrics);
disp(summaryDataset)

    NumObjects    mAPOverlapAvg    mAP0.5
    __________    _____________    _______

       336           0.99096       0.99096

Evaluate Trained ACF Object Detector on Rail Road Signs Data

This example shows how to evaluate the predictions from a trained ACF object detector on a dataset of rail road signs.

The test dataset images are stored as a zipped file attached to this example. Unzip this into the current working directory.

unzip("RRSignsTest.zip")

Load the ground truth for the railroad signs test dataset stored as a groundTruth object.

load("RRSignsGroundTruth.mat", "gTruthTest")

Load the pretrained ACF object detector.

load("RRSignsACFDetector.mat", "acfDetector")

Extract images and bounding boxes from the groundTruth object by using the objectDetectorTrainingData function. The function creates and stores data in the form an image datastore and a labeled bounding box datastore.

[imdsTest, bldsTest] = objectDetectorTrainingData(gTruthTest);

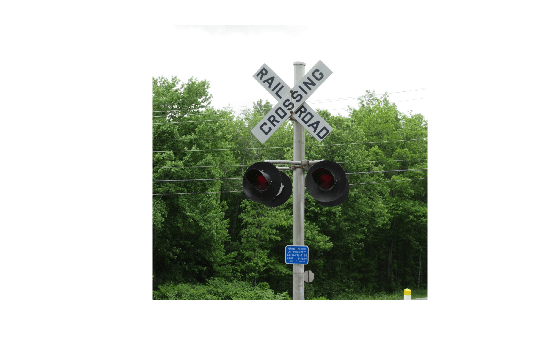

imshow(preview(imdsTest))

Combine the test images and ground truth labels into a single datastore.

testData = combine(imdsTest, bldsTest);

Run the detector on the test images.

testDetections = detect(acfDetector,testData);

Arrange the detector results into a format suitable for object detection evaluation. The ACF object detector does not explicitly predict the class label of an object. This label information needs to be added to the testDetections table.

numImages = height(testDetections);
labels = cell(numImages,1);
className = string(gTruthTest.LabelDefinitions.Name{1});
for i = 1:numImages
    numDetections = numel(testDetections.Scores{i});
    labels{i} = categorical(repmat(className, [numDetections 1]), className);
end

testDetections.Labels = labels;

Evaluate the detector results.

metrics = evaluateObjectDetection(testDetections, testData);

Display the average precision metric, which summarizes the detector's performance over the test dataset. The ACF detector performs well on this dataset with an AP of 0.8.

disp(summarize(metrics, MetricName="AP"))

    NumObjects    mAPOverlapAvg    mAP0.5
    __________    _____________    ______

        10             0.8          0.8

Display the detector performance on individual images.

imageSummary = imageMetrics(metrics);
disp(imageSummary)

    ImageIndex    NumPredictedObjects    NumGroundTruthObjects    TP    FP    FN    Precision    Recall
    __________    ___________________    _____________________    __    __    __    _________    ______

         1                 1                       1              1     0     0          1         1
         2                 1                       1              1     0     0          1         1
         3                 0                       1              0     0     1        NaN         0
         4                 1                       1              1     0     0          1         1
         5                 1                       1              1     0     0          1         1
         6                 1                       1              1     0     0          1         1
         7                 1                       1              1     0     0          1         1
         8                 1                       1              1     0     0          1         1
         9                 1                       1              1     0     0          1         1
        10                 0                       1              0     0     1        NaN         0

The detector makes a mistake on only 2 out of 10 images in the test set, shown on rows 3 and 10.

Evaluate Miss Rate of a YOLO v2 Object Detector

This example shows how to evaluate miss rate of a pretrained YOLO v2 object detector.

Load the Vehicle Ground Truth Data

Load a table containing the vehicle training data. The first column contains the training images, the remaining columns contain the labeled bounding boxes.

data = load('vehicleTrainingData.mat');
trainingData = data.vehicleTrainingData(1:100,:);

Add fullpath to the local vehicle data folder.

dataDir = fullfile(toolboxdir('vision'), 'visiondata');
trainingData.imageFilename = fullfile(dataDir, trainingData.imageFilename);

Create an imageDatastore using the files from the table.

imds = imageDatastore(trainingData.imageFilename);

Create a boxLabelDatastore using the label columns from the table.

blds = boxLabelDatastore(trainingData(:,2:end));

Load YOLOv2 Detector for Detection

Load the detector containing the layerGraph for trainining.

vehicleDetector = load('yolov2VehicleDetector.mat');
detector = vehicleDetector.detector;

Evaluate and Plot the Miss Rate Results

Run the detector with imageDatastore.

results = detect(detector,imds);

Evaluate the results against the ground truth data using the evaluateObjectDetection function. Specify the AdditionalMetrics="LAMR" name-value argument to include miss rate and false positives per image (FPPI) in the returned metrics.

metrics = evaluateObjectDetection(results,blds,AdditionalMetrics="LAMR");

Plot the log-miss-rate/FPPI curve.

figure;
loglog(metrics.ClassMetrics.FPPI{1}, metrics.ClassMetrics.MR{1});
grid on
title(sprintf('Log Average Miss Rate = %.1f', metrics.ClassMetrics.LAMR{1}))

Create Ground Truth and Use AOS Metric To Evaluate Rotated Rectangle Detections

Define ground truth bounding boxes in two images corresponding to a vehicle class. Each row defines a rotated bounding box of the form [xcenter, ycenter, width, height, yaw].

gtbbox_img1 = [
    2 2 10 20 45
    80 80 30 40 15
    ];

gtbbox_img2 = [
    4 4 20 40 90
    160 160 60 80 30
    ];

gtlabel = ["vehicle"
           "vehicle"
           ];
gtlabel = categorical(gtlabel);

Create a table to hold the ground truth data. Each row in the table shows ground truth boxes and labels for one image.

groundTruthData = table({gtbbox_img1;gtbbox_img2},{gtlabel;gtlabel},'VariableNames',{'Boxes','Lables'})

groundTruthData=2×2 table
       Boxes             Lables
    ____________    _________________

    {2×5 double}    {2×1 categorical}
    {2×5 double}    {2×1 categorical}

For each image, define detection results for rotated bounding boxes, scores, and labels.

bbox_img1 = [
    4 4 10 20 20
    50 50 30 10 30
    90 90 40 50 10 ];

bbox_img2 = [
    8 8 20 40 40
    100 100 60 20 60
    180 180 80 100 20 ];

scores = [0.9 0.7 0.8]';

labels = [
    "vehicle"
    "vehicle"
    "vehicle"
    ];
labels = categorical(labels,"vehicle");

Create a table to hold the detection results. Each row in the table shows detected boxes,scores and labels for one image

detectionResults = table({bbox_img1;bbox_img2},...
    {labels;labels},...
    {scores;scores},'VariableNames',{'Boxes','Labels','Scores'})

detectionResults=2×3 table
       Boxes             Labels             Scores
    ____________    _________________    ____________

    {3×5 double}    {3×1 categorical}    {3×1 double}
    {3×5 double}    {3×1 categorical}    {3×1 double}

Evaluate the results against the ground truth data using the evaluateObjectDetection function. Specify the AdditionalMetrics="AOS" name-value argument to include average orientation similarity (AOS) in the returned metrics.

metrics = evaluateObjectDetection(detectionResults,groundTruthData,AdditionalMetrics="AOS");

Display average orientation similarity (AOS) for each class averaged over all the specified overlap thresholds.

meanAOSOverAllOverlaps = metrics.ClassMetrics.AOSOverlapAvg

meanAOSOverAllOverlaps =
0.2600

Display orientation similarity vector for each class.

orientationSimilarity = metrics.ClassMetrics.OrientationSimilarity

orientationSimilarity = 1×1 cell array
    {[1 0.9532 0.4766 0.3177 0.2383 0.1906 0.1589]}

Input Arguments

detectionResults — Predicted object detection results

table

Predicted object detection results, specified as a three-column table with the same number of rows as the number of images in the data set. The table must contain the bounding box, predicted label, and score for each detected object in this format:

Bounding Boxes	Labels	Scores
Predicted 2-D bounding boxes for M objects, specified as an M-by-4 or M-by-5 numeric array. Each 2-D bounding box must be in the format [x y width height] if axis-aligned, or in the format [xcenter ycenter width height yaw] if rotated.	Predicted object labels, specified as an M-by-1 categorical vector.	Predicted scores, specified as an M-by-1 numeric vector.

The order of the elements does not matter. When the datastore returns a cell array with more than three elements, the evaluateObjectDetection function assumes that the first element with an M-by-4 or M-by-5 numeric array contains the bounding boxes, the first element with categorical data contains the label data, and the first element with M-by-1 numeric data contains the scores.

You can create the detection results table using the detect function associated with your object detector.

groundTruthData — Labeled ground truth

datastore | table

Labeled ground truth, specified as a datastore with two outputs or a table with two columns. If you are specifying a table, the number of rows must match the number of images in the data set with these columns:

boxes	labels
Ground truth 2-D bounding boxes for M objects, specified as an M-by-4 or M-by-5 numeric array. Each 2-D bounding box must be in the format [x y width height] if axis-aligned, or in the format [xcenter ycenter width height yaw] if rotated.	Ground truth object labels, specified as an M-by-1 categorical vector.

The order of the elements does not matter. When the datastore returns a cell array with more than three elements, the evaluateObjectDetection function assumes that the first element with an M-by-4 or M-by-5 numeric array contains the bounding boxes, the first element with categorical data contains the label data, and the first element with M-by-1 numeric data contains the scores.

threshold — Overlap threshold

0.5 (default) | numeric scalar | numeric vector

Overlap threshold for assigning a detection to a ground truth box, specified as a numeric scalar in the range [0, 1] or a numeric vector. The overlap ratio is the intersection over union (IoU) ratio of two bounding boxes, or the ratio of the bounding box overlap area to the combined area of the predicted boxes and ground truth (minus the overlap).

IoU = Area of Overlap / (Ground Truth Area + Predicted Box Area – Intersection Area)

When you specify a numeric vector, the evaluateObjectDetection function calculates metrics for each threshold.

Tip

To reduce the number of false negatives, you can lower the IoU threshold at the possible expense of increasing the number of false positives. To learn about the role of IoU in detection evaluation, see Overlap Threshold (Intersection Over Union).

Tip

To optimize model performance for your application, you can evaluate the object detection metrics across a range of overlap thresholds. To learn how to fine-tune object detector performance using multiple overlap thresholds, see Tips.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: evaluateObjectDetection(__,AdditionalMetrics=["LAMR","AOS"]) additionally returns LAMR and AOS.

Verbose — Evaluation progress display toggle

true or 1 (default) | false or 0

Evaluation progress display toggle, specified as a numeric or logical 1 (true) or 0 (false). If you specify Verbose as true, the function displays progress information in the Command Window. The displayed information includes a progress bar, elapsed time, estimated time remaining, and data set metrics.

AdditionalMetrics — Additional metrics

[] (default) | "LAMR" | "AOS" | string array

Additional metrics, specified as "LAMR", "AOS", or a string array. The function returns the specified metrics as additional columns in the ClassMetrics table of the objectDetectionMetrics object, as shown in this table below.

AdditionalMetrics	ClassMetrics
"LAMR"	LAMROverlapAverage: Log-average miss rate for each class, averaged over all specified thresholds, as a numeric scalar. LAMR: Log-average miss rate for each class, computed at each threshold, as a numThresh-by-1 numeric vector. MR: Miss rate vector for each class as a numThresh-by-numPredictions matrix, where numPredictions is the number of predicted objects. FPPI: False positives per image vector for each class as a numThresh-by-numPredictions matrix.
"AOS"	AOSOverlapAvg: Average orientation similarity (AOS) for each class averaged over all the specified overlap thresholds, as a numeric scalar. AOS: Average orientation (AOS) similarity for each class computed at each overlap threshold as a numThresh-by-1 numeric vector. OrientationSimilarity: Orientation similarity vector for each class as a numThresh-by-(numPredictions+1) matrix.

To specify "AOS" as an additional metric, your input data must contain rotated bounding boxes.

Output Arguments

metrics — Object detection metrics

objectDetectionMetrics object

Object detection metrics, returned as an objectDetectionMetrics object. The OverlapThreshold property of the object corresponds to the value of the threshold argument.

More About

Overlap Threshold (Intersection Over Union)

Use overlap (or IoU) threshold to determine whether a detection is a true positive or false positive.

A detection is a true positive (TP) when both of these conditions are met:

• The predicted class matches the class of a ground truth (indicated by the confidence score exceeding the confidence threshold).

• The predicted bounding box has an IoU greater than or equal to the specified overlap threshold.

A detection is a false positive (FP) when at least one of these conditions is met:

• The predicted class does not match the class of a ground truth.

• The predicted bounding box has an IoU less than the specified overlap threshold.

A missed detection is a false negative (FN) when one or more of these conditions is met:

• The confidence score of the detection is lower than the confidence score threshold, resulting in a missed detection.

• The detection has an IoU less than the specified threshold, resulting in the predicted bounding box does not sufficiently overlapping with the ground truth, leading to the detection being discarded.

Quantify the accuracy of an object detector on a particular dataset by evaluating the overlap between the predicted bounding boxes and the ground truth bounding boxes.

Tips

To get started with evaluating object detector performance using various metrics such as precision-recall, average precision, and confusion matrix, see Evaluate Object Detector Performance.

To evaluate model performance across different levels of localization accuracy and fine-tune an object detector, compute metrics at multiple overlap (IoU) thresholds. Overlap thresholds vary typically from 0.5 to 0.95 during evaluation. For example, set the overlap threshold value to 0.5 to accept moderate overlap accuracy, and set the value to 0.95 to ensure very high localization accuracy. There are many ways to use the overlap threshold to tune object detector performance.

• By evaluating common metrics, such as precision and recall, at different overlap thresholds, you can evaluate the tradeoff between detecting more objects (higher recall) and ensuring those detections are accurate (higher precision).

• By evaluating model performance at a lower overlap threshold, such as 0.5, and at higher thresholds, such as 0.95, you can determine how good the detector is at identifying objects (detection) at the expense of precise localization (bounding box accuracy).

• By computing metrics such as the mean average precision (mAP) over multiple overlap thresholds, you can produce a single performance figure that accounts for both detection and localization accuracy, enabling you to compare different detection models.

To learn how to compute metrics at a range of overlap thresholds to tune detector performance, see the "Precision and Recall for a Single Class" section of the Multiclass Object Detection Using YOLO v2 Deep Learning example.

Version History

Introduced in R2023b

R2026a: Evaluate per-image object detection metrics

To evaluate the per-image object detection metrics for all images or a subset of images in the data set, use the imageMetrics object function.

To update your code to compute per-image metrics, replace instances of the ImageMetrics property with the imageMetrics object function. For an example, see theMulticlass Object Detection Using YOLO v2 Deep Learning example.

R2023b: Recommended over evaluateDetectionPrecision, evaluateDetectionMissRate, evaluateDetectionAOS

The evaluateObjectDetection function enables you to simultaneously calculate the average precision, miss rate, and AOS (if applicable) to evaluate detector performance. Therefore, evaluateObjectDetection is recommended over evaluateDetectionPrecision, evaluateDetectionMissRate, and evaluateDetectionAOS, which will be removed in a future release. To update your code, ensure that your ground truth data is in the correct format. See the groundTruthData argument for more details.

evaluateObjectDetection improves on evaluateDetectionPrecision by enabling you to compute the object detection performance metrics for the entire data set over all classes and at specified overlap thresholds, use rotated bounding boxes, and calculate the confusion matrix. The corresponding objectDetectionMetrics object also enables you to evaluate object detection metrics across various object size ranges using the metricsByArea function.
