# semanticseg

Semantic image segmentation using deep learning

## Syntax

``C = semanticseg(I,network)``
``[C,score,allScores] = semanticseg(I,network)``
``[___] = semanticseg(I,network,roi)``
``pxds = semanticseg(ds,network)``
``[___] = semanticseg(___,Name,Value)``

## Description

example

````C = semanticseg(I,network)` returns a semantic segmentation of the input image using deep learning. The input `network` must be either a `SeriesNetwork` or `DAGNetwork` object.```
````[C,score,allScores] = semanticseg(I,network)` returns a semantic segmentation of the input image with the classification scores for each categorical label in `C`. The function returns the scores in an array that corresponds to each pixel or voxel in the input image. `allScores` contains the scores for all label categories that the input network can classify.```
````[___] = semanticseg(I,network,roi)` returns a semantic segmentation for a rectangular subregion of the input image.```
````pxds = semanticseg(ds,network)` returns the semantic segmentation for a collection of images in `ds`, a datastore object `ds`.The function supports parallel computing using multiple MATLAB® workers. You can enable parallel computing using the Computer Vision Toolbox Preferences dialog.```
````[___] = semanticseg(___,Name,Value)` returns semantic segmentation with additional options specified by one or more name-value pair arguments.```

## Examples

collapse all

Overlay segmentation results on an image and display the results.

```data = load('triangleSegmentationNetwork'); net = data.net```
```net = SeriesNetwork with properties: Layers: [10x1 nnet.cnn.layer.Layer] InputNames: {'imageinput'} OutputNames: {'classoutput'} ```

List the network layers.

`net.Layers`
```ans = 10x1 Layer array with layers: 1 'imageinput' Image Input 32x32x1 images with 'zerocenter' normalization 2 'conv_1' Convolution 64 3x3x1 convolutions with stride [1 1] and padding [1 1 1 1] 3 'relu_1' ReLU ReLU 4 'maxpool' Max Pooling 2x2 max pooling with stride [2 2] and padding [0 0 0 0] 5 'conv_2' Convolution 64 3x3x64 convolutions with stride [1 1] and padding [1 1 1 1] 6 'relu_2' ReLU ReLU 7 'transposed-conv' Transposed Convolution 64 4x4x64 transposed convolutions with stride [2 2] and cropping [1 1 1 1] 8 'conv_3' Convolution 2 1x1x64 convolutions with stride [1 1] and padding [0 0 0 0] 9 'softmax' Softmax softmax 10 'classoutput' Pixel Classification Layer Class weighted cross-entropy loss with classes 'triangle' and 'background' ```

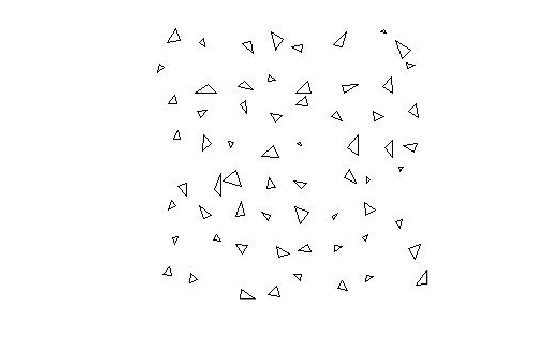

Read and display the test image.

```I = imread('triangleTest.jpg'); figure imshow(I)```

Perform semantic image segmentation.

`[C,scores] = semanticseg(I,net);`

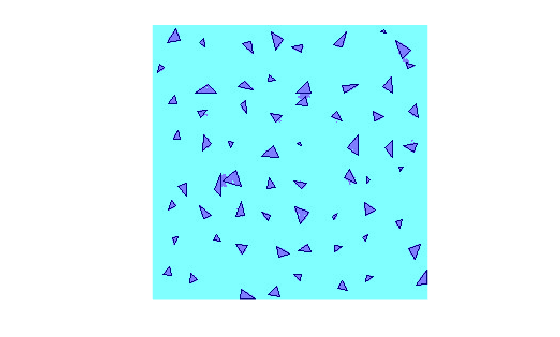

Overlay segmentation results on the image and display the results.

```B = labeloverlay(I, C); figure imshow(B)```

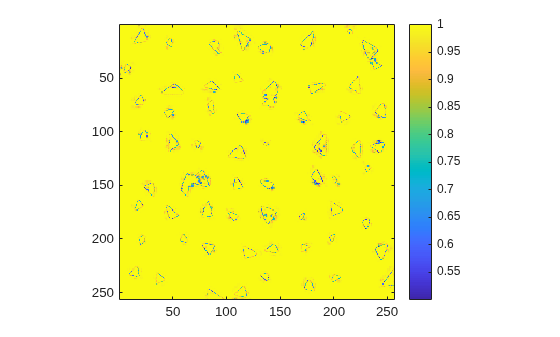

Display the classification scores.

```figure imagesc(scores) axis square colorbar```

Create a binary mask with only the triangles.

```BW = C == 'triangle'; figure imshow(BW)```

Run semantic segmentation on a test set of images and compare the results against ground truth data.

```data = load('triangleSegmentationNetwork'); net = data.net;```

Load test images using `imageDatastore`.

```dataDir = fullfile(toolboxdir('vision'),'visiondata','triangleImages'); testImageDir = fullfile(dataDir,'testImages'); imds = imageDatastore(testImageDir)```
```imds = ImageDatastore with properties: Files: { ' .../toolbox/vision/visiondata/triangleImages/testImages/image_001.jpg'; ' .../toolbox/vision/visiondata/triangleImages/testImages/image_002.jpg'; ' .../toolbox/vision/visiondata/triangleImages/testImages/image_003.jpg' ... and 97 more } AlternateFileSystemRoots: {} ReadSize: 1 Labels: {} ReadFcn: @readDatastoreImage ```

```testLabelDir = fullfile(dataDir,'testLabels'); classNames = ["triangle" "background"]; pixelLabelID = [255 0]; pxdsTruth = pixelLabelDatastore(testLabelDir,classNames,pixelLabelID);```

Run semantic segmentation on all of the test images.

`pxdsResults = semanticseg(imds,net,'MiniBatchSize',32,'WriteLocation',tempdir);`
```Running semantic segmentation network ------------------------------------- * Processed 100 images. ```

Compare the results against the ground truth.

`metrics = evaluateSemanticSegmentation(pxdsResults,pxdsTruth)`
```Evaluating semantic segmentation results ---------------------------------------- * Selected metrics: global accuracy, class accuracy, IoU, weighted IoU, BF score. * Processed 100 images. * Finalizing... Done. * Data set metrics: GlobalAccuracy MeanAccuracy MeanIoU WeightedIoU MeanBFScore ______________ ____________ _______ ___________ ___________ 0.90624 0.95085 0.61588 0.87529 0.40652 ```
```metrics = semanticSegmentationMetrics with properties: ConfusionMatrix: [2x2 table] NormalizedConfusionMatrix: [2x2 table] DataSetMetrics: [1x5 table] ClassMetrics: [2x3 table] ImageMetrics: [100x5 table] ```

Define and create a custom pixel classification layer that uses Dice loss.

You can use this layer to train semantic segmentation networks. To learn more about creating custom deep learning layers, see Define Custom Deep Learning Layers (Deep Learning Toolbox).

Dice Loss

The Dice loss is based on the Sørensen-Dice similarity coefficient for measuring the overlap between two segmented images. The generalized Dice loss [1,2] $\mathit{L}$ for between one image $\mathit{Y}$ and the corresponding ground truth $\mathit{T}$ is given by

$\mathit{L}=1-\frac{2{\sum }_{\mathit{k}=1}^{\mathit{K}}{\mathit{w}}_{\mathit{k}}{\sum }_{\mathit{m}=1}^{\mathit{M}}{\mathit{Y}}_{\mathit{km}}{\mathit{T}}_{\mathit{km}}}{{\sum }_{\mathit{k}=1}^{\mathit{K}}{\mathit{w}}_{\mathit{k}}{\sum }_{\mathit{m}=1}^{\mathit{M}}{\mathit{Y}}_{\mathit{km}}^{2}+{\mathit{T}}_{\mathit{km}}^{2}}$ ,

where $\mathit{K}$ is the number of classes, $\mathit{M}$ is the number of elements along the first two dimensions of $\mathit{Y}$, and${\mathit{w}}_{\mathit{k}}$ is a class-specific weighting factor that controls the contribution each class makes to the loss. ${\mathit{w}}_{\mathit{k}}$ is typically the inverse area of the expected region:

`${\mathit{w}}_{\mathit{k}}=\frac{1}{{\left(\sum _{\mathit{m}=1}^{\mathit{M}}{\mathit{T}}_{\mathit{km}}\right)}^{2}}$`

This weighting helps counter the influence of larger regions on the Dice score and makes it easier for the network to learn how to segment smaller regions.

Classification Layer Template

Copy the classification layer template into a new file in MATLAB®. This template outlines the structure of a classification layer and includes the functions that define the layer behavior. The rest of the example shows how to complete the `dicePixelClassificationLayer`.

```classdef dicePixelClassificationLayer < nnet.layer.ClassificationLayer properties % Optional properties end methods function loss = forwardLoss(layer, Y, T) % Layer forward loss function goes here. end function dLdY = backwardLoss(layer, Y, T) % Layer backward loss function goes here. end end end ```

Declare Layer Properties

By default, custom output layers have the following properties:

• `Name` — Layer name, specified as a character vector or a string scalar. To include this layer in a layer graph, you must specify a nonempty unique layer name. If you train a series network with this layer and `Name` is set to `''`, then the software automatically assigns a name at training time.

• `Description` — One-line description of the layer, specified as a character vector or a string scalar. This description appears when the layer is displayed in a `Layer` array. If you do not specify a layer description, then the software displays the layer class name.

• `Type` — Type of the layer, specified as a character vector or a string scalar. The value of `Type` appears when the layer is displayed in a `Layer` array. If you do not specify a layer type, then the software displays `'Classification layer'` or `'Regression layer'`.

Custom classification layers also have the following property:

• `Classes` — Classes of the output layer, specified as a categorical vector, string array, cell array of character vectors, or `'auto'`. If `Classes` is `'auto'`, then the software automatically sets the classes at training time. If you specify a string array or cell array of character vectors `str`, then the software sets the classes of the output layer to `categorical(str,str)`. The default value is `'auto'`.

If the layer has no other properties, then you can omit the `properties` section.

The Dice loss requires a small constant value to prevent division by zero. Specify the property, `Epsilon`, to hold this value.

```classdef dicePixelClassificationLayer < nnet.layer.ClassificationLayer properties(Constant) % Small constant to prevent division by zero. Epsilon = 1e-8; end ... end ```

Create Constructor Function

Create the function that constructs the layer and initializes the layer properties. Specify any variables required to create the layer as inputs to the constructor function.

Specify an optional input argument name to assign to the `Name` property at creation.

``` function layer = dicePixelClassificationLayer(name) % layer = dicePixelClassificationLayer(name) creates a Dice % pixel classification layer with the specified name. % Set layer name. layer.Name = name; % Set layer description. layer.Description = 'Dice loss'; end ```

Create Forward Loss Function

Create a function named `forwardLoss` that returns the weighted cross entropy loss between the predictions made by the network and the training targets. The syntax for `forwardLoss` is `loss = forwardLoss(layer, Y, T)`, where `Y` is the output of the previous layer and `T` represents the training targets.

For semantic segmentation problems, the dimensions of `T` match the dimension of `Y`, where `Y` is a 4-D array of size `H`-by-`W`-by-`K`-by-`N`, where `K` is the number of classes, and `N` is the mini-batch size.

The size of `Y` depends on the output of the previous layer. To ensure that `Y` is the same size as `T`, you must include a layer that outputs the correct size before the output layer. For example, to ensure that `Y` is a 4-D array of prediction scores for `K` classes, you can include a fully connected layer of size `K` or a convolutional layer with `K` filters followed by a softmax layer before the output layer.

``` function loss = forwardLoss(layer, Y, T) % loss = forwardLoss(layer, Y, T) returns the Dice loss between % the predictions Y and the training targets T. % Weights by inverse of region size. W = 1 ./ sum(sum(T,1),2).^2; intersection = sum(sum(Y.*T,1),2); union = sum(sum(Y.^2 + T.^2, 1),2); numer = 2*sum(W.*intersection,3) + layer.Epsilon; denom = sum(W.*union,3) + layer.Epsilon; % Compute Dice score. dice = numer./denom; % Return average Dice loss. N = size(Y,4); loss = sum((1-dice))/N; end ```

Create Backward Loss Function

Create the backward loss function that returns the derivatives of the Dice loss with respect to the predictions `Y`. The syntax for `backwardLoss` is `loss = backwardLoss(layer, Y, T)`, where `Y` is the output of the previous layer and `T` represents the training targets.

The dimensions of `Y` and `T` are the same as the inputs in `forwardLoss`.

``` function dLdY = backwardLoss(layer, Y, T) % dLdY = backwardLoss(layer, Y, T) returns the derivatives of % the Dice loss with respect to the predictions Y. % Weights by inverse of region size. W = 1 ./ sum(sum(T,1),2).^2; intersection = sum(sum(Y.*T,1),2); union = sum(sum(Y.^2 + T.^2, 1),2); numer = 2*sum(W.*intersection,3) + layer.Epsilon; denom = sum(W.*union,3) + layer.Epsilon; N = size(Y,4); dLdY = (2*W.*Y.*numer./denom.^2 - 2*W.*T./denom)./N; end ```

Completed Layer

The completed layer is provided in `dicePixelClassificationLayer.m`.

```classdef dicePixelClassificationLayer < nnet.layer.ClassificationLayer % This layer implements the generalized Dice loss function for training % semantic segmentation networks. properties(Constant) % Small constant to prevent division by zero. Epsilon = 1e-8; end methods function layer = dicePixelClassificationLayer(name) % layer = dicePixelClassificationLayer(name) creates a Dice % pixel classification layer with the specified name. % Set layer name. layer.Name = name; % Set layer description. layer.Description = 'Dice loss'; end function loss = forwardLoss(layer, Y, T) % loss = forwardLoss(layer, Y, T) returns the Dice loss between % the predictions Y and the training targets T. % Weights by inverse of region size. W = 1 ./ sum(sum(T,1),2).^2; intersection = sum(sum(Y.*T,1),2); union = sum(sum(Y.^2 + T.^2, 1),2); numer = 2*sum(W.*intersection,3) + layer.Epsilon; denom = sum(W.*union,3) + layer.Epsilon; % Compute Dice score. dice = numer./denom; % Return average Dice loss. N = size(Y,4); loss = sum((1-dice))/N; end function dLdY = backwardLoss(layer, Y, T) % dLdY = backwardLoss(layer, Y, T) returns the derivatives of % the Dice loss with respect to the predictions Y. % Weights by inverse of region size. W = 1 ./ sum(sum(T,1),2).^2; intersection = sum(sum(Y.*T,1),2); union = sum(sum(Y.^2 + T.^2, 1),2); numer = 2*sum(W.*intersection,3) + layer.Epsilon; denom = sum(W.*union,3) + layer.Epsilon; N = size(Y,4); dLdY = (2*W.*Y.*numer./denom.^2 - 2*W.*T./denom)./N; end end end ```

GPU Compatibility

For GPU compatibility, the layer functions must support inputs and return outputs of type `gpuArray`. Any other functions used by the layer must do the same.

The MATLAB functions used in `forwardLoss` and `backwardLoss` in `dicePixelClassificationLayer` all support `gpuArray` inputs, so the layer is GPU compatible.

Check Output Layer Validity

Create an instance of the layer.

`layer = dicePixelClassificationLayer('dice');`

Check the layer validity of the layer using `checkLayer`. Specify the valid input size to be the size of a single observation of typical input to the layer. The layer expects a `H`-by-`W`-by-`K`-by-`N` array inputs, where `K` is the number of classes and `N` is the number of observations in the mini-batch.

```numClasses = 2; validInputSize = [4 4 numClasses]; checkLayer(layer,validInputSize, 'ObservationDimension',4)```
```Running nnet.checklayer.OutputLayerTestCase .......... ....... Done nnet.checklayer.OutputLayerTestCase __________ Test Summary: 17 Passed, 0 Failed, 0 Incomplete, 0 Skipped. Time elapsed: 1.6227 seconds. ```

The test summary reports the number of passed, failed, incomplete, and skipped tests.

Use Custom Layer in Semantic Segmentation Network

Create a semantic segmentation network that uses the `dicePixelClassificationLayer`.

```layers = [ imageInputLayer([32 32 1]) convolution2dLayer(3,64,'Padding',1) reluLayer maxPooling2dLayer(2,'Stride',2) convolution2dLayer(3,64,'Padding',1) reluLayer transposedConv2dLayer(4,64,'Stride',2,'Cropping',1) convolution2dLayer(1,2) softmaxLayer dicePixelClassificationLayer('dice')]```
```layers = 10x1 Layer array with layers: 1 '' Image Input 32x32x1 images with 'zerocenter' normalization 2 '' Convolution 64 3x3 convolutions with stride [1 1] and padding [1 1 1 1] 3 '' ReLU ReLU 4 '' Max Pooling 2x2 max pooling with stride [2 2] and padding [0 0 0 0] 5 '' Convolution 64 3x3 convolutions with stride [1 1] and padding [1 1 1 1] 6 '' ReLU ReLU 7 '' Transposed Convolution 64 4x4 transposed convolutions with stride [2 2] and output cropping [1 1] 8 '' Convolution 2 1x1 convolutions with stride [1 1] and padding [0 0 0 0] 9 '' Softmax softmax 10 'dice' Classification Output Dice loss ```

Load training data for semantic segmentation using `imageDatastore` and `pixelLabelDatastore`.

```dataSetDir = fullfile(toolboxdir('vision'),'visiondata','triangleImages'); imageDir = fullfile(dataSetDir,'trainingImages'); labelDir = fullfile(dataSetDir,'trainingLabels'); imds = imageDatastore(imageDir); classNames = ["triangle" "background"]; labelIDs = [255 0]; pxds = pixelLabelDatastore(labelDir, classNames, labelIDs);```

Associate the image and pixel label data using `pixelLabelImageDatastore`.

`ds = pixelLabelImageDatastore(imds,pxds);`

Set the training options and train the network.

```options = trainingOptions('sgdm', ... 'InitialLearnRate',1e-2, ... 'MaxEpochs',100, ... 'LearnRateDropFactor',1e-1, ... 'LearnRateDropPeriod',50, ... 'LearnRateSchedule','piecewise', ... 'MiniBatchSize',128); net = trainNetwork(ds,layers,options);```
```Training on single GPU. Initializing image normalization. |========================================================================================| | Epoch | Iteration | Time Elapsed | Mini-batch | Mini-batch | Base Learning | | | | (hh:mm:ss) | Accuracy | Loss | Rate | |========================================================================================| | 1 | 1 | 00:00:03 | 27.89% | 0.8346 | 0.0100 | | 50 | 50 | 00:00:34 | 89.67% | 0.6384 | 0.0100 | | 100 | 100 | 00:01:09 | 94.35% | 0.5024 | 0.0010 | |========================================================================================| ```

Evaluate the trained network by segmenting a test image and displaying the segmentation result.

```I = imread('triangleTest.jpg'); [C,scores] = semanticseg(I,net); B = labeloverlay(I,C); figure imshow(imtile({I,B}))```

Train a semantic segmentation network using dilated convolutions.

A semantic segmentation network classifies every pixel in an image, resulting in an image that is segmented by class. Applications for semantic segmentation include road segmentation for autonomous driving and cancer cell segmentation for medical diagnosis. To learn more, see Getting Started With Semantic Segmentation Using Deep Learning.

Semantic segmentation networks like DeepLab [1] make extensive use of dilated convolutions (also known as atrous convolutions) because they can increase the receptive field of the layer (the area of the input which the layers can see) without increasing the number of parameters or computations.

The example uses a simple dataset of 32-by-32 triangle images for illustration purposes. The dataset includes accompanying pixel label ground truth data. Load the training data using an `imageDatastore` and a `pixelLabelDatastore`.

```dataFolder = fullfile(toolboxdir('vision'),'visiondata','triangleImages'); imageFolderTrain = fullfile(dataFolder,'trainingImages'); labelFolderTrain = fullfile(dataFolder,'trainingLabels');```

Create an `imageDatastore` for the images.

`imdsTrain = imageDatastore(imageFolderTrain);`

Create a `pixelLabelDatastore` for the ground truth pixel labels.

```classNames = ["triangle" "background"]; labels = [255 0]; pxdsTrain = pixelLabelDatastore(labelFolderTrain,classNames,labels)```
```pxdsTrain = PixelLabelDatastore with properties: Files: {200×1 cell} ClassNames: {2×1 cell} ReadSize: 1 ReadFcn: @readDatastoreImage AlternateFileSystemRoots: {} ```

Create Semantic Segmentation Network

This example uses a simple semantic segmentation network based on dilated convolutions.

Create a data source for training data and get the pixel counts for each label.

```pximdsTrain = pixelLabelImageDatastore(imdsTrain,pxdsTrain); tbl = countEachLabel(pximdsTrain)```
```tbl=2×3 table Name PixelCount ImagePixelCount ____________ __________ _______________ 'triangle' 10326 2.048e+05 'background' 1.9447e+05 2.048e+05 ```

The majority of pixel labels are for background. This class imbalance biases the learning process in favor of the dominant class. To fix this, use class weighting to balance the classes. You can use several methods to compute class weights. One common method is inverse frequency weighting where the class weights are the inverse of the class frequencies. This method increases the weight given to under represented classes. Calculate the class weights using inverse frequency weighting.

```numberPixels = sum(tbl.PixelCount); frequency = tbl.PixelCount / numberPixels; classWeights = 1 ./ frequency;```

Create a network for pixel classification by using an image input layer with an input size corresponding to the size of the input images. Next, specify three blocks of convolution, batch normalization, and ReLU layers. For each convolutional layer, specify 32 3-by-3 filters with increasing dilation factors and pad the inputs so they are the same size as the outputs by setting the `'Padding'` option to `'same'`. To classify the pixels, include a convolutional layer with K 1-by-1 convolutions, where K is the number of classes, followed by a softmax layer and a `pixelClassificationLayer` with the inverse class weights.

```inputSize = [32 32 1]; filterSize = 3; numFilters = 32; numClasses = numel(classNames); layers = [ imageInputLayer(inputSize) convolution2dLayer(filterSize,numFilters,'DilationFactor',1,'Padding','same') batchNormalizationLayer reluLayer convolution2dLayer(filterSize,numFilters,'DilationFactor',2,'Padding','same') batchNormalizationLayer reluLayer convolution2dLayer(filterSize,numFilters,'DilationFactor',4,'Padding','same') batchNormalizationLayer reluLayer convolution2dLayer(1,numClasses) softmaxLayer pixelClassificationLayer('Classes',classNames,'ClassWeights',classWeights)];```

Train Network

Specify the training options.

```options = trainingOptions('sgdm', ... 'MaxEpochs', 100, ... 'MiniBatchSize', 64, ... 'InitialLearnRate', 1e-3);```

Train the network using `trainNetwork`.

`net = trainNetwork(pximdsTrain,layers,options);`
```Training on single GPU. Initializing image normalization. |========================================================================================| | Epoch | Iteration | Time Elapsed | Mini-batch | Mini-batch | Base Learning | | | | (hh:mm:ss) | Accuracy | Loss | Rate | |========================================================================================| | 1 | 1 | 00:00:00 | 67.54% | 0.7098 | 0.0010 | | 17 | 50 | 00:00:03 | 84.60% | 0.3851 | 0.0010 | | 34 | 100 | 00:00:06 | 89.85% | 0.2536 | 0.0010 | | 50 | 150 | 00:00:09 | 93.39% | 0.1959 | 0.0010 | | 67 | 200 | 00:00:11 | 95.89% | 0.1559 | 0.0010 | | 84 | 250 | 00:00:14 | 97.29% | 0.1188 | 0.0010 | | 100 | 300 | 00:00:18 | 98.28% | 0.0970 | 0.0010 | |========================================================================================| ```

Test Network

Load the test data. Create an `imageDatastore` for the images. Create a `pixelLabelDatastore` for the ground truth pixel labels.

```imageFolderTest = fullfile(dataFolder,'testImages'); imdsTest = imageDatastore(imageFolderTest); labelFolderTest = fullfile(dataFolder,'testLabels'); pxdsTest = pixelLabelDatastore(labelFolderTest,classNames,labels);```

Make predictions using the test data and trained network.

`pxdsPred = semanticseg(imdsTest,net,'WriteLocation',tempdir);`
```Running semantic segmentation network ------------------------------------- * Processing 100 images. * Progress: 100.00% ```

Evaluate the prediction accuracy using `evaluateSemanticSegmentation`.

`metrics = evaluateSemanticSegmentation(pxdsPred,pxdsTest);`
```Evaluating semantic segmentation results ---------------------------------------- * Selected metrics: global accuracy, class accuracy, IoU, weighted IoU, BF score. * Processing 100 images... [==================================================] 100% Elapsed time: 00:00:00 Estimated time remaining: 00:00:00 * Finalizing... Done. * Data set metrics: GlobalAccuracy MeanAccuracy MeanIoU WeightedIoU MeanBFScore ______________ ____________ _______ ___________ ___________ 0.98334 0.99107 0.85869 0.97109 0.68197 ```

For more information on evaluating semantic segmentation networks, see `evaluateSemanticSegmentation`.

Segment New Image

Read and display the test image `triangleTest.jpg`.

```imgTest = imread('triangleTest.jpg'); figure imshow(imgTest)```

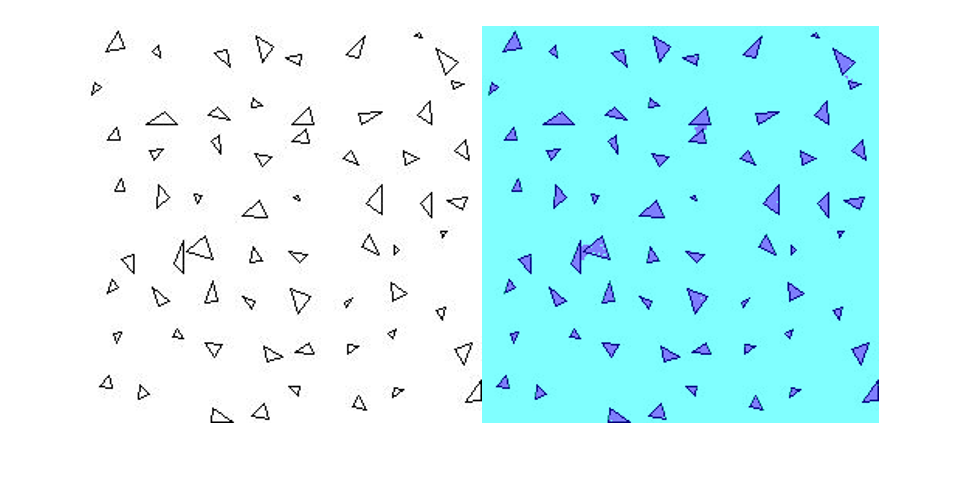

Segment the test image using `semanticseg` and display the results using `labeloverlay`.

```C = semanticseg(imgTest,net); B = labeloverlay(imgTest,C); figure imshow(B)```

## Input Arguments

collapse all

Input image, specified as one of the following.

Image TypeData Format
Single 2-D grayscale image2-D matrix of size H-by-W
Single 2-D color image or 2-D multispectral image3-D array of size H-by-W-by-C. The number of color channels C is 3 for color images.
Series of P 2-D images4-D array of size H-by-W-by-C-by-P. The number of color channels C is 1 for grayscale images and 3 for color images.
Single 3-D grayscale image with depth D3-D array of size H-by-W-by-D
Single 3-D color image or 3-D multispectral image4-D array of size H-by-W-by-D-by-C. The number of color channels C is 3 for color images.
Series of P 3-D images5-D array of size H-by-W-by-D-by-C-by-P

The input image can also be a `gpuArray` containing one of the preceding image types (requires Parallel Computing Toolbox™).

Data Types: `uint8` | `uint16` | `int16` | `double` | `single` | `logical`

Network, specified as either a `SeriesNetwork` or a `DAGNetwork` object.

Region of interest, specified as one of the following.

Image TypeROI Format
2-D image4-element vector of the form [x,y,width,height]
3-D image6-element vector of the form [x,y,z,width,height,depth]

The vector defines a rectangular or cuboidal region of interest fully contained in the input image. Image pixels outside the region of interest are assigned the <`undefined`> categorical label. If the input image consists of a series of images, then `semanticseg` applies the same `roi` to all images in the series.

Collection of images, specified as a datastore. The `read` function of the datastore must return a numeric array, cell array, or table. For cell arrays or tables with multiple columns, the function processes only the first column.

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `'ExecutionEnvironment'`,`'gpu'`

Returned segmentation type, specified as `'categorical'`, `'double'`, or `'uint8'`. When you specify `'double'` or `'uint8'`, the function returns the segmentation results as a label array containing label IDs. The IDs are integer values that correspond to the class names defined in the classification layer used in the input network.

You cannot use the `OutputType` property with an `ImageDatastore` object input.

Group of images, specified as an integer. Images are grouped and processed together as a batch. Batches are used for processing a large collection of images and they improve computational efficiency. Increasing the '`MiniBatchSize`' value increases the efficiency, but it also takes up more memory.

Hardware resource for processing images with a network, specified as `'auto'`, `'gpu'`, or `'cpu'`.

ExecutionEnvironmentDescription
`'auto'`Use a GPU if available. Otherwise, use the CPU. The use of GPU requires Parallel Computing Toolbox and a CUDA® enabled NVIDIA® GPU with compute capability 3.0 or higher.
`'gpu'`Use the GPU. If a suitable GPU is not available, the function returns an error message.
`'cpu'`Use the CPU.

Performance optimization, specified as `'auto'`, `'mex'`, or `'none'`.

AccelerationDescription
`'auto'`Automatically apply a number of optimizations suitable for the input network and hardware resource.
`'mex'`Compile and execute a MEX function. This option is available when using a GPU only. Using a GPU requires Parallel Computing Toolbox and a CUDA enabled NVIDIA GPU with compute capability 3.0 or higher. If Parallel Computing Toolbox or a suitable GPU is not available, then the function returns an error.
`'none'`Disable all acceleration.

The default option is `'auto'`. If you use the `'auto'` option, MATLAB does not ever generate a MEX function.

Using the `'Acceleration'` options `'auto'` and `'mex'` can offer performance benefits, but at the expense of an increased initial run time. Subsequent calls with compatible parameters are faster. Use performance optimization when you plan to call the function multiple times using new input data.

The `'mex'` option generates and executes a MEX function based on the network and parameters used in the function call. You can have several MEX functions associated with a single network at one time. Clearing the network variable also clears any MEX functions associated with that network.

The `'mex'` option is only available when you are using a GPU. You must also have a C/C++ compiler installed. For setup instructions, see MEX Setup (GPU Coder).

`'mex'` acceleration does not support all layers. For a list of supported layers, see Supported Layers (GPU Coder).

Folder location, specified as `pwd` (your current working folder), a string scalar, or a character vector. The specified folder must exist and have write permissions.

This property applies only when using an `ImageDatastore` object input.

Prefix applied to output file names, specified as a string scalar or character vector. The image files are named as follows:

• `prefix_N.png`, where `N` corresponds to the index of the input image file, `imds.Files`(N).

This property applies only when using an `ImageDatastore` object input.

Display progress information, specified as `'true'` or `'false'`.

This property applies only when using an `ImageDatastore` object input.

## Output Arguments

collapse all

Categorical labels, returned as a categorical array. The categorical array relates a label to each pixel or voxel in the input image. The images returned by `readall`(`datastore`) have a one-to-one correspondence with the categorical matrices returned by `readall`(`pixelLabelDatastore`). The elements of the label array correspond to the pixel or voxel elements of the input image. If you select an ROI, then the labels are limited to the area within the ROI. Image pixels and voxels outside the region of interest are assigned the <`undefined`> categorical label.

Image TypeCategorical Label Format
Single 2-D image2-D matrix of size H-by-W. Element `C`(i,j) is the categorical label assigned to the pixel `I`(i,j).
Series of P 2-D images3-D array of size H-by-W-by-P. Element `C`(i,j,p) is the categorical label assigned to the pixel `I`(i,j,p).
Single 3-D image3-D array of size H-by-W-by-D. Element `C`(i,j,k) is the categorical label assigned to the voxel `I`(i,j,k).
Series of P 3-D images4-D array of size H-by-W-by-D-by-P. Element `C`(i,j,k,p) is the categorical label assigned to the voxel `I`(i,j,k,p).

Confidence scores for each categorical label in `C`, returned as an array of values between `0` and `1`. The scores represents the confidence in the predicted labels `C`. Higher score values indicate a higher confidence in the predicted label.

Image TypeScore Format
Single 2-D image2-D matrix of size H-by-W. Element `score`(i,j) is the classification score of the pixel `I`(i,j).
Series of P 2-D images3-D array of size H-by-W-by-P. Element `score`(i,j,p) is the classification score of the pixel `I`(i,j,p).
Single 3-D image3-D array of size H-by-W-by-D. Element `score`(i,j,k) is the classification score of the voxel `I`(i,j,k).
Series of P 3-D images4-D array of size H-by-W-by-D-by-P. Element `score`(i,j,k,p) is the classification score of the voxel `I`(i,j,k,p).

Scores for all label categories that the input network can classify, returned as a numeric array. The format of the array is described in the following table. L represents the total number of label categories.

Image TypeAll Scores Format
Single 2-D image3-D array of size H-by-W-by-L. Element `allScores`(i,j,q) is the score of the qth label at the pixel `I`(i,j).
Series of P 2-D images4-D array of size H-by-W-by-L-by-P. Element `allScores`(i,j,q,p) is the score of the qth label at the pixel `I`(i,j,p).
Single 3-D image4-D array of size H-by-W-by-D-by-L. Element `allScores`(i,j,k,q) is the score of the qth label at the voxel `I`(i,j,k).
Series of P 3-D images5-D array of size H-by-W-by-D-by-L-by-P. Element `allScores`(i,j,k,q,p) is the score of the qth label at the voxel `I`(i,j,k,p).

Semantic segmentation results, returned as a `pixelLabelDatastore` object. The object contains the semantic segmentation results for all the images contained in the `ds` input object. The result for each image is saved as separate `uint8` label matrices of PNG images. You can use `read`(`pxds`) to return the categorical labels assigned to the images in `ds`.

The images in the output of `readall`(`ds`) have a one-to-one correspondence with the categorical matrices in the output of `readall`(`pxds`).
