yamnet
(Not recommended) YAMNet neural network
yamnet is not recommended. Use the audioPretrainedNetwork function instead.
Syntax
Description
Examples
Download and unzip the Audio Toolbox™ model for YAMNet.
Type yamnet at the Command Window. If the Audio Toolbox model for YAMNet is not installed, then the function provides a link to the location of the network weights. To download the model, click the link. Unzip the file to a location on the MATLAB path.
Alternatively, execute the following commands to download and unzip the YAMNet model to your temporary directory.
downloadFolder = fullfile(tempdir,'YAMNetDownload'); loc = websave(downloadFolder,'https://ssd.mathworks.com/supportfiles/audio/yamnet.zip'); YAMNetLocation = tempdir; unzip(loc,YAMNetLocation) addpath(fullfile(YAMNetLocation,'yamnet'))
Check that the installation is successful by typing yamnet at the Command Window. If the network is installed, then the function returns a SeriesNetwork (Deep Learning Toolbox) object.
yamnet
ans =
SeriesNetwork with properties:
Layers: [86×1 nnet.cnn.layer.Layer]
InputNames: {'input_1'}
OutputNames: {'Sound'}
Load a pretrained YAMNet convolutional neural network and examine the layers and classes.
Use yamnet to load the pretrained YAMNet network. The output net is a SeriesNetwork (Deep Learning Toolbox) object.
net = yamnet
net =
SeriesNetwork with properties:
Layers: [86×1 nnet.cnn.layer.Layer]
InputNames: {'input_1'}
OutputNames: {'Sound'}
View the network architecture using the Layers property. The network has 86 layers. There are 28 layers with learnable weights: 27 convolutional layers, and 1 fully connected layer.
net.Layers
ans =
86x1 Layer array with layers:
1 'input_1' Image Input 96×64×1 images
2 'conv2d' Convolution 32 3×3×1 convolutions with stride [2 2] and padding 'same'
3 'b' Batch Normalization Batch normalization with 32 channels
4 'activation' ReLU ReLU
5 'depthwise_conv2d' Grouped Convolution 32 groups of 1 3×3×1 convolutions with stride [1 1] and padding 'same'
6 'L11' Batch Normalization Batch normalization with 32 channels
7 'activation_1' ReLU ReLU
8 'conv2d_1' Convolution 64 1×1×32 convolutions with stride [1 1] and padding 'same'
9 'L12' Batch Normalization Batch normalization with 64 channels
10 'activation_2' ReLU ReLU
11 'depthwise_conv2d_1' Grouped Convolution 64 groups of 1 3×3×1 convolutions with stride [2 2] and padding 'same'
12 'L21' Batch Normalization Batch normalization with 64 channels
13 'activation_3' ReLU ReLU
14 'conv2d_2' Convolution 128 1×1×64 convolutions with stride [1 1] and padding 'same'
15 'L22' Batch Normalization Batch normalization with 128 channels
16 'activation_4' ReLU ReLU
17 'depthwise_conv2d_2' Grouped Convolution 128 groups of 1 3×3×1 convolutions with stride [1 1] and padding 'same'
18 'L31' Batch Normalization Batch normalization with 128 channels
19 'activation_5' ReLU ReLU
20 'conv2d_3' Convolution 128 1×1×128 convolutions with stride [1 1] and padding 'same'
21 'L32' Batch Normalization Batch normalization with 128 channels
22 'activation_6' ReLU ReLU
23 'depthwise_conv2d_3' Grouped Convolution 128 groups of 1 3×3×1 convolutions with stride [2 2] and padding 'same'
24 'L41' Batch Normalization Batch normalization with 128 channels
25 'activation_7' ReLU ReLU
26 'conv2d_4' Convolution 256 1×1×128 convolutions with stride [1 1] and padding 'same'
27 'L42' Batch Normalization Batch normalization with 256 channels
28 'activation_8' ReLU ReLU
29 'depthwise_conv2d_4' Grouped Convolution 256 groups of 1 3×3×1 convolutions with stride [1 1] and padding 'same'
30 'L51' Batch Normalization Batch normalization with 256 channels
31 'activation_9' ReLU ReLU
32 'conv2d_5' Convolution 256 1×1×256 convolutions with stride [1 1] and padding 'same'
33 'L52' Batch Normalization Batch normalization with 256 channels
34 'activation_10' ReLU ReLU
35 'depthwise_conv2d_5' Grouped Convolution 256 groups of 1 3×3×1 convolutions with stride [2 2] and padding 'same'
36 'L61' Batch Normalization Batch normalization with 256 channels
37 'activation_11' ReLU ReLU
38 'conv2d_6' Convolution 512 1×1×256 convolutions with stride [1 1] and padding 'same'
39 'L62' Batch Normalization Batch normalization with 512 channels
40 'activation_12' ReLU ReLU
41 'depthwise_conv2d_6' Grouped Convolution 512 groups of 1 3×3×1 convolutions with stride [1 1] and padding 'same'
42 'L71' Batch Normalization Batch normalization with 512 channels
43 'activation_13' ReLU ReLU
44 'conv2d_7' Convolution 512 1×1×512 convolutions with stride [1 1] and padding 'same'
45 'L72' Batch Normalization Batch normalization with 512 channels
46 'activation_14' ReLU ReLU
47 'depthwise_conv2d_7' Grouped Convolution 512 groups of 1 3×3×1 convolutions with stride [1 1] and padding 'same'
48 'L81' Batch Normalization Batch normalization with 512 channels
49 'activation_15' ReLU ReLU
50 'conv2d_8' Convolution 512 1×1×512 convolutions with stride [1 1] and padding 'same'
51 'L82' Batch Normalization Batch normalization with 512 channels
52 'activation_16' ReLU ReLU
53 'depthwise_conv2d_8' Grouped Convolution 512 groups of 1 3×3×1 convolutions with stride [1 1] and padding 'same'
54 'L91' Batch Normalization Batch normalization with 512 channels
55 'activation_17' ReLU ReLU
56 'conv2d_9' Convolution 512 1×1×512 convolutions with stride [1 1] and padding 'same'
57 'L92' Batch Normalization Batch normalization with 512 channels
58 'activation_18' ReLU ReLU
59 'depthwise_conv2d_9' Grouped Convolution 512 groups of 1 3×3×1 convolutions with stride [1 1] and padding 'same'
60 'L101' Batch Normalization Batch normalization with 512 channels
61 'activation_19' ReLU ReLU
62 'conv2d_10' Convolution 512 1×1×512 convolutions with stride [1 1] and padding 'same'
63 'L102' Batch Normalization Batch normalization with 512 channels
64 'activation_20' ReLU ReLU
65 'depthwise_conv2d_10' Grouped Convolution 512 groups of 1 3×3×1 convolutions with stride [1 1] and padding 'same'
66 'L111' Batch Normalization Batch normalization with 512 channels
67 'activation_21' ReLU ReLU
68 'conv2d_11' Convolution 512 1×1×512 convolutions with stride [1 1] and padding 'same'
69 'L112' Batch Normalization Batch normalization with 512 channels
70 'activation_22' ReLU ReLU
71 'depthwise_conv2d_11' Grouped Convolution 512 groups of 1 3×3×1 convolutions with stride [2 2] and padding 'same'
72 'L121' Batch Normalization Batch normalization with 512 channels
73 'activation_23' ReLU ReLU
74 'conv2d_12' Convolution 1024 1×1×512 convolutions with stride [1 1] and padding 'same'
75 'L122' Batch Normalization Batch normalization with 1024 channels
76 'activation_24' ReLU ReLU
77 'depthwise_conv2d_12' Grouped Convolution 1024 groups of 1 3×3×1 convolutions with stride [1 1] and padding 'same'
78 'L131' Batch Normalization Batch normalization with 1024 channels
79 'activation_25' ReLU ReLU
80 'conv2d_13' Convolution 1024 1×1×1024 convolutions with stride [1 1] and padding 'same'
81 'L132' Batch Normalization Batch normalization with 1024 channels
82 'activation_26' ReLU ReLU
83 'global_average_pooling2d' Global Average Pooling Global average pooling
84 'dense' Fully Connected 521 fully connected layer
85 'softmax' Softmax softmax
86 'Sound' Classification Output crossentropyex with 'Speech' and 520 other classes
To view the names of the classes learned by the network, you can view the Classes property of the classification output layer (the final layer). View the first 10 classes by specifying the first 10 elements.
net.Layers(end).Classes(1:10)
ans = 10×1 categorical
Speech
Child speech, kid speaking
Conversation
Narration, monologue
Babbling
Speech synthesizer
Shout
Bellow
Whoop
Yell

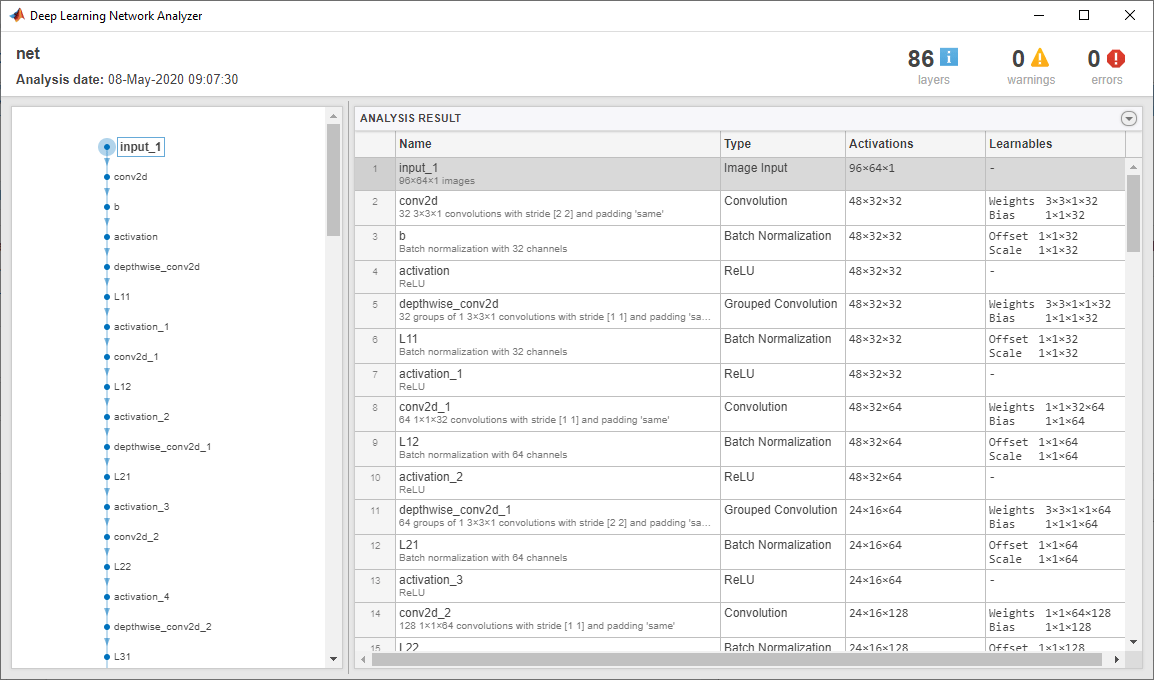

Use analyzeNetwork (Deep Learning Toolbox) to visually explore the network.
analyzeNetwork(net)

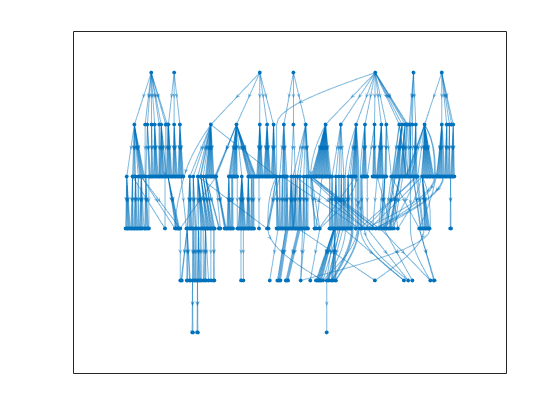

YAMNet was released with a corresponding sound class ontology, which you can explore using the yamnetGraph object.
ygraph = yamnetGraph;
p = plot(ygraph);
layout(p,'layered')
The ontology graph plots all 521 possible sound classes. Plot a subgraph of the sounds related to respiratory sounds.
allRespiratorySounds = dfsearch(ygraph,"Respiratory sounds");
ygraphSpeech = subgraph(ygraph,allRespiratorySounds);
plot(ygraphSpeech)
Read in an audio signal to classify it.
[audioIn,fs] = audioread(
"TrainWhistle-16-44p1-mono-9secs.wav");Plot and listen to the audio signal.
t = (0:numel(audioIn)-1)/fs; plot(t,audioIn) xlabel("Time (s)") ylabel("Ampltiude") axis tight
sound(audioIn,fs)

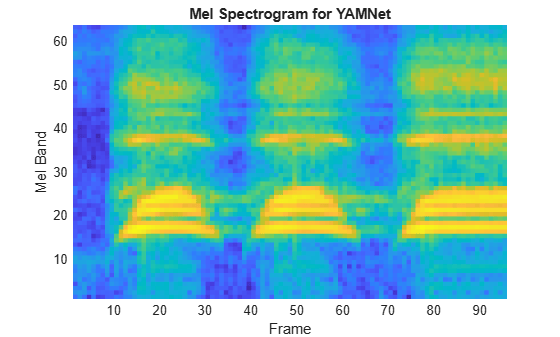

YAMNet requires you to preprocess the audio signal to match the input format used to train the network. The preprocesssing steps include resampling the audio signal and computing an array of mel spectrograms. To learn more about mel spectrograms, see melSpectrogram. Use yamnetPreprocess to preprocess the signal and extract the mel spectrograms to be passed to YAMNet. Visualize one of these spectrograms chosen at random.
spectrograms = yamnetPreprocess(audioIn,fs); arbitrarySpect = spectrograms(:,:,1,randi(size(spectrograms,4))); surf(arbitrarySpect,EdgeColor="none") view([90 -90]) xlabel("Mel Band") ylabel("Frame") title("Mel Spectrogram for YAMNet") axis tight
Create a YAMNet neural network using the audioPretrainedNetwork function. Call predict with the network on the preprocessed mel spectrogram images. Convert the network output to class labels using scores2label.
[net,classNames] = audioPretrainedNetwork("yamnet");
scores = predict(net,spectrograms);
classes = scores2label(scores,classNames);The classification step returns a label for each of the spectrogram images in the input. Classify the sound as the most frequently occurring label in the output.
mySound = mode(classes)
mySound = categorical
Whistle
Download and unzip the air compressor data set [1]. This data set consists of recordings from air compressors in a healthy state or one of 7 faulty states.
url = "https://www.mathworks.com/supportfiles/audio/AirCompressorDataset/AirCompressorDataset.zip"; downloadFolder = fullfile(tempdir,"aircompressordataset"); datasetLocation = tempdir; if ~exist(fullfile(tempdir,"AirCompressorDataSet"),"dir") loc = websave(downloadFolder,url); unzip(loc,fullfile(tempdir,"AirCompressorDataSet")) end
Create an audioDatastore object to manage the data and split it into train and validation sets.
ads = audioDatastore(downloadFolder,IncludeSubfolders=true,LabelSource="foldernames");

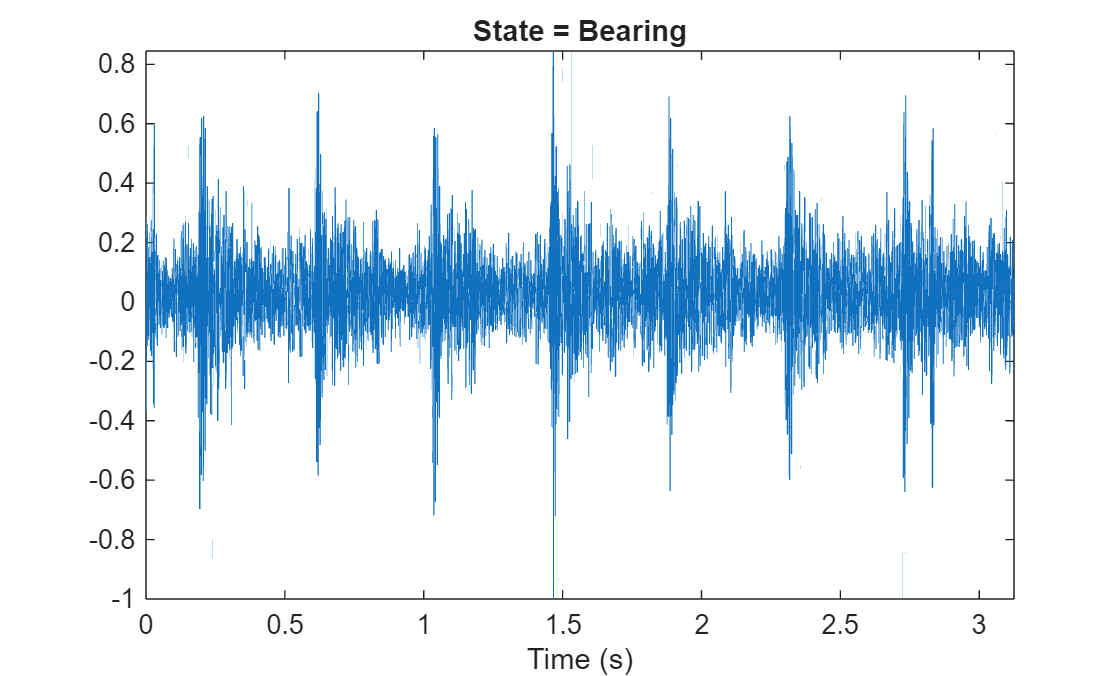

[adsTrain,adsValidation] = splitEachLabel(ads,0.8,0.2);Read an audio file from the datastore and save the sample rate for later use. Reset the datastore to return the read pointer to the beginning of the data set. Listen to the audio signal and plot the signal in the time domain.
[x,fileInfo] = read(adsTrain); fs = fileInfo.SampleRate; reset(adsTrain) sound(x,fs) figure t = (0:size(x,1)-1)/fs; plot(t,x) xlabel("Time (s)") title("State = " + string(fileInfo.Label)) axis tight
Extract Mel spectrograms from the train set using yamnetPreprocess. There are multiple spectrograms for each audio signal. Replicate the labels so that they are in one-to-one correspondence with the spectrograms.
emptyLabelVector = adsTrain.Labels; emptyLabelVector(:) = []; trainFeatures = []; trainLabels = emptyLabelVector; while hasdata(adsTrain) [audioIn,fileInfo] = read(adsTrain); features = yamnetPreprocess(audioIn,fileInfo.SampleRate); numSpectrums = size(features,4); trainFeatures = cat(4,trainFeatures,features); trainLabels = cat(2,trainLabels,repmat(fileInfo.Label,1,numSpectrums)); end
Extract features from the validation set and replicate the labels.
validationFeatures = []; validationLabels = emptyLabelVector; while hasdata(adsValidation) [audioIn,fileInfo] = read(adsValidation); features = yamnetPreprocess(audioIn,fileInfo.SampleRate); numSpectrums = size(features,4); validationFeatures = cat(4,validationFeatures,features); validationLabels = cat(2,validationLabels,repmat(fileInfo.Label,1,numSpectrums)); end
The air compressor data set has only 8 classes. Call audioPretrainedNetwork with NumClasses set to 8 to load a pretrained YAMNet network with the desired number of output classes for transfer learning.
classNames = unique(adsTrain.Labels);
numClasses = numel(classNames);
net = audioPretrainedNetwork("yamnet",NumClasses=numClasses);To define training options, use trainingOptions.
miniBatchSize = 128; validationFrequency = floor(numel(trainLabels)/miniBatchSize); options = trainingOptions('adam', ... InitialLearnRate=3e-4, ... MaxEpochs=2, ... MiniBatchSize=miniBatchSize, ... Shuffle="every-epoch", ... Plots="training-progress", ... Metrics="accuracy", ... Verbose=false, ... ValidationData={single(validationFeatures),validationLabels'}, ... ValidationFrequency=validationFrequency);

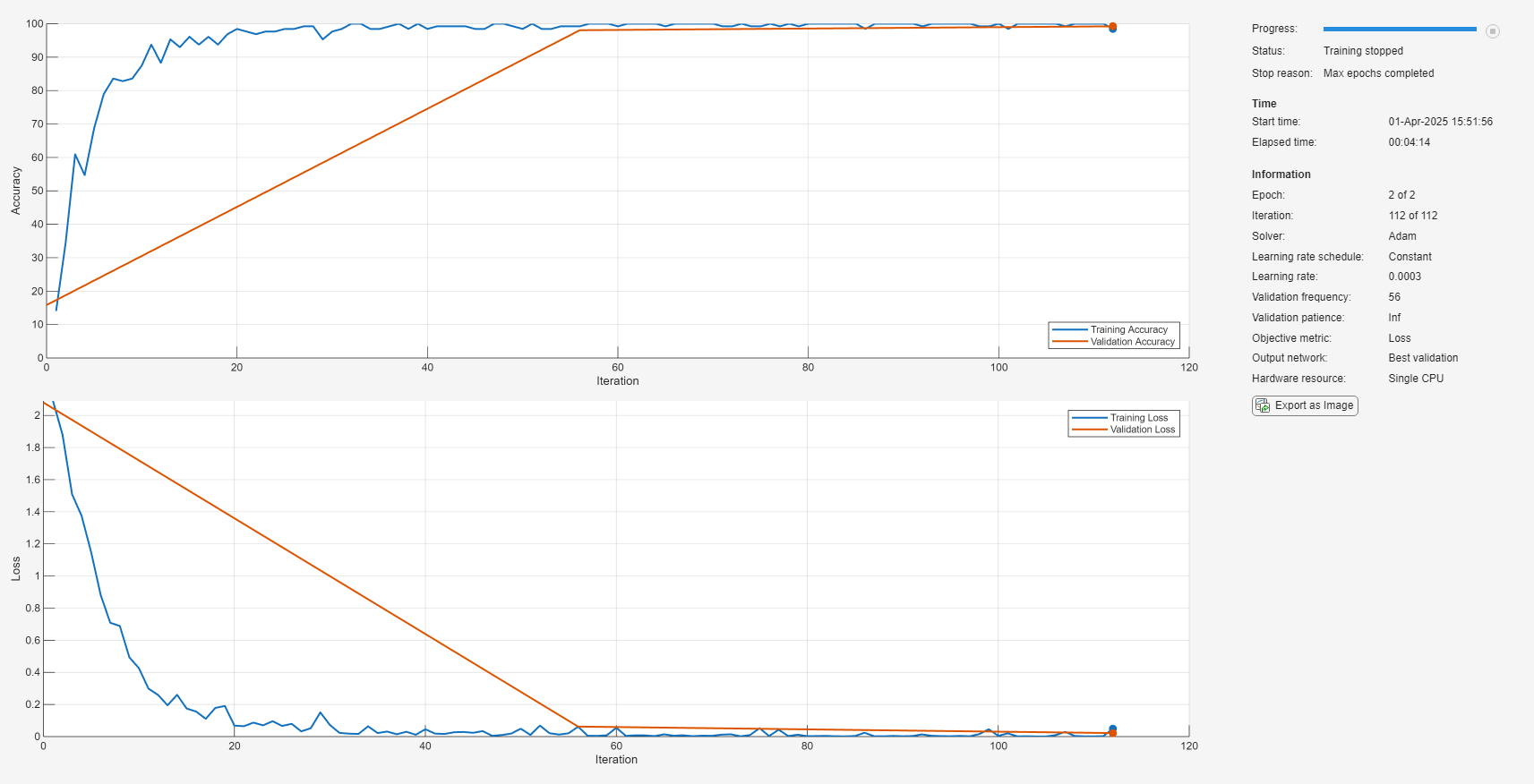

To train the network, use trainnet.
airCompressorNet = trainnet(trainFeatures,trainLabels',net,"crossentropy",options);
Save the trained network to airCompressorNet.mat. You can now use this pre-trained network by loading the airCompressorNet.mat file.
save airCompressorNet.mat airCompressorNet
References
[1] Verma, Nishchal K., et al. “Intelligent Condition Based Monitoring Using Acoustic Signals for Air Compressors.” IEEE Transactions on Reliability, vol. 65, no. 1, Mar. 2016, pp. 291–309. DOI.org (Crossref), doi:10.1109/TR.2015.2459684.
Output Arguments
References
[1] Gemmeke, Jort F., et al. “Audio Set: An Ontology and Human-Labeled Dataset for Audio Events.” 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2017, pp. 776–80. DOI.org (Crossref), doi:10.1109/ICASSP.2017.7952261.
[2] Hershey, Shawn, et al. “CNN Architectures for Large-Scale Audio Classification.” 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), IEEE, 2017, pp. 131–35. DOI.org (Crossref), doi:10.1109/ICASSP.2017.7952132.
Extended Capabilities
Version History
Introduced in R2020b
