Dirichlet or periodic sinc function

Syntax

y = diric(x,n)

Description

y = diric(x,n) returns the Dirichlet Function of degree n evaluated at the elements of the input array x.

Examples

Dirichlet Function

Compute and plot the Dirichlet function between $$-2\pi$$ and $$2\pi$$ for N = 7 and N = 8. The function has a period of $$2\pi$$ for odd N and $$4\pi$$ for even N.

x = linspace(-2*pi,2*pi,301);

d7 = diric(x,7);
d8 = diric(x,8);

tiledlayout("flow")
nexttile
plot(x/pi,d7)
ylabel("N = 7")
title("Dirichlet Function")
nexttile
plot(x/pi,d8)
ylabel("N = 8")
xlabel("x / \pi")

Periodic and Aperiodic Sinc Functions

The Dirichlet and sinc functions are related by $$D_N(\pi x)=sinc(Nx/2)/sinc(x/2)$$. Show this relationship for $$N=6$$. Avoid indeterminate expressions by specifying that the ratio of sinc functions is ${\left(-1\right)}^{k\left(N-1\right)}$ for $x=2k$, where $k$ is an integer.

xmax = 4;
x = linspace(-xmax,xmax,1001)';

N = 6;

yd = diric(x*pi,N);
ys = sinc(N*x/2)./sinc(x/2);
ys(~mod(x,2)) = (-1).^(x(~mod(x,2))/2*(N-1));

tiledlayout("flow")
nexttile
plot(x,yd)
title("D_6(x*pi)")
nexttile
plot(x,ys)
title("sinc(6*x/2) / sinc(x/2)")

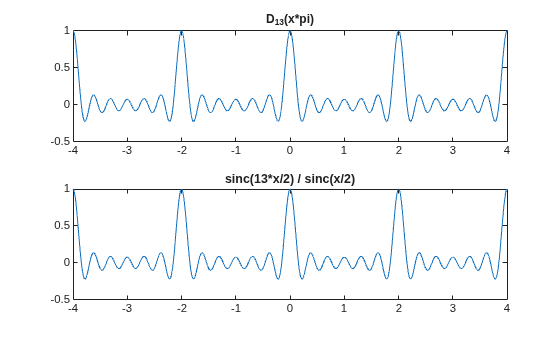

Repeat the calculation for $N=13$.

N = 13;

yd = diric(x*pi,N);
ys = sinc(N*x/2)./sinc(x/2);
ys(~mod(x,2)) = (-1).^(x(~mod(x,2))/2*(N-1));

tiledlayout("flow")
nexttile
plot(x,yd)
title("D_{13}(x*pi)")
nexttile
plot(x,ys)
title("sinc(13*x/2) / sinc(x/2)")

Input Arguments

x — Input array

real scalar | real vector | real matrix | real N-D array

Input array, specified as a real scalar, vector, matrix, or N-D array. When x is nonscalar, diric is an element-wise operation.

Data Types: double | single

n — Function degree

positive integer scalar

Function degree, specified as a positive integer scalar.

Data Types: double | single

Output Arguments

y — Output array

real scalar | real vector | real matrix | real N-D array

Output array, returned as a real-valued scalar, vector, matrix, or N-D array of the same size as x.

More About

Dirichlet Function

The Dirichlet function, or periodic sinc function, is

$$D_N(x)=\{\begin{array}{ll}\frac{\sin (Nx/2)}{N\sin (x/2)}\hfill & x\ne 2\pi k,k=0,\pm 1,\pm 2,\pm 3,\mathrm{...}\hfill \\ {(-1)}^{k(N-1)}\hfill & x=2\pi k,k=0,\pm 1,\pm 2,\pm 3,\mathrm{...}\hfill \end{array}$$

for any nonzero integer N.

This function has period 2π for odd N and period 4π for even N. Its maximum value is 1 for all N, and its minimum value is –1 for even N. The magnitude of the function is 1/N times the magnitude of the discrete-time Fourier transform of the N-point rectangular window.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Thread-Based Environment

Run code in the background using MATLAB® backgroundPool or accelerate code with Parallel Computing Toolbox™ ThreadPool.

The diric function fully supports thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.

Version History

Introduced before R2006a

R2026b: Use thread-based environments

You can use diric in thread-based environments. For more information, see Run MATLAB Functions in Thread-Based Environment.
