sbiofit

Perform nonlinear least-squares regression

Statistics and Machine Learning Toolbox™, Optimization Toolbox™, and Global Optimization Toolbox are recommended for this function.

Description

fitResults = sbiofit(sm,grpData,ResponseMap,estiminfo) estimates parameters of a SimBiology model sm using nonlinear least-squares regression.

grpData is a groupedData object specifying the data to fit. ResponseMap defines the mapping between the model components and response data in grpData. estimatedInfo is an EstimatedInfo object that defines the estimated parameters in the model sm. fitResults is a OptimResults object or NLINResults object or a vector of these objects.

sbiofit uses the first available estimation function among the following: lsqnonlin (Optimization Toolbox), nlinfit (Statistics and Machine Learning Toolbox), or fminsearch.

By default, each group in grpData is fit separately, resulting in group-specific parameter estimates. If the model contains active doses and variants, they are applied before the simulation.

example

fitResults = sbiofit(sm,grpData,ResponseMap,estiminfo,dosing) uses the dosing information specified by a matrix of SimBiology dose objects dosing instead of using the active doses of the model sm if there is any.

example

fitResults = sbiofit(sm,grpData,ResponseMap,estiminfo,dosing,functionName) uses the estimation function specified by functionName. If the specified function is unavailable, a warning is issued and the first available default function is used.

example

fitResults = sbiofit(sm,grpData,ResponseMap,estiminfo,dosing,functionName,options) uses the additional options specified by options for the function functionName.

example

fitResults = sbiofit(sm,grpData,ResponseMap,estiminfo,dosing,functionName,options,variants) applies variant objects specified as variants instead of using any active variants of the model.

example

fitResults = sbiofit(_,Name,Value) uses additional options specified by one or more Name,Value pair arguments.

example

[fitResults,simdata] = sbiofit(_) also returns a vector of SimData objects simdata using any of the input arguments in the previous syntaxes.

Note

  • sbiofit unifies sbionlinfit and sbioparamestim estimation functions. Use sbiofit to perform nonlinear least-squares regression.

  • sbiofit simulates the model using a SimFunction object, which automatically accelerates simulations by default. Hence it is not necessary to run sbioaccelerate before you call sbiofit.

example

Examples

collapse all

Background

This example shows how to fit an individual's PK profile data to one-compartment model and estimate pharmacokinetic parameters.

Suppose you have drug plasma concentration data from an individual and want to estimate the volume of the central compartment and the clearance. Assume the drug concentration versus the time profile follows the monoexponential decline Ct=C0e-ket, where Ct is the drug concentration at time t, C0 is the initial concentration, and ke is the elimination rate constant that depends on the clearance and volume of the central compartment ke=Cl/V.

The synthetic data in this example was generated using the following model, parameters, and dose:

  • One-compartment model with bolus dosing and first-order elimination

  • Volume of the central compartment (Central) = 1.70 liter

  • Clearance parameter (Cl_Central) = 0.55 liter/hour

  • Constant error model

  • Bolus dose of 10 mg

Load Data and Visualize

The data is stored as a table with variables Time and Conc that represent the time course of the plasma concentration of an individual after an intravenous bolus administration measured at 13 different time points. The variable units for Time and Conc are hour and milligram/liter, respectively.

load('data15.mat')
plot(data.Time,data.Conc,'b+')
xlabel('Time (hour)');
ylabel('Drug Concentration (milligram/liter)');

Figure contains an axes object. The axes object with xlabel Time (hour), ylabel Drug Concentration (milligram/liter) contains a line object which displays its values using only markers.

Convert to groupedData Format

Convert the data set to a groupedData object, which is the required data format for the fitting function sbiofit for later use. A groupedData object also lets you set independent variable and group variable names (if they exist). Set the units of the Time and Conc variables. The units are optional and only required for the UnitConversion feature, which automatically converts matching physical quantities to one consistent unit system.

gData = groupedData(data);
gData.Properties.VariableUnits = {'hour','milligram/liter'};
gData.Properties
ans = struct with fields:
                Description: ''
                   UserData: []
             DimensionNames: {'Row'  'Variables'}
              VariableNames: {'Time'  'Conc'}
              VariableTypes: ["double"    "double"]
       VariableDescriptions: {}
              VariableUnits: {'hour'  'milligram/liter'}
         VariableContinuity: []
                   RowNames: {}
           CustomProperties: [1×1 matlab.tabular.CustomProperties]
          GroupVariableName: ''
    IndependentVariableName: 'Time'

groupedData automatically set the name of the IndependentVariableName property to the Time variable of the data.

Construct a One-Compartment Model

Use the built-in PK library to construct a one-compartment model with bolus dosing and first-order elimination where the elimination rate depends on the clearance and volume of the central compartment. Use the configset object to turn on unit conversion.

pkmd                    = PKModelDesign;
pkc1                    = addCompartment(pkmd,'Central');
pkc1.DosingType         = 'Bolus';
pkc1.EliminationType    = 'linear-clearance';
pkc1.HasResponseVariable = true;
model                   = construct(pkmd);
configset               = getconfigset(model);
configset.CompileOptions.UnitConversion = true;

For details on creating compartmental PK models using the SimBiology® built-in library, see Create Pharmacokinetic Models.

Define Dosing

Define a single bolus dose of 10 milligram given at time = 0. For details on setting up different dosing schedules, see Doses in SimBiology Models.

dose                = sbiodose('dose');
dose.TargetName     = 'Drug_Central';
dose.StartTime      = 0;
dose.Amount         = 10;
dose.AmountUnits    = 'milligram';
dose.TimeUnits      = 'hour';

Map Response Data to the Corresponding Model Component

The data contains drug concentration data stored in the Conc variable. This data corresponds to the Drug_Central species in the model. Therefore, map the data to Drug_Central as follows.

responseMap = {'Drug_Central = Conc'};

Specify Parameters to Estimate

The parameters to fit in this model are the volume of the central compartment (Central) and the clearance rate (Cl_Central). In this case, specify log-transformation for these biological parameters since they are constrained to be positive. The estimatedInfo object lets you specify parameter transforms, initial values, and parameter bounds if needed.

paramsToEstimate    = {'log(Central)','log(Cl_Central)'};
estimatedParams     = estimatedInfo(paramsToEstimate,'InitialValue',[1 1],'Bounds',[1 5;0.5 2]);

Estimate Parameters

Now that you have defined one-compartment model, data to fit, mapped response data, parameters to estimate, and dosing, use sbiofit to estimate parameters. The default estimation function that sbiofit uses will change depending on which toolboxes are available. To see which function was used during fitting, check the EstimationFunction property of the corresponding results object.

fitConst = sbiofit(model,gData,responseMap,estimatedParams,dose);

Display Estimated Parameters and Plot Results

Notice the parameter estimates were not far off from the true values (1.70 and 0.55) that were used to generate the data. You may also try different error models to see if they could further improve the parameter estimates.

fitConst.ParameterEstimates
ans=2×4 table
         Name         Estimate    StandardError      Bounds
    ______________    ________    _____________    __________

    {'Central'   }     1.6993       0.034821         1      5
    {'Cl_Central'}    0.53358        0.01968       0.5      2

s.Labels.XLabel     = 'Time (hour)';
s.Labels.YLabel     = 'Concentration (milligram/liter)';
plot(fitConst,'AxesStyle',s);

Figure contains 2 axes objects. Axes object 1 contains 2 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 2 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Central.Drug_Central), Observed (Observed.Conc).

Use Different Error Models

Try three other supported error models (proportional, combination of constant and proportional error models, and exponential).

fitProp = sbiofit(model,gData,responseMap,estimatedParams,dose,...
                      'ErrorModel','proportional');
fitExp  = sbiofit(model,gData,responseMap,estimatedParams,dose,...
                      'ErrorModel','exponential');
fitComb = sbiofit(model,gData,responseMap,estimatedParams,dose,...
                      'ErrorModel','combined');

Use Weights Instead of an Error Model

You can specify weights as a numeric matrix, where the number of columns corresponds to the number of responses. Setting all weights to 1 is equivalent to the constant error model.

weightsNumeric = ones(size(gData.Conc));
fitWeightsNumeric = sbiofit(model,gData,responseMap,estimatedParams,dose,'Weights',weightsNumeric);

Alternatively, you can use a function handle that accepts a vector of predicted response values and returns a vector of weights. In this example, use a function handle that is equivalent to the proportional error model.

weightsFunction = @(y) 1./y.^2;
fitWeightsFunction = sbiofit(model,gData,responseMap,estimatedParams,dose,'Weights',weightsFunction);

Compare Information Criteria for Model Selection

Compare the loglikelihood, AIC, and BIC values of each model to see which error model best fits the data. A larger likelihood value indicates the corresponding model fits the model better. For AIC and BIC, the smaller values are better.

allResults = [fitConst,fitWeightsNumeric,fitWeightsFunction,fitProp,fitExp,fitComb];
errorModelNames = {'constant error model','equal weights','proportional weights', ...
                   'proportional error model','exponential error model',...
                   'combined error model'};
LogLikelihood = [allResults.LogLikelihood]';
AIC = [allResults.AIC]';
BIC = [allResults.BIC]';
t = table(LogLikelihood,AIC,BIC);
t.Properties.RowNames = errorModelNames;
t
t=6×3 table
                                LogLikelihood      AIC        BIC
                                _____________    _______    _______

    constant error model            3.9866       -3.9732    -2.8433
    equal weights                   3.9866       -3.9732    -2.8433
    proportional weights           -3.8472        11.694     12.824
    proportional error model       -3.8257        11.651     12.781
    exponential error model         1.1984        1.6032     2.7331
    combined error model            3.9163       -3.8326    -2.7027

Based on the information criteria, the constant error model (or equal weights) fits the data best since it has the largest loglikelihood value and the smallest AIC and BIC.

Display Estimated Parameter Values

Show the estimated parameter values of each model.

Estimated_Central       = zeros(6,1);
Estimated_Cl_Central    = zeros(6,1);
t2 = table(Estimated_Central,Estimated_Cl_Central);
t2.Properties.RowNames = errorModelNames;
for i = 1:height(t2)
    t2{i,1} = allResults(i).ParameterEstimates.Estimate(1);
    t2{i,2} = allResults(i).ParameterEstimates.Estimate(2);
end
t2
t2=6×2 table
                                Estimated_Central    Estimated_Cl_Central
                                _________________    ____________________

    constant error model             1.6993                0.53358
    equal weights                    1.6993                0.53358
    proportional weights             1.9045                0.51734
    proportional error model         1.8777                0.51147
    exponential error model          1.7872                0.51701
    combined error model             1.7008                0.53271

Conclusion

This example showed how to estimate PK parameters, namely the volume of the central compartment and clearance parameter of an individual, by fitting the PK profile data to one-compartment model. You compared the information criteria of each model and estimated parameter values of different error models to see which model best explained the data. Final fitted results suggested both the constant and combined error models provided the closest estimates to the parameter values used to generate the data. However, the constant error model is a better model as indicated by the loglikelihood, AIC, and BIC information criteria.

Suppose you have drug plasma concentration data from three individuals that you want to use to estimate corresponding pharmacokinetic parameters, namely the volume of central and peripheral compartment (Central, Peripheral), the clearance rate (Cl_Central), and intercompartmental clearance (Q12). Assume the drug concentration versus the time profile follows the biexponential decline Ct=Aeat+Bebt, where Ct is the drug concentration at time t, and a and b are slopes for corresponding exponential declines.

The synthetic data set contains drug plasma concentration data measured in both central and peripheral compartments. The data was generated using a two-compartment model with an infusion dose and first-order elimination. These parameters were used for each individual.

 CentralPeripheralQ12Cl_Central
Individual 11.900.680.240.57
Individual 22.106.050.360.95
Individual 31.704.210.460.95

The data is stored as a table with variables ID, Time, CentralConc, and PeripheralConc. It represents the time course of plasma concentrations measured at eight different time points for both central and peripheral compartments after an infusion dose.

load('data10_32R.mat')

Convert the data set to a groupedData object which is the required data format for the fitting function sbiofit for later use. A groupedData object also lets you set independent variable and group variable names (if they exist). Set the units of the ID, Time, CentralConc, and PeripheralConc variables. The units are optional and only required for the UnitConversion feature, which automatically converts matching physical quantities to one consistent unit system.

gData = groupedData(data);
gData.Properties.VariableUnits = {'','hour','milligram/liter','milligram/liter'};
gData.Properties
ans =

  struct with fields:

                Description: ''
                   UserData: []
             DimensionNames: {'Row'  'Variables'}
              VariableNames: {'ID'  'Time'  'CentralConc'  'PeripheralConc'}
              VariableTypes: ["double"    "double"    "double"    "double"]
       VariableDescriptions: {}
              VariableUnits: {''  'hour'  'milligram/liter'  'milligram/liter'}
         VariableContinuity: []
                   RowNames: {}
           CustomProperties: [1×1 matlab.tabular.CustomProperties]
          GroupVariableName: 'ID'
    IndependentVariableName: 'Time'

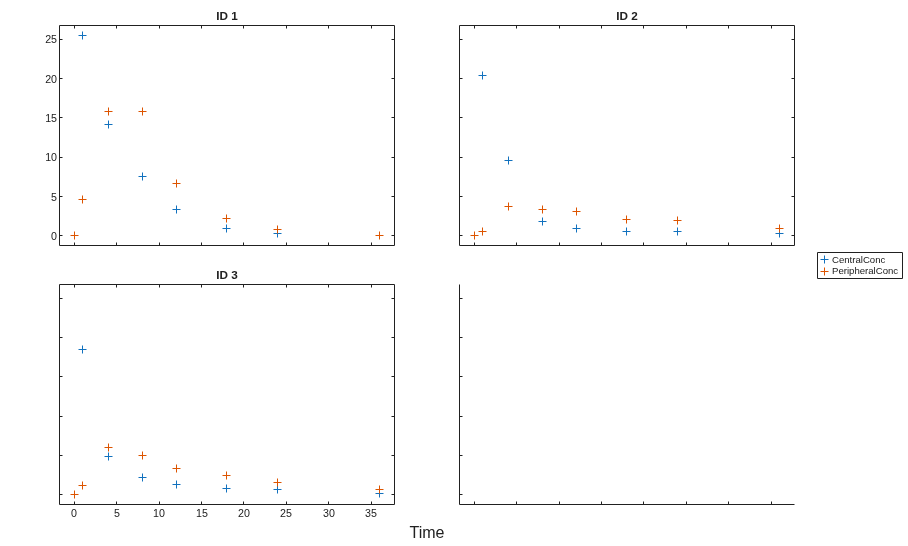

Create a trellis plot that shows the PK profiles of three individuals.

sbiotrellis(gData,'ID','Time',{'CentralConc','PeripheralConc'},...
            'Marker','+','LineStyle','none');

Use the built-in PK library to construct a two-compartment model with infusion dosing and first-order elimination where the elimination rate depends on the clearance and volume of the central compartment. Use the configset object to turn on unit conversion.

pkmd                 = PKModelDesign;
pkc1                 = addCompartment(pkmd,'Central');
pkc1.DosingType      = 'Infusion';
pkc1.EliminationType = 'linear-clearance';
pkc1.HasResponseVariable = true;
pkc2                 = addCompartment(pkmd,'Peripheral');
model                = construct(pkmd);
configset            = getconfigset(model);
configset.CompileOptions.UnitConversion = true;

Assume every individual receives an infusion dose at time = 0, with a total infusion amount of 100 mg at a rate of 50 mg/hour. For details on setting up different dosing strategies, see Doses in SimBiology Models.

dose             = sbiodose('dose','TargetName','Drug_Central');
dose.StartTime   = 0;
dose.Amount      = 100;
dose.Rate        = 50;
dose.AmountUnits = 'milligram';
dose.TimeUnits   = 'hour';
dose.RateUnits   = 'milligram/hour';

The data contains measured plasma concentrations in the central and peripheral compartments. Map these variables to the appropriate model species, which are Drug_Central and Drug_Peripheral.

responseMap = {'Drug_Central = CentralConc','Drug_Peripheral = PeripheralConc'};

The parameters to estimate in this model are the volumes of central and peripheral compartments (Central and Peripheral), intercompartmental clearance Q12, and clearance rate Cl_Central. In this case, specify log-transform for Central and Peripheral since they are constrained to be positive. The estimatedInfo object lets you specify parameter transforms, initial values, and parameter bounds (optional).

paramsToEstimate   = {'log(Central)','log(Peripheral)','Q12','Cl_Central'};
estimatedParam     = estimatedInfo(paramsToEstimate,'InitialValue',[1 1 1 1]);

Fit the model to all of the data pooled together, that is, estimate one set of parameters for all individuals. The default estimation method that sbiofit uses will change depending on which toolboxes are available. To see which estimation function sbiofit used for the fitting, check the EstimationFunction property of the corresponding results object.

pooledFit = sbiofit(model,gData,responseMap,estimatedParam,dose,'Pooled',true)
pooledFit =

  OptimResults with properties:

                   ExitFlag: 3
                     Output: [1×1 struct]
                  GroupName: []
                       Beta: [4×3 table]
         ParameterEstimates: [4×3 table]
                          J: [24×4×2 double]
                       COVB: [4×4 double]
           CovarianceMatrix: [4×4 double]
                          R: [24×2 double]
                        MSE: 6.6220
                        SSE: 291.3688
                    Weights: []
              LogLikelihood: -111.3904
                        AIC: 230.7808
                        BIC: 238.2656
                        DFE: 44
             DependentFiles: {1×3 cell}
                       Data: [24×4 groupedData]
    EstimatedParameterNames: {'Central'  'Peripheral'  'Q12'  'Cl_Central'}
             ErrorModelInfo: [1×3 table]
         EstimationFunction: 'lsqnonlin'

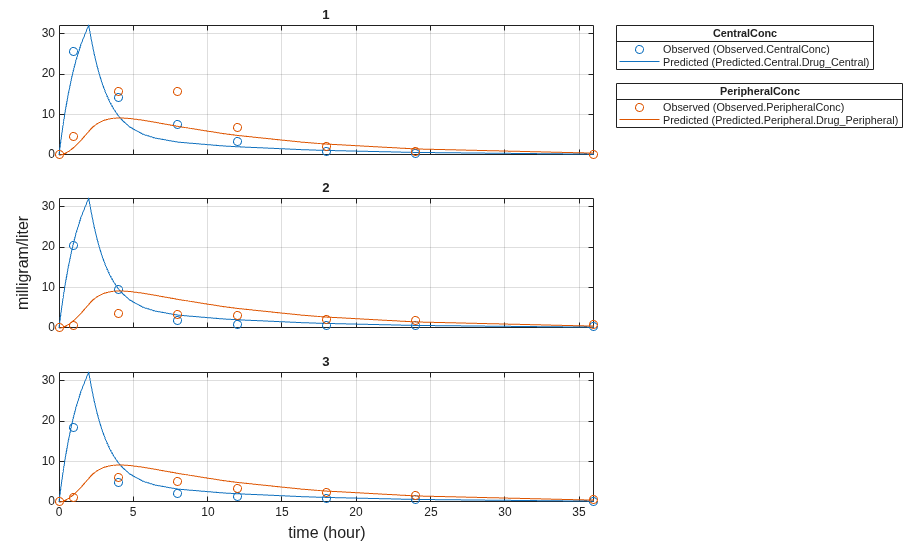

Plot the fitted results versus the original data. Although three separate plots were generated, the data was fitted using the same set of parameters (that is, all three individuals had the same fitted line).

plot(pooledFit);

Estimate one set of parameters for each individual and see if there is any improvement in the parameter estimates. In this example, since there are three individuals, three sets of parameters are estimated.

unpooledFit =  sbiofit(model,gData,responseMap,estimatedParam,dose,'Pooled',false);

Plot the fitted results versus the original data. Each individual was fitted differently (that is, each fitted line is unique to each individual) and each line appeared to fit well to individual data.

plot(unpooledFit);

Display the fitted results of the first individual. The MSE was lower than that of the pooled fit. This is also true for the other two individuals.

unpooledFit(1)
ans =

  OptimResults with properties:

                   ExitFlag: 3
                     Output: [1×1 struct]
                  GroupName: 1
                       Beta: [4×3 table]
         ParameterEstimates: [4×3 table]
                          J: [8×4×2 double]
                       COVB: [4×4 double]
           CovarianceMatrix: [4×4 double]
                          R: [8×2 double]
                        MSE: 2.1380
                        SSE: 25.6559
                    Weights: []
              LogLikelihood: -26.4805
                        AIC: 60.9610
                        BIC: 64.0514
                        DFE: 12
             DependentFiles: {1×3 cell}
                       Data: [8×4 groupedData]
    EstimatedParameterNames: {'Central'  'Peripheral'  'Q12'  'Cl_Central'}
             ErrorModelInfo: [1×3 table]
         EstimationFunction: 'lsqnonlin'

Generate a plot of the residuals over time to compare the pooled and unpooled fit results. The figure indicates unpooled fit residuals are smaller than those of pooled fit as expected. In addition to comparing residuals, other rigorous criteria can be used to compare the fitted results.

t = [gData.Time;gData.Time];
res_pooled = vertcat(pooledFit.R);
res_pooled = res_pooled(:);
res_unpooled = vertcat(unpooledFit.R);
res_unpooled = res_unpooled(:);
plot(t,res_pooled,'o','MarkerFaceColor','w','markerEdgeColor','b')
hold on
plot(t,res_unpooled,'o','MarkerFaceColor','b','markerEdgeColor','b')
refl = refline(0,0); % A reference line representing a zero residual
title('Residuals versus Time');
xlabel('Time');
ylabel('Residuals');
legend({'Pooled','Unpooled'});

This example showed how to perform pooled and unpooled estimations using sbiofit. As illustrated, the unpooled fit accounts for variations due to the specific subjects in the study, and, in this case, the model fits better to the data. However, the pooled fit returns population-wide parameters. If you want to estimate population-wide parameters while considering individual variations, use sbiofitmixed.

This example shows how to estimate category-specific (such as young versus old, male versus female), individual-specific, and population-wide parameters using PK profile data from multiple individuals.

Background

Suppose you have drug plasma concentration data from 30 individuals and want to estimate pharmacokinetic parameters, namely the volumes of central and peripheral compartment, the clearance, and intercompartmental clearance. Assume the drug concentration versus the time profile follows the biexponential decline Ct=Ae-at+Be-bt, where Ct is the drug concentration at time t, and a and b are slopes for corresponding exponential declines.

Load Data

This synthetic data contains the time course of plasma concentrations of 30 individuals after a bolus dose (100 mg) measured at different times for both central and peripheral compartments. It also contains categorical variables, namely Sex and Age.

clear
load('sd5_302RAgeSex.mat')

Convert to groupedData Format

Convert the data set to a groupedData object, which is the required data format for the fitting function sbiofit. A groupedData object also allows you set independent variable and group variable names (if they exist). Set the units of the ID, Time, CentralConc, PeripheralConc, Age, and Sex variables. The units are optional and only required for the UnitConversion feature, which automatically converts matching physical quantities to one consistent unit system.

gData = groupedData(data);
gData.Properties.VariableUnits = {'','hour','milligram/liter','milligram/liter','',''};
gData.Properties
ans = struct with fields:
                Description: ''
                   UserData: []
             DimensionNames: {'Row'  'Variables'}
              VariableNames: {'ID'  'Time'  'CentralConc'  'PeripheralConc'  'Sex'  'Age'}
              VariableTypes: ["double"    "double"    "double"    "double"    "categorical"    "categorical"]
       VariableDescriptions: {}
              VariableUnits: {''  'hour'  'milligram/liter'  'milligram/liter'  ''  ''}
         VariableContinuity: []
                   RowNames: {}
           CustomProperties: [1×1 matlab.tabular.CustomProperties]
          GroupVariableName: 'ID'
    IndependentVariableName: 'Time'

The IndependentVariableName and GroupVariableName properties have been automatically set to the Time and ID variables of the data.

Visualize Data

Display the response data for each individual.

t = sbiotrellis(gData,'ID','Time',{'CentralConc','PeripheralConc'},...
                'Marker','+','LineStyle','none');
% Resize the figure.
t.hFig.Position(:) = [100 100 1280 800];

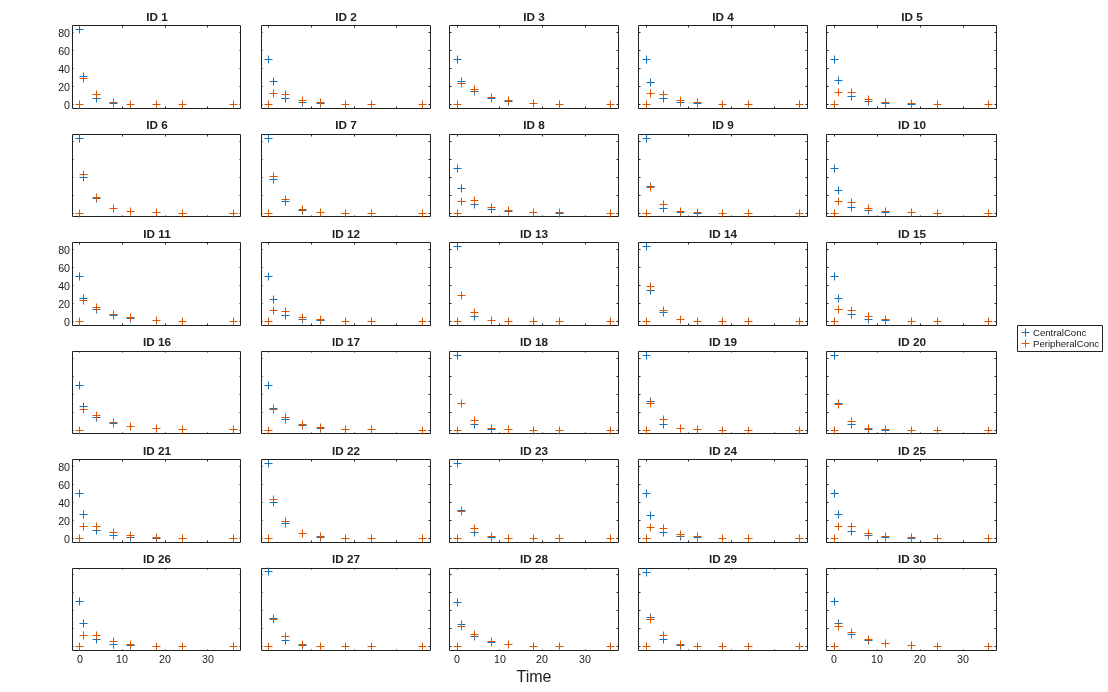

Figure contains 30 axes objects. Axes object 1 with title ID 1 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title ID 2 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with title ID 3 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 4 with title ID 4 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 5 with title ID 5 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 6 with title ID 6 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title ID 7 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title ID 8 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title ID 9 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title ID 10 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title ID 11 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title ID 12 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 13 with title ID 13 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 14 with title ID 14 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 15 with title ID 15 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 16 with title ID 16 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 17 with title ID 17 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 18 with title ID 18 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 19 with title ID 19 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 20 with title ID 20 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 21 with title ID 21 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 22 with title ID 22 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 23 with title ID 23 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 24 with title ID 24 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 25 with title ID 25 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 26 with title ID 26 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 27 with title ID 27 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 28 with title ID 28 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 29 with title ID 29 contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 30 with title ID 30 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent CentralConc, PeripheralConc.

Set Up a Two-Compartment Model

Use the built-in PK library to construct a two-compartment model with infusion dosing and first-order elimination where the elimination rate depends on the clearance and volume of the central compartment. Use the configset object to turn on unit conversion.

pkmd                                    = PKModelDesign;
pkc1                                    = addCompartment(pkmd,'Central');
pkc1.DosingType                         = 'Bolus';
pkc1.EliminationType                    = 'linear-clearance';
pkc1.HasResponseVariable                = true;
pkc2                                    = addCompartment(pkmd,'Peripheral');
model                                   = construct(pkmd);
configset                               = getconfigset(model);
configset.CompileOptions.UnitConversion = true;

For details on creating compartmental PK models using the SimBiology® built-in library, see Create Pharmacokinetic Models.

Define Dosing

Assume every individual receives a bolus dose of 100 mg at time = 0. For details on setting up different dosing strategies, see Doses in SimBiology Models.

dose             = sbiodose('dose','TargetName','Drug_Central');
dose.StartTime   = 0;
dose.Amount      = 100;
dose.AmountUnits = 'milligram';
dose.TimeUnits   = 'hour';

Map the Response Data to Corresponding Model Components

The data contains measured plasma concentration in the central and peripheral compartments. Map these variables to the appropriate model components, which are Drug_Central and Drug_Peripheral.

responseMap = {'Drug_Central = CentralConc','Drug_Peripheral = PeripheralConc'};

Specify Parameters to Estimate

Specify the volumes of central and peripheral compartments Central and Peripheral, intercompartmental clearance Q12, and clearance Cl_Central as parameters to estimate. The estimatedInfo object lets you optionally specify parameter transforms, initial values, and parameter bounds. Since both Central and Peripheral are constrained to be positive, specify a log-transform for each parameter.

paramsToEstimate    = {'log(Central)', 'log(Peripheral)', 'Q12', 'Cl_Central'};
estimatedParam      = estimatedInfo(paramsToEstimate,'InitialValue',[1 1 1 1]);

Estimate Individual-Specific Parameters

Estimate one set of parameters for each individual by setting the 'Pooled' name-value pair argument to false.

unpooledFit =  sbiofit(model,gData,responseMap,estimatedParam,dose,'Pooled',false);

Display Results

Plot the fitted results versus the original data for each individual (group).

plot(unpooledFit);

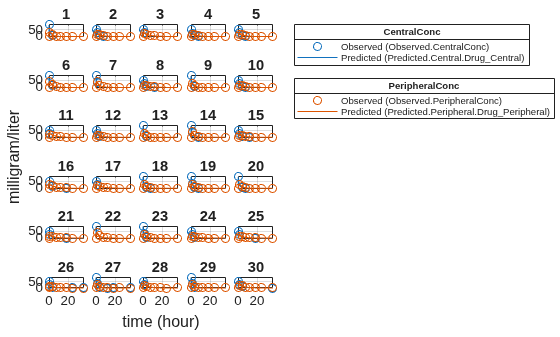

Figure contains 32 axes objects. Axes object 1 with title 30 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title 29 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with title 28 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 4 with title 27 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 5 with title 26 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 6 with title 25 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title 24 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title 23 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title 22 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title 21 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title 20 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title 19 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 13 with title 18 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 14 with title 17 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 15 with title 16 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 16 with title 15 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 17 with title 14 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 18 with title 13 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 19 with title 12 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 20 with title 11 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 21 with title 10 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 22 with title 9 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 23 with title 8 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 24 with title 7 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 25 with title 6 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 26 with title 5 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 27 with title 4 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 28 with title 3 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 29 with title 2 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 30 with title 1 contains 4 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 31 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Central.Drug_Central), Observed (Observed.CentralConc). Hidden axes object 32 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Peripheral.Drug_Peripheral), Observed (Observed.PeripheralConc).

For an unpooled fit, sbiofit always returns one results object for each individual.

Examine Parameter Estimates for Category Dependencies

Explore the unpooled estimates to see if there is any category-specific parameters, that is, if some parameters are related to one or more categories. If there are any category dependencies, it might be possible to reduce the number of degrees of freedom by estimating just category-specific values for those parameters.

First extract the ID and category values for each ID

catParamValues = unique(gData(:,{'ID','Sex','Age'}));

Add variables to the table containing each parameter's estimate.

allParamValues            = vertcat(unpooledFit.ParameterEstimates);
catParamValues.Central    = allParamValues.Estimate(strcmp(allParamValues.Name, 'Central'));
catParamValues.Peripheral = allParamValues.Estimate(strcmp(allParamValues.Name, 'Peripheral'));
catParamValues.Q12        = allParamValues.Estimate(strcmp(allParamValues.Name, 'Q12'));
catParamValues.Cl_Central = allParamValues.Estimate(strcmp(allParamValues.Name, 'Cl_Central'));

Plot estimates of each parameter for each category. gscatter requires Statistics and Machine Learning Toolbox™. If you do not have it, use other alternative plotting functions such as plot.

h           = figure;
ylabels     = ["Central","Peripheral","Q12","Cl\_Central"];
plotNumber  = 1;
for i = 1:4
    thisParam = estimatedParam(i).Name;

    % Plot for Sex category
    subplot(4,2,plotNumber);
    plotNumber  = plotNumber + 1;
    gscatter(double(catParamValues.Sex), catParamValues.(thisParam), catParamValues.Sex);
    ax          = gca;
    ax.XTick    = [];
    ylabel(ylabels(i));
    legend('Location','bestoutside')
    % Plot for Age category
    subplot(4,2,plotNumber);
    plotNumber  = plotNumber + 1;
    gscatter(double(catParamValues.Age), catParamValues.(thisParam), catParamValues.Age);
    ax          = gca;
    ax.XTick    = [];
    ylabel(ylabels(i));
    legend('Location','bestoutside')
end
% Resize the figure.
h.Position(:) = [100 100 1280 800];

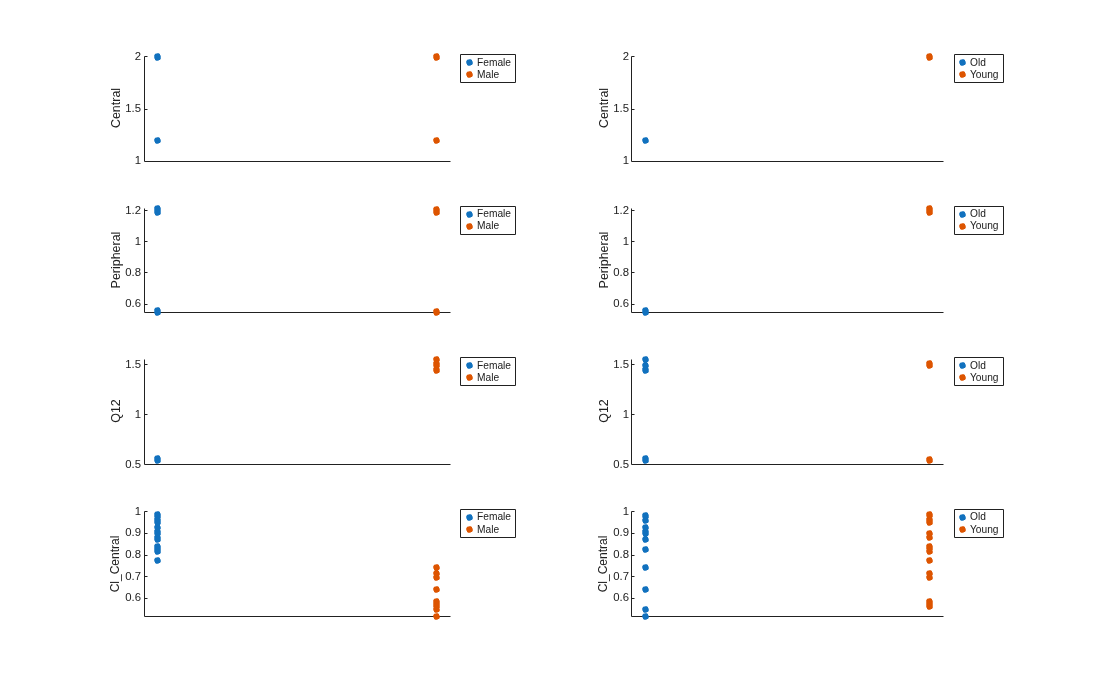

Figure contains 8 axes objects. Axes object 1 with ylabel Central contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Female, Male. Axes object 2 with ylabel Central contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Old, Young. Axes object 3 with ylabel Peripheral contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Female, Male. Axes object 4 with ylabel Peripheral contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Old, Young. Axes object 5 with ylabel Q12 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Female, Male. Axes object 6 with ylabel Q12 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Old, Young. Axes object 7 with ylabel Cl\_Central contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Female, Male. Axes object 8 with ylabel Cl\_Central contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Old, Young.

Based on the plot, it seems that young individuals tend to have higher volumes of central and peripheral compartments (Central, Peripheral) than old individuals (that is, the volumes seem to be age-specific). In addition, males tend to have lower clearance rates (Cl_Central) than females but the opposite for the Q12 parameter (that is, the clearance and Q12 seem to be sex-specific).

Estimate Category-Specific Parameters

Use the 'CategoryVariableName' property of the estimatedInfo object to specify which category to use during fitting. Use 'Sex' as the group to fit for the clearance Cl_Central and Q12 parameters. Use 'Age' as the group to fit for the Central and Peripheral parameters.

estimatedParam(1).CategoryVariableName = 'Age';
estimatedParam(2).CategoryVariableName = 'Age';
estimatedParam(3).CategoryVariableName = 'Sex';
estimatedParam(4).CategoryVariableName = 'Sex';
categoryFit = sbiofit(model,gData,responseMap,estimatedParam,dose)
categoryFit =
  OptimResults with properties:

                   ExitFlag: 3
                     Output: [1×1 struct]
                  GroupName: []
                       Beta: [8×5 table]
         ParameterEstimates: [120×6 table]
                          J: [240×8×2 double]
                       COVB: [8×8 double]
           CovarianceMatrix: [8×8 double]
                          R: [240×2 double]
                        MSE: 0.4362
                        SSE: 205.8690
                    Weights: []
              LogLikelihood: -477.9195
                        AIC: 971.8390
                        BIC: 1.0052e+03
                        DFE: 472
             DependentFiles: {1×3 cell}
                       Data: [240×6 groupedData]
    EstimatedParameterNames: {'Central'  'Peripheral'  'Q12'  'Cl_Central'}
             ErrorModelInfo: [1×3 table]
         EstimationFunction: 'lsqnonlin'

When fitting by category (or group), sbiofit always returns one results object, not one for each category level. This is because both male and female individuals are considered to be part of the same optimization using the same error model and error parameters, similarly for the young and old individuals.

Plot Results

Plot the category-specific estimated results.

plot(categoryFit);

Figure contains 32 axes objects. Axes object 1 with title 30 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title 29 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with title 28 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 4 with title 27 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 5 with title 26 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 6 with title 25 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title 24 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title 23 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title 22 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title 21 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title 20 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title 19 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 13 with title 18 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 14 with title 17 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 15 with title 16 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 16 with title 15 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 17 with title 14 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 18 with title 13 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 19 with title 12 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 20 with title 11 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 21 with title 10 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 22 with title 9 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 23 with title 8 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 24 with title 7 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 25 with title 6 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 26 with title 5 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 27 with title 4 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 28 with title 3 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 29 with title 2 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 30 with title 1 contains 4 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 31 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Central.Drug_Central), Observed (Observed.CentralConc). Hidden axes object 32 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Peripheral.Drug_Peripheral), Observed (Observed.PeripheralConc).

For the Cl_Central and Q12 parameters, all males had the same estimates, and similarly for the females. For the Central and Peripheral parameters, all young individuals had the same estimates, and similarly for the old individuals.

Estimate Population-Wide Parameters

To better compare the results, fit the model to all of the data pooled together, that is, estimate one set of parameters for all individuals by setting the 'Pooled' name-value pair argument to true. The warning message tells you that this option will ignore any category-specific information (if they exist).

pooledFit = sbiofit(model,gData,responseMap,estimatedParam,dose,'Pooled',true);
Warning: CategoryVariableName property of the estimatedInfo object is ignored when using the 'Pooled' option.

Plot Results

Plot the fitted results versus the original data. Although a separate plot was generated for each individual, the data was fitted using the same set of parameters (that is, all individuals had the same fitted line).

plot(pooledFit);

Figure contains 32 axes objects. Axes object 1 with title 30 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title 29 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with title 28 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 4 with title 27 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 5 with title 26 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 6 with title 25 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title 24 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title 23 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title 22 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title 21 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title 20 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title 19 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 13 with title 18 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 14 with title 17 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 15 with title 16 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 16 with title 15 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 17 with title 14 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 18 with title 13 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 19 with title 12 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 20 with title 11 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 21 with title 10 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 22 with title 9 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 23 with title 8 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 24 with title 7 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 25 with title 6 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 26 with title 5 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 27 with title 4 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 28 with title 3 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 29 with title 2 contains 4 objects of type line. One or more of the lines displays its values using only markers Axes object 30 with title 1 contains 4 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 31 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Central.Drug_Central), Observed (Observed.CentralConc). Hidden axes object 32 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Peripheral.Drug_Peripheral), Observed (Observed.PeripheralConc).

Compare Residuals

Compare residuals of CentralConc and PeripheralConc responses for each fit.

t = gData.Time;
allResid(:,:,1) = pooledFit.R;
allResid(:,:,2) = categoryFit.R;
allResid(:,:,3) = vertcat(unpooledFit.R);

h = figure;
responseList = {'CentralConc', 'PeripheralConc'};
for i = 1:2
    subplot(2,1,i);
    oneResid = squeeze(allResid(:,i,:));
    plot(t,oneResid,'o');
    refline(0,0); % A reference line representing a zero residual
    title(sprintf('Residuals (%s)', responseList{i}));
    xlabel('Time');
    ylabel('Residuals');
    legend({'Pooled','Category-Specific','Unpooled'});
end
% Resize the figure.
h.Position(:) = [100 100 1280 800];

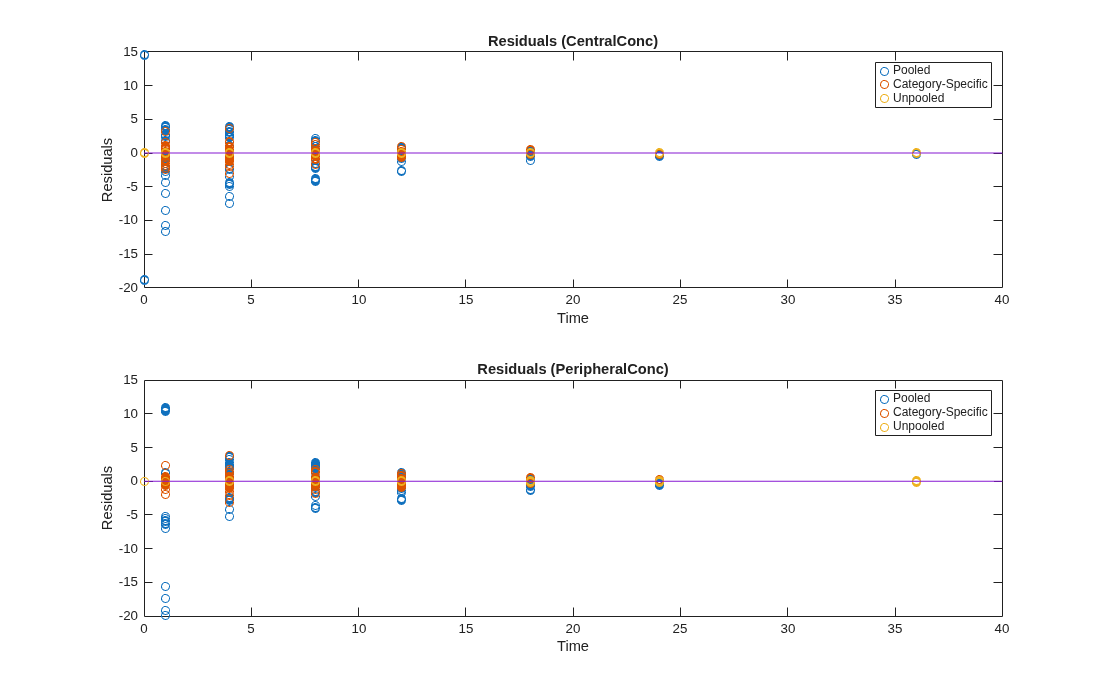

Figure contains 2 axes objects. Axes object 1 with title Residuals (CentralConc), xlabel Time, ylabel Residuals contains 4 objects of type line. One or more of the lines displays its values using only markers These objects represent Pooled, Category-Specific, Unpooled. Axes object 2 with title Residuals (PeripheralConc), xlabel Time, ylabel Residuals contains 4 objects of type line. One or more of the lines displays its values using only markers These objects represent Pooled, Category-Specific, Unpooled.

As shown in the plot, the unpooled fit produced the best fit to the data as it fit the data to each individual. This was expected since it used the most number of degrees of freedom. The category-fit reduced the number of degrees of freedom by fitting the data to two categories (sex and age). As a result, the residuals were larger than the unpooled fit, but still smaller than the population-fit, which estimated just one set of parameters for all individuals. The category-fit might be a good compromise between the unpooled and pooled fitting provided that any hierarchical model exists within your data.

This example uses the yeast heterotrimeric G protein model and experimental data reported by [1]. For details about the model, see the Background section in Parameter Scanning, Parameter Estimation, and Sensitivity Analysis in the Yeast Heterotrimeric G Protein Cycle.

Load the G protein model.

sbioloadproject gprotein

Store the experimental data containing the time course for the fraction of active G protein.

time = [0 10 30 60 110 210 300 450 600]';
GaFracExpt = [0 0.35 0.4 0.36 0.39 0.33 0.24 0.17 0.2]';

Create a groupedData object based on the experimental data.

tbl = table(time,GaFracExpt);
grpData = groupedData(tbl);

Map the appropriate model component to the experimental data. In other words, indicate which species in the model corresponds to which response variable in the data. In this example, map the model parameter GaFrac to the experimental data variable GaFracExpt from grpData.

responseMap = 'GaFrac = GaFracExpt';

Use an estimatedInfo object to define the model parameter kGd as a parameter to be estimated.

estimatedParam = estimatedInfo('kGd');

Perform the parameter estimation.

fitResult = sbiofit(m1,grpData,responseMap,estimatedParam);

View the estimated parameter value of kGd.

fitResult.ParameterEstimates
ans=1×3 table
     Name      Estimate    StandardError
    _______    ________    _____________

    {'kGd'}    0.11307      3.4439e-05

Suppose you want to plot the model simulation results using the estimated parameter value. You can either rerun the sbiofit function and specify to return the optional second output argument, which contains simulation results, or use the fitted method to retrieve the results without rerunning sbiofit.

[yfit,paramEstim] = fitted(fitResult);

Plot the simulation results.

sbioplot(yfit);

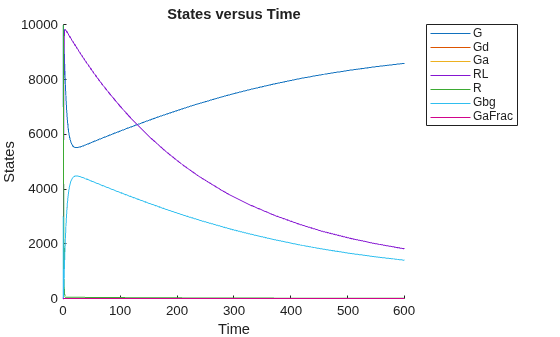

Figure contains an axes object. The axes object with title States versus Time, xlabel Time, ylabel States contains 7 objects of type line. These objects represent G, Gd, Ga, RL, R, Gbg, GaFrac.

This example shows how to estimate the time lag before a bolus dose was administered and the duration of the dose using a one-compartment model.

Load a sample data set.

load lagDurationData.mat

Plot the data.

plot(data.Time,data.Conc,'x')
xlabel('Time (hour)')
ylabel('Conc (milligram/liter)')

Figure contains an axes object. The axes object with xlabel Time (hour), ylabel Conc (milligram/liter) contains a line object which displays its values using only markers.

Convert to groupedData.

gData = groupedData(data);
gData.Properties.VariableUnits = {'hour','milligram/liter'};

Create a one-compartment model.

pkmd                    = PKModelDesign;
pkc1                    = addCompartment(pkmd,'Central');
pkc1.DosingType         = 'Bolus';
pkc1.EliminationType    = 'linear-clearance';
pkc1.HasResponseVariable = true;
model                   = construct(pkmd);
configset               = getconfigset(model);
configset.CompileOptions.UnitConversion = true;

Add two parameters that represent the time lag and duration of a dose. The lag parameter specifies the time lag before the dose is administered. The duration parameter specifies the length of time it takes to administer a dose.

lagP = addparameter(model,'lagP');
lagP.ValueUnits = 'hour';
durP = addparameter(model,'durP');
durP.ValueUnits = 'hour';

Create a dose object. Set the LagParameterName and DurationParameterName properties of the dose to the names of the lag and duration parameters, respectively. Set the dose amount to 10 milligram which was the amount used to generate the data.

dose                = sbiodose('dose');
dose.TargetName     = 'Drug_Central';
dose.StartTime      = 0;
dose.Amount         = 10;
dose.AmountUnits    = 'milligram';
dose.TimeUnits      = 'hour';
dose.LagParameterName = 'lagP';
dose.DurationParameterName = 'durP';

Map the model species to the corresponding data.

responseMap = {'Drug_Central = Conc'};

Specify the lag and duration parameters as parameters to estimate. Log-transform the parameters. Initialize them to 2 and set the upper bound and lower bound.

paramsToEstimate    = {'log(lagP)','log(durP)'};
estimatedParams     = estimatedInfo(paramsToEstimate,'InitialValue',2,'Bounds',[1 5]);

Perform parameter estimation.

fitResults = sbiofit(model,gData,responseMap,estimatedParams,dose,'fminsearch')
fitResults =
  OptimResults with properties:

                   ExitFlag: 1
                     Output: [1×1 struct]
                  GroupName: One group
                       Beta: [2×4 table]
         ParameterEstimates: [2×4 table]
                          J: [11×2 double]
                       COVB: [2×2 double]
           CovarianceMatrix: [2×2 double]
                          R: [11×1 double]
                        MSE: 0.0024
                        SSE: 0.0213
                    Weights: []
              LogLikelihood: 18.7511
                        AIC: -33.5023
                        BIC: -32.7065
                        DFE: 9
             DependentFiles: {1×2 cell}
                       Data: [11×2 groupedData]
    EstimatedParameterNames: {'lagP'  'durP'}
             ErrorModelInfo: [1×3 table]
         EstimationFunction: 'fminsearch'

Display the result.

fitResults.ParameterEstimates
ans=2×4 table
      Name      Estimate    StandardError    Bounds
    ________    ________    _____________    ______

    {'lagP'}     1.986        0.0051568      1    5
    {'durP'}     1.527         0.012956      1    5

plot(fitResults)

Figure contains 2 axes objects. Axes object 1 contains 2 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 2 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Central.Drug_Central), Observed (Observed.Conc).

Import data to use for fitting. It comprises 12 groups of measurements across three responses: Drug, Target, and Complex. The Drug response includes measurements for all 12 groups, whereas the Target and Complex responses have measurements for only 8 and 4 groups, respectively. A group could represent a patient or an experimental or biological condition. Ndrug, Ntarget, and Ncomplex columns represent the constant number of groups that have the measurements for the corresponding responses. Each group has its own dosing amount, represented by the Dose column.

dataTMDD = readtable('tmddData_final.csv');

Display the first few rows of the data set.

head(dataTMDD)
    ID    Time    Dose      Drug       Target    Complex    Ndrug    Ntarget    Ncomplex
    __    ____    ____    _________    ______    _______    _____    _______    ________

    1       0      10           NaN       NaN        NaN     12         8          4
    1     0.5     NaN        1.2131    10.116    0.36602     12         8          4
    1       1     NaN       0.74803    9.4694    0.61803     12         8          4
    1       2     NaN       0.28601    9.2434    0.84304     12         8          4
    1       4     NaN      0.048002    9.6184    0.83204     12         8          4
    1       8     NaN     0.0080003    9.6334    0.67203     12         8          4
    1      12     NaN     0.0060003    9.4574    0.54002     12         8          4
    1      16     NaN     0.0050002    9.7914    0.40502     12         8          4

Convert the data to a groupedData format.

gData = groupedData(dataTMDD);
gData.Properties.VariableUnits = ["","hour","nanomole","nanomole/liter","nanomole/liter","nanomole/liter","","",""];
gData.Properties.GroupVariableName = "ID";
gData.Properties.IndependentVariableName = "Time";

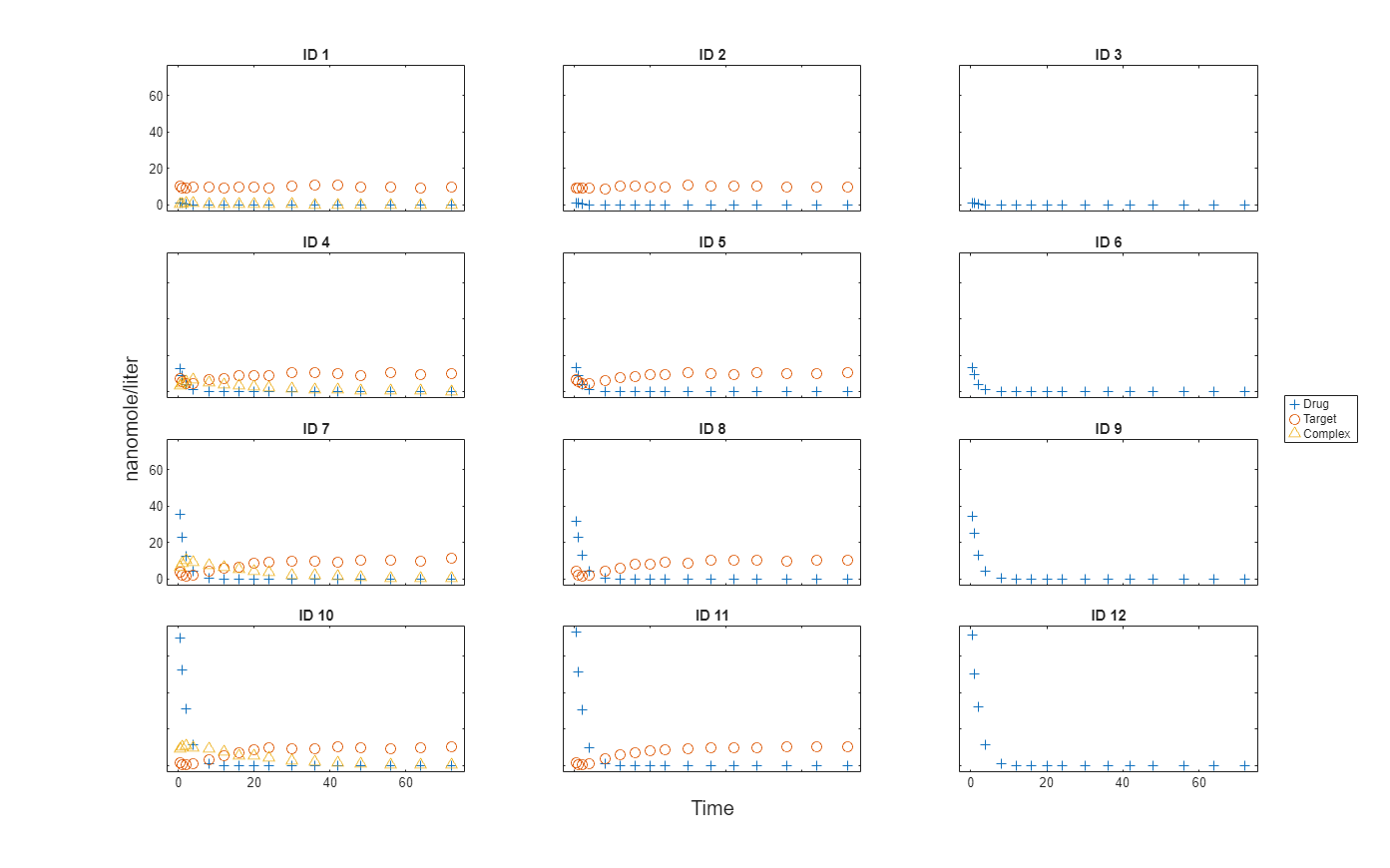

Plot the responses: Drug, Target, and Complex.

t = sbiotrellis(gData,"ID","Time","Drug",Marker="+",LineStyle="none");
plot(t,gData,"ID","Time","Target",Marker="o",LineStyle="none");
plot(t,gData,"ID","Time","Complex",Marker="^",LineStyle="none");
t.hFig.Position = [100 100 1280 800];
t.YLabel = "nanomole/liter";

Figure contains 12 axes objects. Axes object 1 with title ID 1 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title ID 2 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with title ID 3 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 4 with title ID 4 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 5 with title ID 5 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 6 with title ID 6 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title ID 7 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title ID 8 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title ID 9 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title ID 10 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title ID 11 contains 3 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title ID 12 contains 3 objects of type line. One or more of the lines displays its values using only markers These objects represent Drug, Target, Complex.

Load the target-mediated drug deposition (TMDD) model. For details about the model, see Scan Dosing Regimens Using SimBiology Model Analyzer App.

sbioloadproject("tmdd_with_TO.sbproj","m1");

The data has 12 groups of measurements, and each group has its own dose amount. Create a corresponding dose object for each group using the dosing information from the data. During the subsequent fitting step, the fit function applies each dose to each group in the same order that the groups appear in the input data. For details on setting up doses, see dosing.

dose = sbiodose("Dose");
dose.TargetName = "Plasma.Drug";
doses = createDoses(gData,"Dose","",dose);

Specify parameters to estimate and their initial values. Also set upper and lower parameter bounds.

paramsToEstimate = estimatedInfo(["log(km)","log(kon)","log(koff)"],InitialValue=0.01,Bounds=[1e-05 1]);

Map the measurement data to the corresponding model components.

responseMap = ["Plasma.Drug = Drug",...
               "Plasma.Target = Target",...
               "Plasma.Complex = Complex"];

Define the algorithm options.

options                     = optimoptions("lsqnonlin");
options.StepTolerance       = 1e-08;
options.FunctionTolerance   = 1e-08;
options.OptimalityTolerance = 1e-06;
options.MaxIterations       = 100;

Define the fit problem.

f              = fitproblem(FitFunction="sbiofit");
f.Data         = gData;
f.Estimated    = paramsToEstimate;
f.Model        = m1;
f.ResponseMap  = responseMap;

f.Doses        = doses;
f.FunctionName = "lsqnonlin";
f.Options      = options;
f.Pooled       = true;
f.ProgressPlot = true;

Run the fit with weights set to 1.

f.Weights = [ones(size(gData.Drug)) ones(size(gData.Target)) ones(size(gData.Complex))];
fitEqualWeights = fit(f);

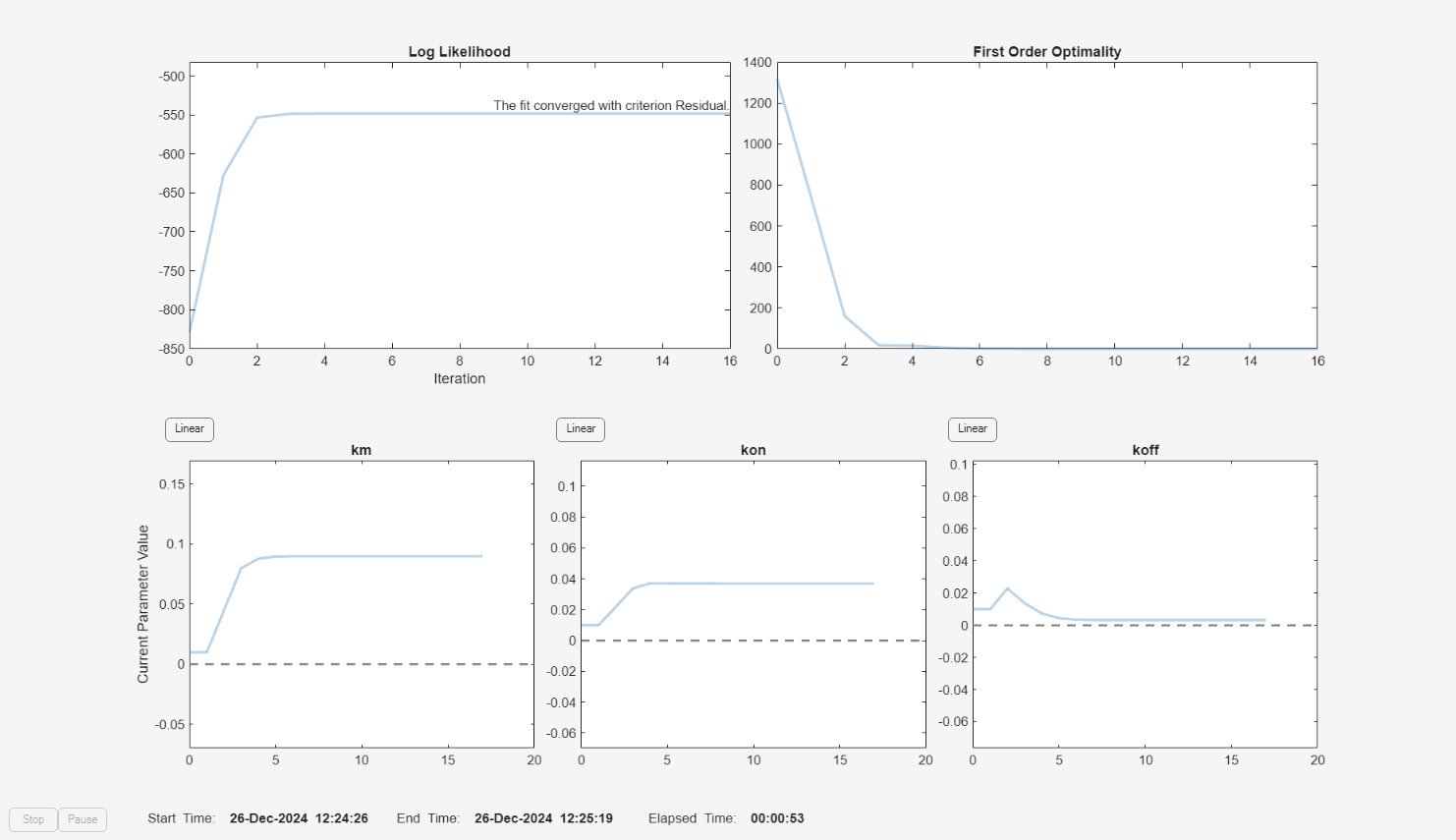

Figure Progress Plot for lsqnonlin contains 6 axes objects and other objects of type uicontrol. Axes object 1 with title Log Likelihood, xlabel Iteration contains 2 objects of type line, text. Axes object 2 with title First Order Optimality contains an object of type line. Axes object 3 with title km, ylabel Current Parameter Value contains 2 objects of type line. Axes object 4 with title kon contains 2 objects of type line. Axes object 5 with title koff contains 2 objects of type line. Hidden axes object 6 contains an object of type text.

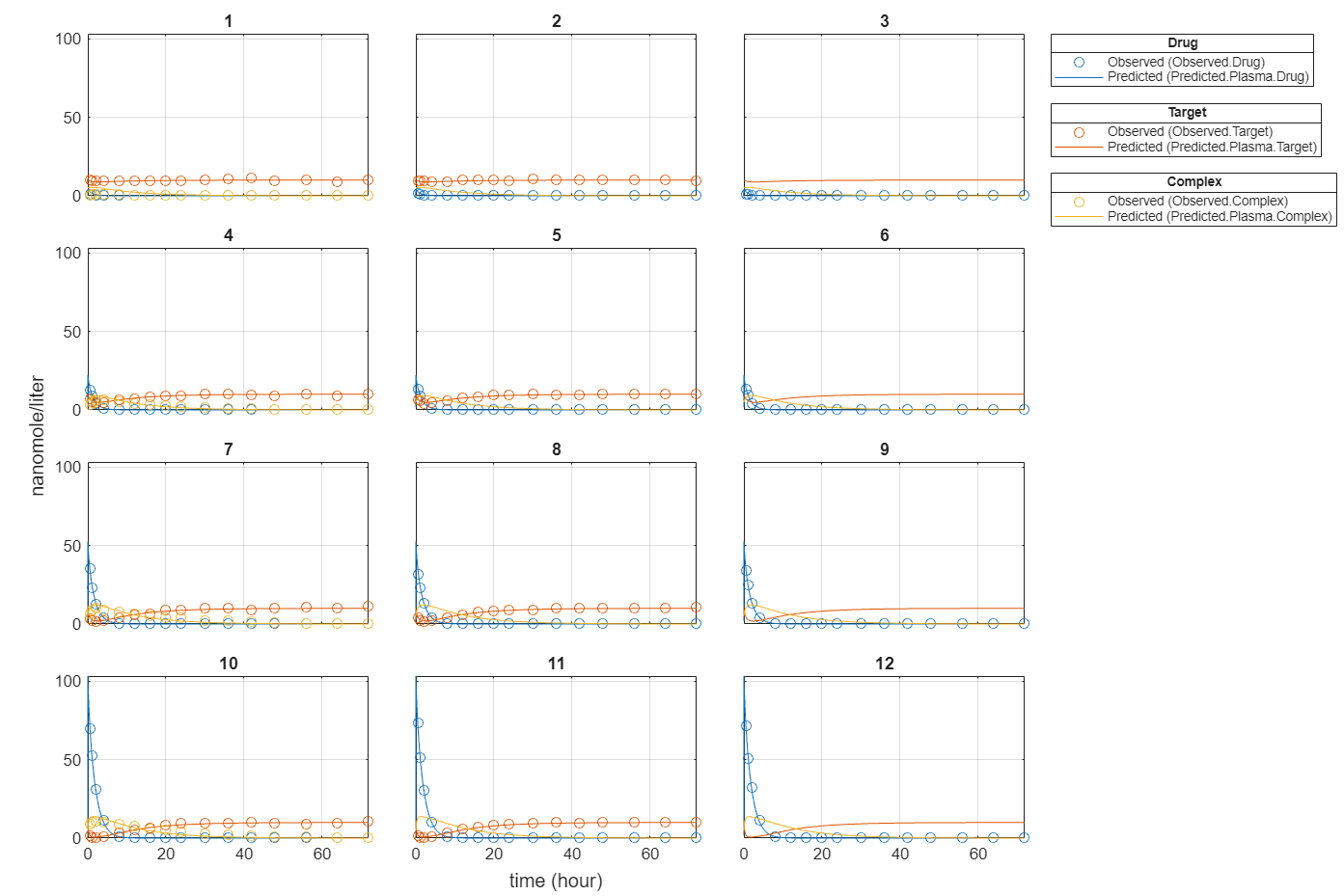

plot(fitEqualWeights);

Figure contains 15 axes objects. Axes object 1 with title 12 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title 11 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with title 10 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 4 with title 9 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 5 with title 8 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 6 with title 7 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title 6 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title 5 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title 4 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title 3 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title 2 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title 1 contains 6 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 13 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Drug), Observed (Observed.Drug). Hidden axes object 14 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Target), Observed (Observed.Target). Hidden axes object 15 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Complex), Observed (Observed.Complex).

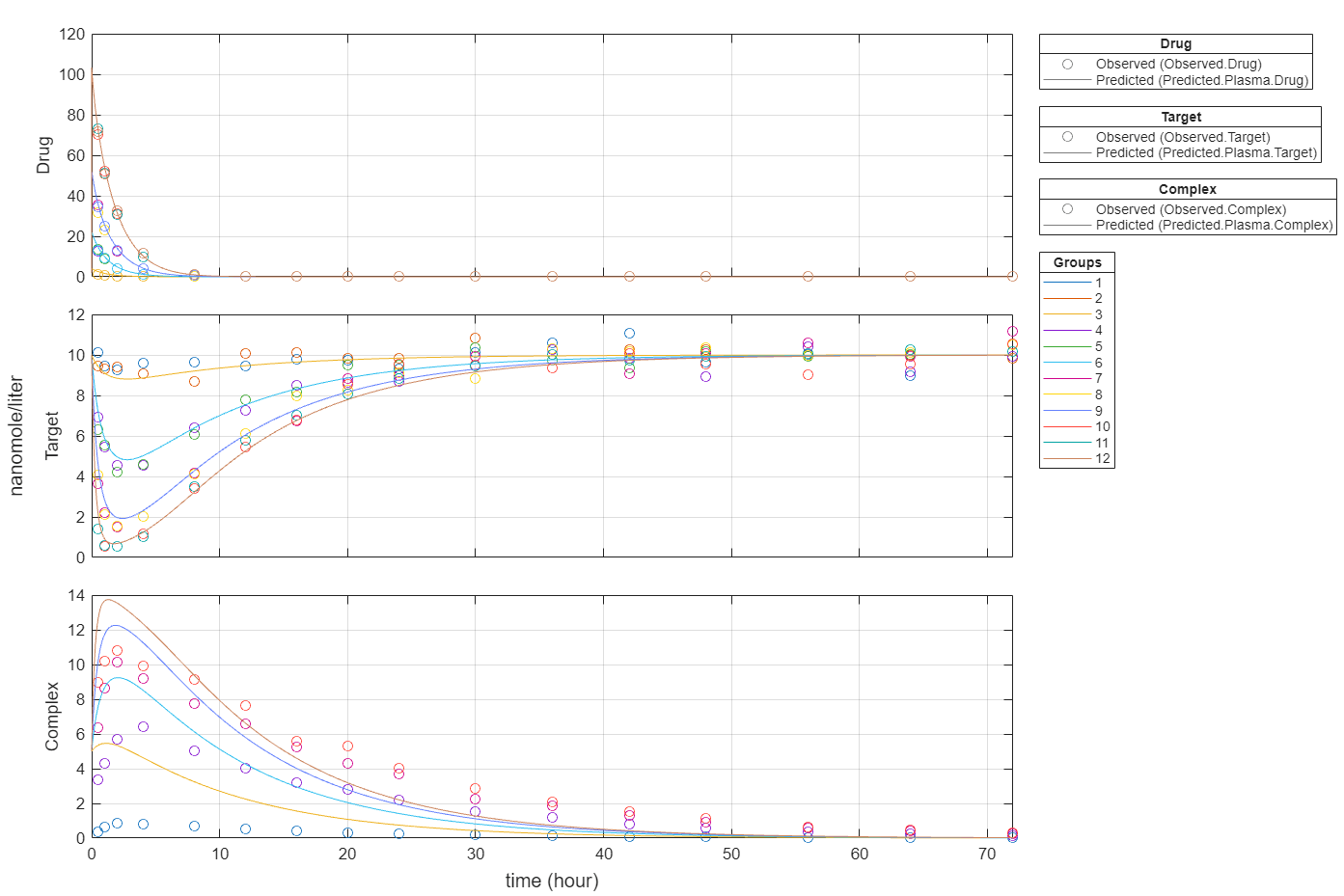

Plot all groups in one plot for each response.

plot(fitEqualWeights,PlotStyle="one axes");

Figure contains 7 axes objects. Axes object 1 with ylabel Complex contains 24 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with ylabel Target contains 24 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with ylabel Drug contains 24 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 4 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Drug), Observed (Observed.Drug). Hidden axes object 5 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Target), Observed (Observed.Target). Hidden axes object 6 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Complex), Observed (Observed.Complex). Hidden axes object 7 contains 12 objects of type line. These objects represent 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1.

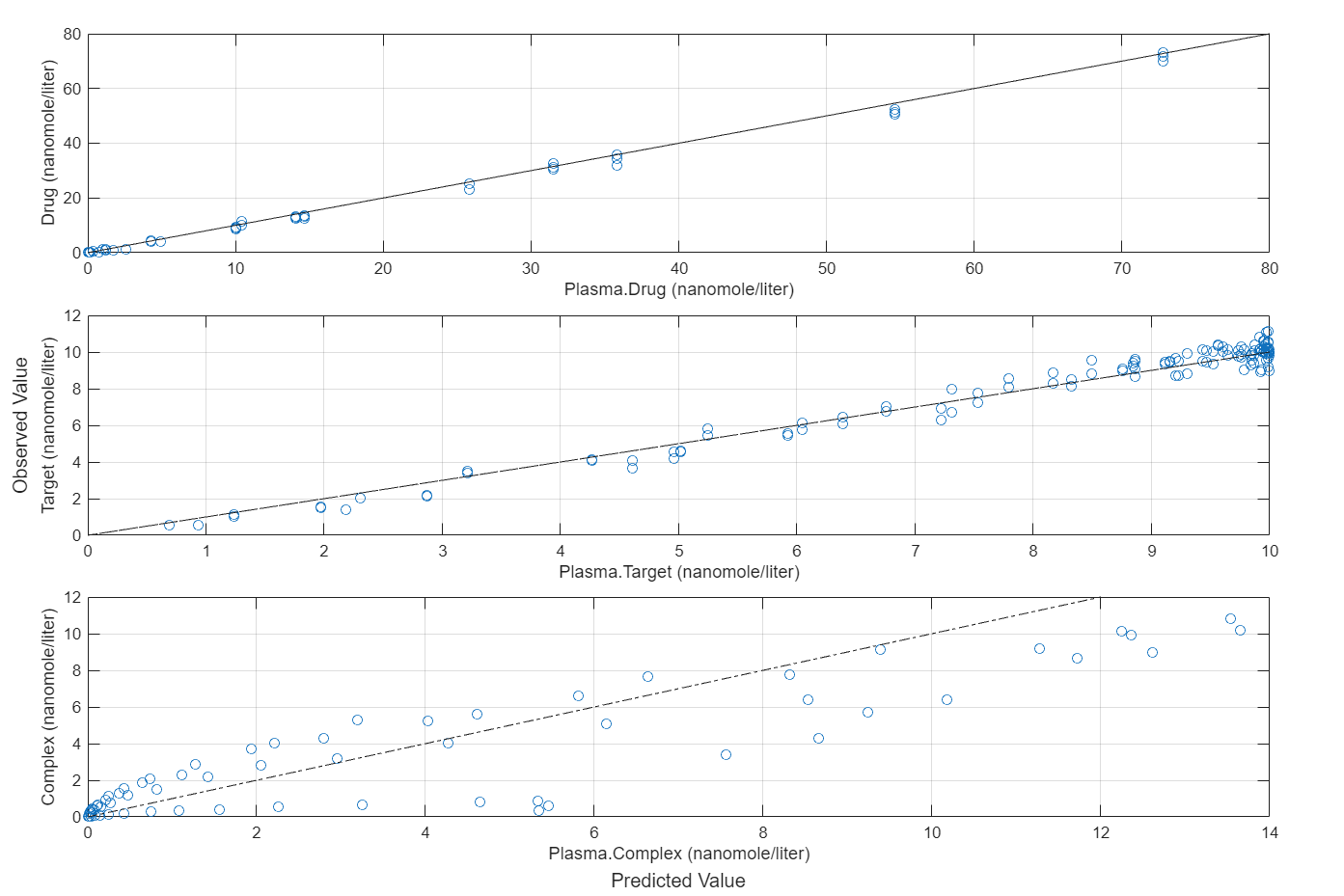

Compare the predictions to the actual data.

plotActualVersusPredicted(fitEqualWeights)

Figure contains 3 axes objects. Axes object 1 with xlabel Plasma.Complex (nanomole/liter), ylabel Complex (nanomole/liter) contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with xlabel Plasma.Target (nanomole/liter), ylabel Target (nanomole/liter) contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with xlabel Plasma.Drug (nanomole/liter), ylabel Drug (nanomole/liter) contains 2 objects of type line. One or more of the lines displays its values using only markers

In this data set, the response Drug has 12 groups of measurements, Target has 8 groups of measurements, and Complex has 4 groups of measurements. The varying number of measurements among these responses might stem from the experimental design. To address these differences, you might consider experimenting with weights that are inversely proportional to the number of measurement groups.

f.Weights = [1./gData.Ndrug 1./gData.Ntarget 1./gData.Ncomplex];
fitInverseWeights = fit(f);

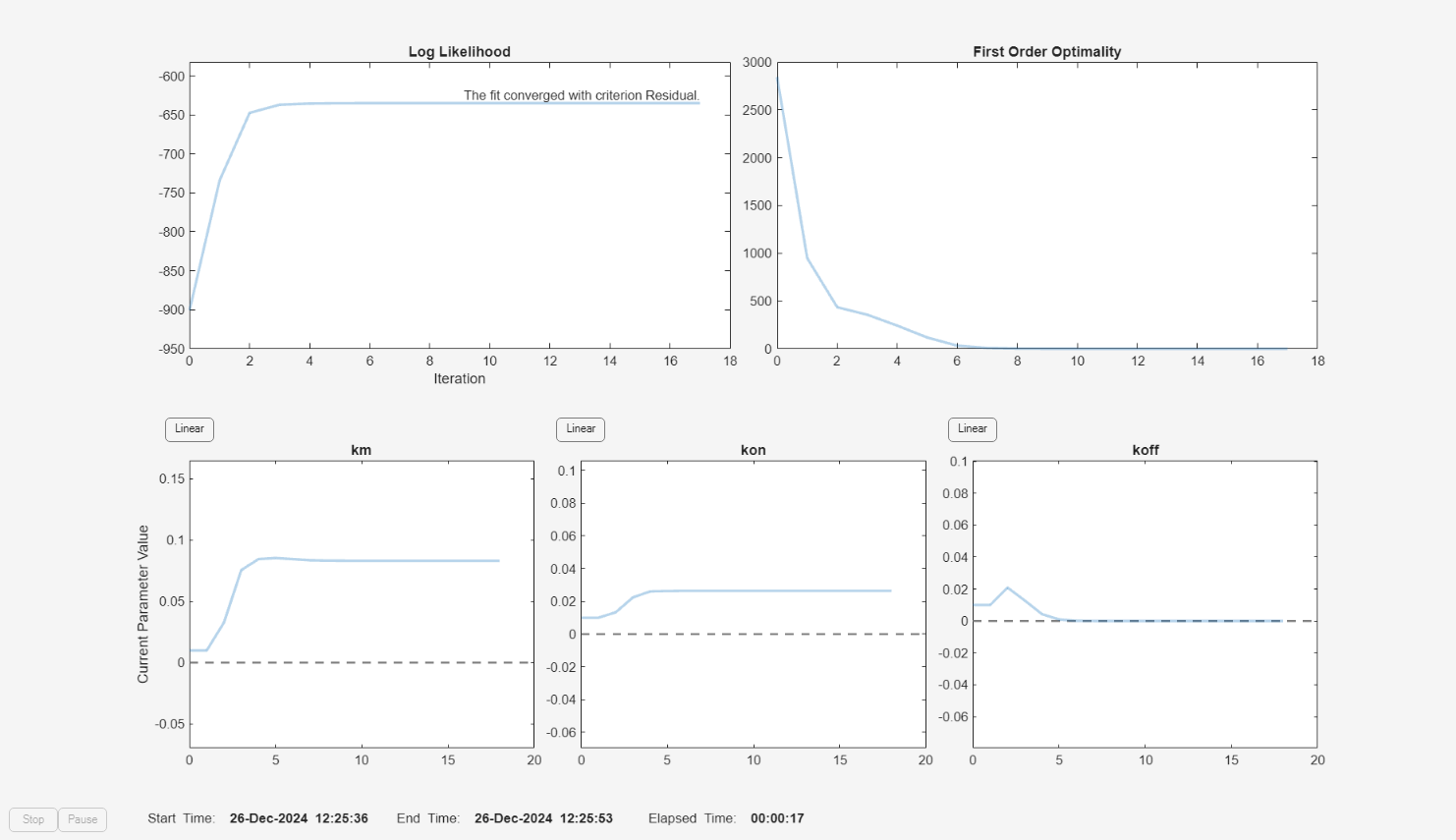

Figure Progress Plot for lsqnonlin contains 6 axes objects and other objects of type uicontrol. Axes object 1 with title Log Likelihood, xlabel Iteration contains 2 objects of type line, text. Axes object 2 with title First Order Optimality contains an object of type line. Axes object 3 with title km, ylabel Current Parameter Value contains 2 objects of type line. Axes object 4 with title kon contains 2 objects of type line. Axes object 5 with title koff contains 2 objects of type line. Hidden axes object 6 contains an object of type text.

plot(fitInverseWeights);

Figure contains 15 axes objects. Axes object 1 with title 12 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with title 11 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with title 10 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 4 with title 9 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 5 with title 8 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 6 with title 7 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 7 with title 6 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 8 with title 5 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 9 with title 4 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 10 with title 3 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 11 with title 2 contains 6 objects of type line. One or more of the lines displays its values using only markers Axes object 12 with title 1 contains 6 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 13 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Drug), Observed (Observed.Drug). Hidden axes object 14 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Target), Observed (Observed.Target). Hidden axes object 15 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Complex), Observed (Observed.Complex).

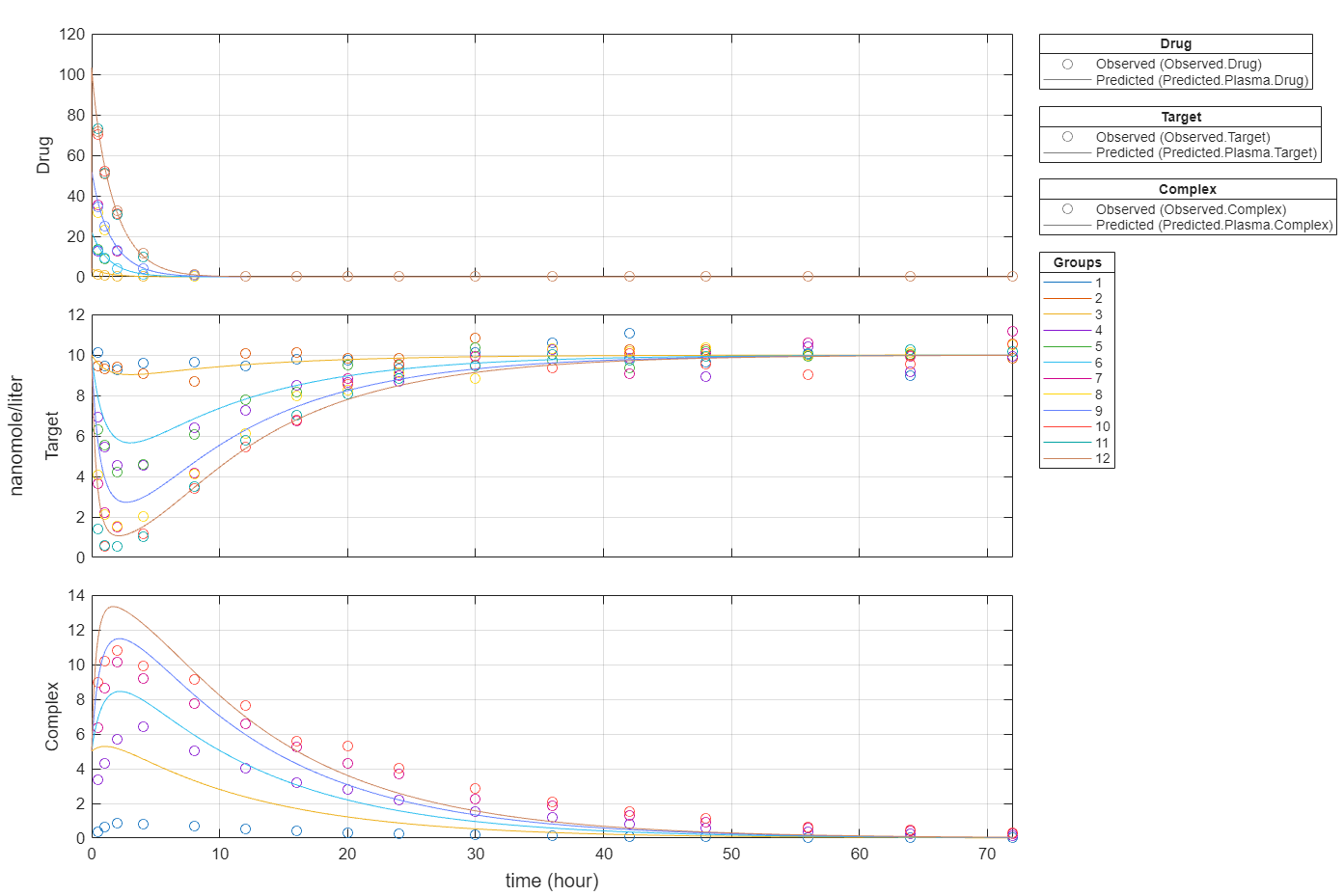

Plot all groups in one plot for each response.

plot(fitInverseWeights,PlotStyle="one axes");

Figure contains 7 axes objects. Axes object 1 with ylabel Complex contains 24 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with ylabel Target contains 24 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with ylabel Drug contains 24 objects of type line. One or more of the lines displays its values using only markers Hidden axes object 4 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Drug), Observed (Observed.Drug). Hidden axes object 5 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Target), Observed (Observed.Target). Hidden axes object 6 contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted (Predicted.Plasma.Complex), Observed (Observed.Complex). Hidden axes object 7 contains 12 objects of type line. These objects represent 12, 11, 10, 9, 8, 7, 6, 5, 4, 3, 2, 1.

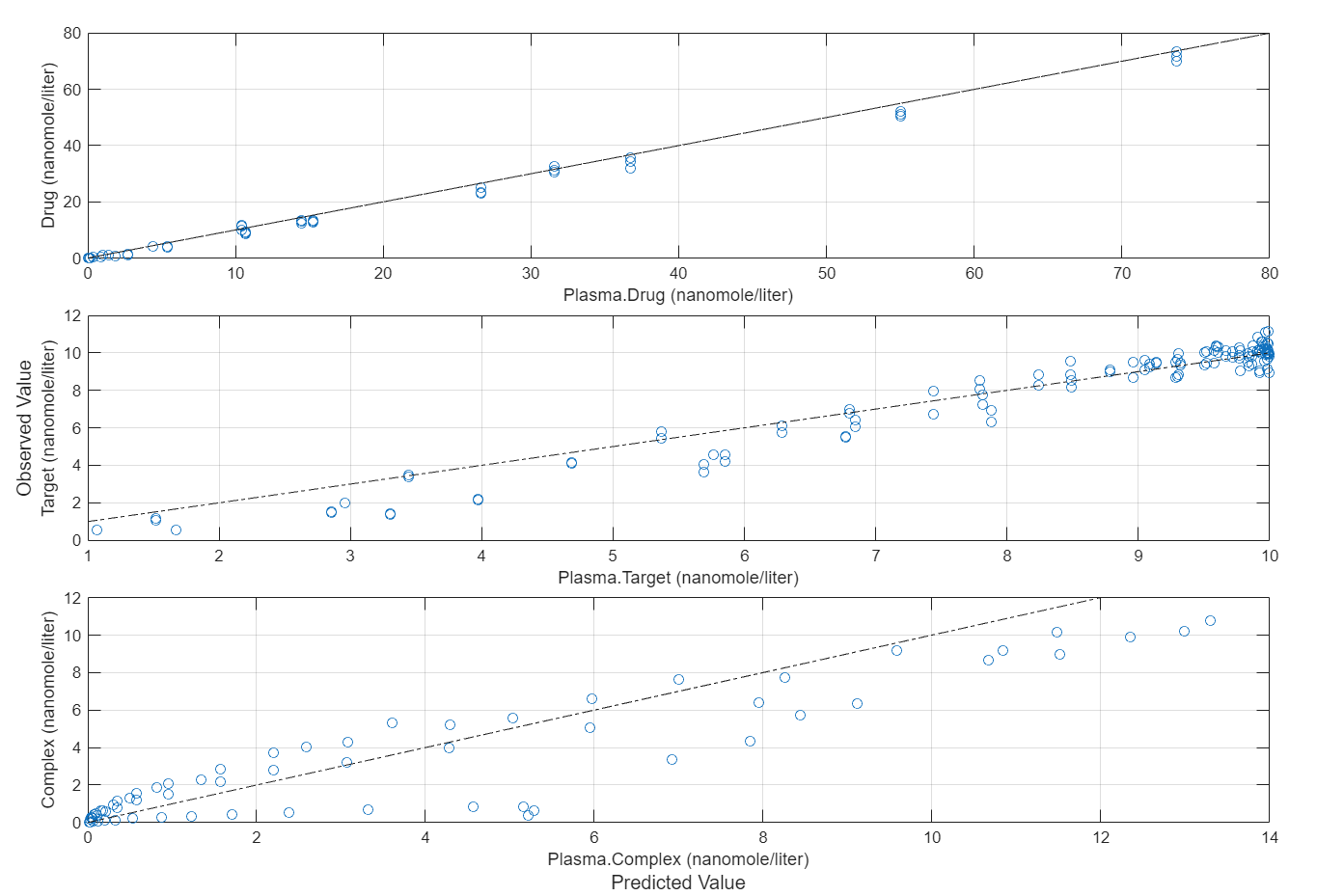

Compare the predictions to the actual data.

plotActualVersusPredicted(fitInverseWeights)

Figure contains 3 axes objects. Axes object 1 with xlabel Plasma.Complex (nanomole/liter), ylabel Complex (nanomole/liter) contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 2 with xlabel Plasma.Target (nanomole/liter), ylabel Target (nanomole/liter) contains 2 objects of type line. One or more of the lines displays its values using only markers Axes object 3 with xlabel Plasma.Drug (nanomole/liter), ylabel Drug (nanomole/liter) contains 2 objects of type line. One or more of the lines displays its values using only markers

Input Arguments

collapse all

SimBiology model, specified as a SimBiology model object. The active configset object of the model contains solver settings for simulation. Any active doses and variants are applied to the model during simulation unless specified otherwise using the dosing and variants input arguments, respectively.

Data to fit, specified as a groupedData object.

The name of the time variable must be defined in the IndependentVariableName property of grpData. For instance, if the time variable name is 'TIME', then specify it as follows.

grpData.Properties.IndependentVariableName = 'TIME';

If the data contains more than one group of measurements, the grouping variable name must be defined in the GroupVariableName property of grpData. For example, if the grouping variable name is 'GROUP', then specify it as follows.

grpData.Properties.GroupVariableName = 'GROUP';
A group usually refers to a set of measurements that represent a single time course, often corresponding to a particular individual, or experimental condition.

Note

sbiofit uses the categorical function to identify groups. If any group values are converted to the same value by categorical, then those observations are treated as belonging to the same group. For instance, if some observations have no group information (that is, an empty character vector ''), then categorical converts empty character vectors to <undefined>, and these observations are treated as one group.

Mapping information of model components to grpData, specified as a character vector, string, string vector, or cell array of character vectors.

Each character vector or string is an equation-like expression, similar to assignment rules in SimBiology. It contains the name (or qualified name) of a quantity (species, compartment, or parameter) or an observable object in the model sm, followed by the character '=' and the name of a variable in grpData. For clarity, white spaces are allowed between names and '='.

For example, if you have the concentration data 'CONC' in grpData for a species 'Drug_Central', you can specify it as follows.

ResponseMap = 'Drug_Central = CONC';

To name a species unambiguously, use the qualified name, which includes the name of the compartment. To name a reaction-scoped parameter, use the reaction name to qualify the parameter.

If the model component name or grpData variable name is not a valid MATLAB® variable name, surround it by square brackets, such as:

ResponseMap = '[Central 1].Drug = [Central 1 Conc]';

If a variable name itself contains square brackets, you cannot use it in the expression to define the mapping information.

An error is issued if any (qualified) name matches two components of the same type. However, you can use a (qualified) name that matches two components of different types, and the function first finds the species with the given name, followed by compartments and then parameters.

Estimated parameters, specified as an EstimatedInfo object or vector of estimatedInfo objects that defines the estimated parameters in the model sm, and other optional information such as their initial estimates, transformations, bound constraints, and categories. Supported transforms are log, logit, and probit. For details, see Parameter Transformations.

You can specify bounds for all estimation methods. The lower bound must be less than the upper bound. For details, see Bounds.

When using scattersearch, you must specify finite transformed bounds for each estimated parameter.

When using fminsearch, nlinfit, or fminunc with bounds, the objective function returns Inf if bounds are exceeded. When you turn on options such as FunValCheck, the optimization might error if bounds are exceeded during estimation. If using nlinfit, it might report warnings about the Jacobian being ill-conditioned or not being able to estimate if the final result is too close to the bounds.

If you do not specify Pooled name-value pair argument, sbiofit uses CategoryVariableName property of estiminfo to decide if parameters must be estimated for each individual, group, category, or all individuals as a whole. Use the Pooled option to override any CategoryVariableName values. For details about CategoryVariableName property, see EstimatedInfo object.

Note

sbiofit uses the categorical function to identify groups or categories. If any group values are converted to the same value by categorical, then those observations are treated as belonging to the same group. For instance, if some observations have no group information (that is, an empty character vector '' as a group value), then categorical converts empty character vectors to <undefined>, and these observations are treated as one group.

Dosing information, specified as an empty array ([] or {}), 2-D matrix or cell vector of dose objects (ScheduleDose object or RepeatDose object).

If you omit the dosing input, the function applies the active doses of the model if there are any.

If you specify the input as empty [] or {}, no doses are applied during simulation, even if the model has active doses.

For a matrix of dose objects, it must have a single row or one row per group in the input data. If it has a single row, the same doses are applied to all groups during simulation. If it has multiple rows, each row is applied to a separate group, in the same order as the groups appear in the input data. Multiple columns are allowed so that you can apply multiple dose objects to each group.

Note

As of R2021b, doses in the columns are no longer required to have the same configuration. If you previously created default (dummy) doses to fill in the columns, these default doses have no effect and indicate no dosing.

For a cell vector of doses, it must have one element or one element per group in the input data. Each element must be [] or a vector of doses. Each element of the cell is applied to a separate group, in the same order as the groups appear in the input data.

In addition to manually constructing dose objects using sbiodose, if the input groupedData object has dosing information, you can use the createDoses method to construct doses.

Estimation function name, specified as a character vector or string. Choices are as follows.

  • "fminsearch"

  • "nlinfit" (Statistics and Machine Learning Toolbox is required.)

  • "fminunc" (Optimization Toolbox is required.)

  • "fmincon" (Optimization Toolbox is required.)

  • "lsqcurvefit" (Optimization Toolbox is required.)

  • "lsqnonlin" (Optimization Toolbox is required.)

  • "patternsearch" (Global Optimization Toolbox is required.)

  • "ga" (Global Optimization Toolbox is required.)

  • "particleswarm" (Global Optimization Toolbox is required.)

  • "scattersearch"

By default, sbiofit uses the first available estimation function among the following: lsqnonlin (Optimization Toolbox), nlinfit (Statistics and Machine Learning Toolbox), or fminsearch. The same priority applies to the default local solver choice for scattersearch.

For the summary of supported methods and fitting options, see Supported Methods for Parameter Estimation in SimBiology.

Options specific to the estimation function, specified as a struct or optimoptions object.

  • statset struct for nlinfit

  • optimset struct for fminsearch

  • optimoptions object for lsqcurvefit, lsqnonlin, fmincon, fminunc, particleswarm, ga, and patternsearch

  • struct for scattersearch

See Default Options for Estimation Algorithms for more details and default options associated with each estimation function.

Variants, specified as an empty array ([] or {}) or vector of variant objects.

If you

  • Omit this input argument, the function applies the active variants of the model if there are any.

  • Specify this input as empty, no variants are used even if the model has active variants.

  • Specify this input as a vector of variants, the function applies the specified variants to all simulations, and the model active variants are not used.

  • Specify this input as a vector of variants and also specify the Variants name-value argument, the function applies the variants specified in this input argument before applying the ones specified in the name-value argument.

Name-Value Arguments

collapse all

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: fitResults = sbiofit(sm,grpData,ResponseMap,covEstiminfo,ErrorModel="proportional",UseParallel=true) specifies a proportional error model and to run simulations in parallel during parameter estimation.

Error model to use for estimation, specified as a character vector, string scalar, string vector, cell array of character vectors, categorical vector, or table. Valid values are "constant", "proportional", "combined", and "exponential".

The following details apply:

  • If you specify only one error model, then sbiofit estimates one set of error parameters for all responses.

  • If you specify multiple error models using a categorical vector, string vector, or cell array of character vectors, the length of the vector or cell array must match the number of responses in ResponseMap.

  • You can specify multiple error models only if you are using these methods: lsqnonlin, lsqcurvefit, fmincon, fminunc, fminsearch, patternsearch, ga, and particleswarm. For more details, see Maximum Likelihood Estimation.

  • If you specify weights only for the constant error model.

  • If you specify a table, it must contain a single variable that is a column vector of error model names. The names can be a cell array of character vectors, string vector, or a vector of categorical variables. If the table has more than one row and the RowNames property is not empty, then the RowNames property must match the response variable names specified in the right hand side of ResponseMap. If the table does not use the RowNames property, the nth error is associated with the nth response.

Four built-in error models are available. Each model defines the error using a standard mean-zero and unit-variance (Gaussian) variable e, simulation results f, and one or two parameters a and b.

  • "constant": y=f+ae

  • "proportional": y=f+b|f|e

  • "combined": y=f+(a+b|f|)e

  • "exponential": y=fexp(ae)

For more details, see Error Models.

Note

If you use a proportional or combined error model during data fitting, avoid specifying data points at times where the solution (simulation result) is zero or the steady state is zero. Otherwise, you can run into division-by-zero problems. To avoid those problems, remove those data points from the data set.

Weights used for fitting, specified as an empty array [], matrix of real positive weights where the number of columns corresponds to the number of responses, or a function handle that accepts a vector of predicted response values and returns a vector of real positive weights.

If you specify an error model, you cannot use weights except for the constant error model. If neither the ErrorModel or Weights is specified, by default, the software uses the constant error model with equal weights.

Group-specific variants, specified as an empty array ([] or {}), 2-D matrix or cell vector of variant objects. These variants let you specify parameter values for specific groups during fitting. The software applies these group-specific variants after active variants or the variants input argument. If the value is empty ([] or {}), no group-specific variants are applied.

For a matrix of variant objects, the number of rows must be one or must match the number of groups in the input data. The ith row of variant objects is applied to the simulation of the ith group. The variants are applied in order from the first column to the last. If this matrix has only one row of variants, they are applied to all simulations.

For a cell vector of variant objects, the number of cells must be one or must match the number of groups in the input data. Each element must be [] or a vector of variants. If this cell vector has a single cell containing a vector of variants, they are applied to all simulations. If the cell vector has multiple cells, the variants in the ith cell are applied to the simulation of the ith group.

In addition to manually constructing variant objects using sbiovariant, if the input groupedData object has variant information, you can use createVariants to construct variants.

Fit option flag to fit each individual or pool all individual data, specified as a numeric or logical 1 (true) or 0 (false).

When true, the software performs fitting for all individuals or groups simultaneously using the same parameter estimates, and fitResults is a scalar results object.

When false, the software fits each group or individual separately using group- or individual-specific parameters, and fitResults is a vector of results objects with one result for each group.

Note

Use this option to override any CategoryVariableName values of estiminfo.

Flag to enable parallelization, specified as a numeric or logical 1 (true) or 0 (false). If true and Parallel Computing Toolbox™ is available, sbiofit supports several levels of parallelization, but only one level is used at a time.

For an unpooled fit (Pooled = false) for multiple groups, each fit is run in parallel.

For a pooled fit (Pooled = true), parallelization happens at the solver level. In other words, solver computations, such as objective function evaluations, are run in parallel.

For details, see Multiple Parameter Estimations in Parallel.

Flag to use parameter sensitivities to determine gradients of the objective function, specified as a numeric or logical 1 (true) or 0 (false). By default, it is true for fmincon, fminunc, lsqnonlin, lsqcurvefit, and scattersearch methods. Otherwise, it is false.

If it is true, the software always uses the sundials solver, regardless of what you have selected as the SolverType property in the Configset object.

The software uses the complex-step approximation method to calculate parameter sensitivities. Such calculated sensitivities can be used to determine gradients of the objective function during parameter estimation to improve fitting. The default behavior of sbiofit is to use such sensitivities to determine gradients whenever the algorithm is gradient-based and if the SimBiology model supports sensitivity analysis. For details about the model requirements and sensitivity analysis, see Sensitivity Analysis in SimBiology.

Flag to show the progress of parameter estimation, specified as a numeric or logical 1 (true) or 0 (false). If true, a new figure opens containing plots.

Plots show the log-likelihood, termination criteria, and estimated parameters for each iteration. This option is not supported for nlinfit.

If you are using the Optimization Toolbox functions (fminunc, fmincon, lsqcurvefit, lsqnonlin), the figure also shows the First Order Optimality (Optimization Toolbox) plot.

For an unpooled fit, each line on the plots represents an individual. For a pooled fit, a single line represents all individuals. The line becomes faded when the fit is complete. The plots also keep track of the progress when you run sbiofit (for both pooled and unpooled fits) in parallel using remote clusters. For details, see Progress Plot.

Output Arguments

collapse all

Estimation results, returned as a OptimResults object or NLINResults object or a vector of these objects. Both results objects are subclasses of the LeastSquaresResults object.

If the function uses nlinfit (Statistics and Machine Learning Toolbox), then fitResults is a NLINResults object. Otherwise, fitResults is an OptimResults object.

For an unpooled fit, the function fits each group separately using group-specific parameters, and fitResults is a vector of results objects with one results object for each group.

For a pooled fit, the function performs fitting for all individuals or groups simultaneously using the same parameter estimates, and fitResults is a scalar results object.

When the pooled option is not specified, and CategoryVariableName values of estimatedInfo objects are all <none>, fitResults is a single results object. This is the same behavior as a pooled fit.

When the pooled option is not specified, and CategoryVariableName values of estimatedInfo objects are all <GroupVariableName>, fitResults is a vector of results objects. This is the same behavior as an unpooled fit.

In all other cases, fitResults is a scalar object containing estimated parameter values for different groups or categories specified by CategoryVariableName.

Simulation results, returned as a vector of SimData objects representing simulation results for each group or individual.

If the 'Pooled' option is false, then each simulation uses group-specific parameter values. If true, then all simulations use the same (population-wide) parameter values.

The states reported in simdata are the states that were included in the ResponseMap input argument and any other states listed in the StatesToLog property of the runtime options (RuntimeOptions) of the SimBiology model sm.

More About

collapse all

References

[1] Yi, T-M., Kitano, H., and Simon, M. (2003). A quantitative characterization of the yeast heterotrimeric G protein cycle. PNAS. 100, 10764–10769.

[2] Gábor, A., and Banga, J.R. (2015). Robust and efficient parameter estimation in dynamic models of biological systems. BMC Systems Biology. 9:74.

Extended Capabilities

expand all

Version History

Introduced in R2014a
