systemcomposer.extractArchitectureFromSimulink

Extract architecture from Simulink model

Syntax

systemcomposer.extractArchitectureFromSimulink(model,name)

systemcomposer.extractArchitectureFromSimulink(model,name,Name=Value)

Description

systemcomposer.extractArchitectureFromSimulink(model,name) exports the Simulink^® model model to an architecture model name and saves it in the current directory.

systemcomposer.extractArchitectureFromSimulink(model,name,Name=Value) exports the Simulink model model to an architecture model name and saves it in the current directory with additional options.

Examples

Extract Architecture of Simulink Model Using System Composer

Export an existing Simulink® model to a System Composer™ architecture model. The algorithmic sections of the original model are removed and structural information is preserved during this process. Requirements links, if present, are also preserved.

Convert Simulink Model to System Composer Architecture

System Composer converts structural constructs in a Simulink model to equivalent architecture model constructs:

• Subsystems to components

• Variant subsystems to variant components

• Bus objects to interfaces

• Referenced models to reference components

Open Model

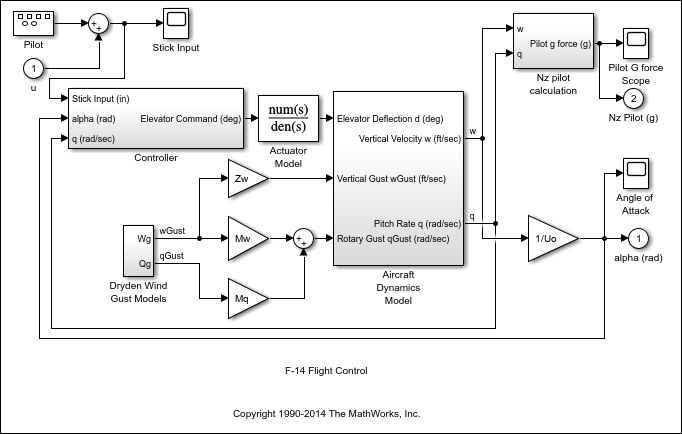

Open the Simulink model of F-14 Flight Control.

open_system('f14')

Export Model

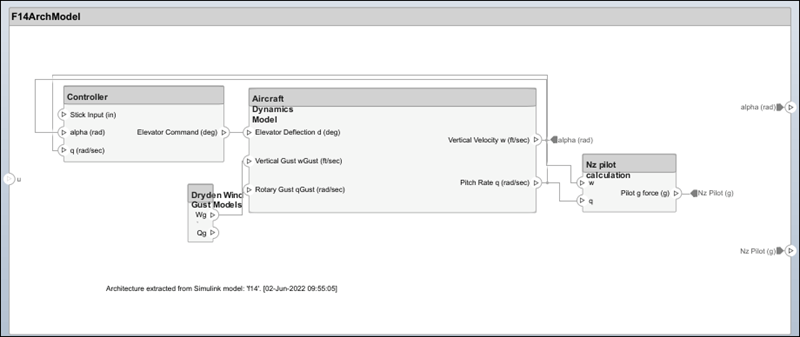

Extract an architecture model from the original model.

systemcomposer.extractArchitectureFromSimulink('f14','F14ArchModel');
Simulink.BlockDiagram.arrangeSystem('F14ArchModel');
systemcomposer.openModel('F14ArchModel');

Input Arguments

model — Simulink model name

character vector | string

Simulink model name from which to extract the architecture, specified as a character vector or string. The model must be on the path.

Example: "f14"

Data Types: char | string

name — Architecture model name

character vector | string

Architecture model name, specified as a character vector or string. This model is saved in the current directory.

Example: "F14ArchModel"

Data Types: char | string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: systemcomposer.extractArchitectureFromSimulink("f14","F14ArchModel",AutoArrange=false,ShowProgress=true)

AutoArrange — Whether to auto-arrange architecture model

true or 1 (default) | false or 0

Whether to auto-arrange architecture model, specified as a logical.

Example: systemcomposer.extractArchitectureFromSimulink("f14","F14ArchModel",AutoArrange=false)

Data Types: logical

ShowProgress — Whether to show progress bar

false or 0 (default) | true or 1

Whether to show progress bar, specified as a logical. This option is useful for larger models.

Example: systemcomposer.extractArchitectureFromSimulink("f14","F14ArchModel",ShowProgress=true)

Data Types: logical

More About

Definitions

Term	Definition	Application	More Information
architecture	A System Composer™ architecture represents a system of components and how they interface with each other structurally and behaviorally.	Different types of architectures describe different aspects of systems. You can use views to visualize a subset of components in an architecture. You can define parameters on the architecture level using the Parameter Editor.	Compose Architectures Visually Author Parameters in System Composer Using Parameter Editor
root	The root is at the top of an architecture hierarchy. A root architecture has a boundary defined by its architecture ports surrounding the system of interest.	The root architecture has a system boundary surrounding your architecture model. You can add architecture ports that define interfaces across the boundary.	Compose Architectures Visually
model	A System Composer model is the file that contains architectural information, such as components, ports, connectors, interfaces, and behaviors.	Perform operations on a model: Extract root-level architecture. Apply profiles. Attach interface data dictionaries. Generate instances from model architecture. A System Composer model is stored as an SLX file.	Create Architecture Model with Interfaces and Requirement Links
component	A component is a replaceable part of a system that fulfills a clear function in the context of an architecture. A component defines an architectural element, such as a function, another system, hardware, software, or other conceptual entity. A component can also be a subsystem or subfunction.	Represented as a block, a component is a part of an architecture model that can be separated into reusable artifacts. Transfer information between components with: Port interfaces using the Interface Editor Parameters using the Parameter Editor	Compose Architectures Visually
port	A port is a node on a component or architecture that represents a point of interaction with its environment. A port permits the flow of information to and from other components or systems.	Component ports are interaction points on the component to other components. Architecture ports are ports on the boundary of the system, whether the boundary is within a component or the overall architecture model. The root architecture has a boundary defined by its ports.	Compose Architectures Visually
connector	Connectors are lines that provide connections between ports. Connectors describe how information flows between components or architectures.	A connector allows two components to interact without defining the nature of the interaction. Set an interface on a port to define how the components interact.	Compose Architectures Visually

Version History

Introduced in R2019a
