Long short-term memory (LSTM) layer

An LSTM layer learns long-term dependencies between time steps in time series and sequence data.

The layer performs additive interactions, which can help improve gradient flow over long sequences during training.

creates an LSTM layer and sets the `layer`

= lstmLayer(`numHiddenUnits`

)`NumHiddenUnits`

property.

sets additional `layer`

= lstmLayer(`numHiddenUnits`

,`Name,Value`

)`OutputMode`

, Activations,
State,
Parameters and Initialization,
Learn Rate and Regularization, and
`Name`

properties using one or more name-value pair arguments. You can specify multiple
name-value pair arguments. Enclose each property name in quotes.

`NumHiddenUnits`

— Number of hidden unitspositive integer

Number of hidden units (also known as the hidden size), specified as a positive integer.

The number of hidden units corresponds to the amount of information remembered between time steps (the hidden state). The hidden state can contain information from all previous time steps, regardless of the sequence length. If the number of hidden units is too large, then the layer might overfit to the training data. This value can vary from a few dozen to a few thousand.

The hidden state does not limit the number of time steps are processed in an
iteration. To split your sequences into smaller sequences for training, use the
`'SequenceLength'`

option in `trainingOptions`

.

**Example: ** 200

`OutputMode`

— Format of output`'sequence'`

(default) | `'last'`

Format of output, specified as one of the following:

`'sequence'`

– Output the complete sequence.`'last'`

– Output the last time step of the sequence.

`InputSize`

— Input size`'auto'`

(default) | positive integer Input size, specified as a positive integer or `'auto'`

. If `InputSize`

is `'auto'`

, then the software automatically assigns the input size at training time.

**Example: ** 100

`StateActivationFunction`

— Activation function to update the cell and hidden state`'tanh'`

(default) | `'softsign'`

Activation function to update the cell and hidden state, specified as one of the following:

`'tanh'`

– Use the hyperbolic tangent function (tanh).`'softsign'`

– Use the softsign function $$\text{softsign}(x)=\frac{x}{1+\left|x\right|}$$.

The layer uses this option as the function $${\sigma}_{c}$$ in the calculations to update the cell and hidden state. For more information on how activation functions are used in an LSTM layer, see Long Short-Term Memory Layer.

`GateActivationFunction`

— Activation function to apply to the gates`'sigmoid'`

(default) | `'hard-sigmoid'`

Activation function to apply to the gates, specified as one of the following:

`'sigmoid'`

– Use the sigmoid function $$\sigma (x)={(1+{e}^{-x})}^{-1}$$.`'hard-sigmoid'`

– Use the hard sigmoid function$$\sigma (x)=\{\begin{array}{cc}\begin{array}{l}0\hfill \\ 0.2x+0.5\hfill \\ 1\hfill \end{array}& \begin{array}{l}\text{if}x-2.5\hfill \\ \text{if}-2.5\le x\le 2.5\hfill \\ \text{if}x2.5\hfill \end{array}\end{array}.$$

The layer uses this option as the function $${\sigma}_{g}$$ in the calculations for the input, output, and forget gate. For more information on how activation functions are used in an LSTM layer, see Long Short-Term Memory Layer.

`CellState`

— Initial value of cell statenumeric vector

Initial value of the cell state, specified as a
`NumHiddenUnits`

-by-1 numeric vector. This value
corresponds to the cell state at time step 0.

After setting this property, calls to the
`resetState`

function set the cell state to this
value.

`HiddenState`

— Initial value of the hidden statenumeric vector

Initial value of the hidden state, specified as a
`NumHiddenUnits`

-by-1 numeric vector. This value
corresponds to the hidden state at time step 0.

After setting this property, calls to the
`resetState`

function set the hidden state to
this value.

`InputWeightsInitializer`

— Function to initialize input weights`'glorot'`

(default) | `'he'`

| `'orthogonal'`

| `'narrow-normal'`

| `'zeros'`

| `'ones'`

| function handleFunction to initialize the input weights, specified as one of the following:

`'glorot'`

– Initialize the input weights with the Glorot initializer [4] (also known as Xavier initializer). The Glorot initializer independently samples from a uniform distribution with zero mean and variance`2/(InputSize + numOut)`

, where`numOut = 4*NumHiddenUnits`

.`'he'`

– Initialize the input weights with the He initializer [5]. The He initializer samples from a normal distribution with zero mean and variance`2/InputSize`

.`'orthogonal'`

– Initialize the input weights with*Q*, the orthogonal matrix given by the QR decomposition of*Z*=*Q**R*for a random matrix*Z*sampled from a unit normal distribution. [6]`'narrow-normal'`

– Initialize the input weights by independently sampling from a normal distribution with zero mean and standard deviation 0.01.`'zeros'`

– Initialize the input weights with zeros.`'ones'`

– Initialize the input weights with ones.Function handle – Initialize the input weights with a custom function. If you specify a function handle, then the function must be of the form

`weights = func(sz)`

, where`sz`

is the size of the input weights.

The layer only initializes the input weights when the
`InputWeights`

property is empty.

**Data Types: **`char`

| `string`

| `function_handle`

`RecurrentWeightsInitializer`

— Function to initialize recurrent weights`'orthogonal'`

(default) | `'glorot'`

| `'he'`

| `'narrow-normal'`

| `'zeros'`

| `'ones'`

| function handleFunction to initialize the recurrent weights, specified as one of the following:

`'orthogonal'`

– Initialize the recurrent weights with*Q*, the orthogonal matrix given by the QR decomposition of*Z*=*Q**R*for a random matrix*Z*sampled from a unit normal distribution. [6]`'glorot'`

– Initialize the recurrent weights with the Glorot initializer [4] (also known as Xavier initializer). The Glorot initializer independently samples from a uniform distribution with zero mean and variance`2/(numIn + numOut)`

, where`numIn = NumHiddenUnits`

and`numOut = 4*NumHiddenUnits`

.`'he'`

– Initialize the recurrent weights with the He initializer [5]. The He initializer samples from a normal distribution with zero mean and variance`2/NumHiddenUnits`

.`'narrow-normal'`

– Initialize the recurrent weights by independently sampling from a normal distribution with zero mean and standard deviation 0.01.`'zeros'`

– Initialize the recurrent weights with zeros.`'ones'`

– Initialize the recurrent weights with ones.Function handle – Initialize the recurrent weights with a custom function. If you specify a function handle, then the function must be of the form

`weights = func(sz)`

, where`sz`

is the size of the recurrent weights.

The layer only initializes the recurrent weights when the
`RecurrentWeights`

property is empty.

**Data Types: **`char`

| `string`

| `function_handle`

`BiasInitializer`

— Function to initialize bias`'unit-forget-gate'`

(default) | `'narrow-normal'`

| `'ones'`

| function handleFunction to initialize the bias, specified as one of the following:

`'unit-forget-gate'`

– Initialize the forget gate bias with ones and the remaining biases with zeros.`'narrow-normal'`

– Initialize the bias by independently sampling from a normal distribution with zero mean and standard deviation 0.01.`'ones'`

– Initialize the bias with ones.Function handle – Initialize the bias with a custom function. If you specify a function handle, then the function must be of the form

`bias = func(sz)`

, where`sz`

is the size of the bias.

The layer only initializes the bias when the `Bias`

property is
empty.

**Data Types: **`char`

| `string`

| `function_handle`

`InputWeights`

— Input weights`[]`

(default) | matrixInput weights, specified as a matrix.

The input weight matrix is a concatenation of the four input weight matrices for the components (gates) in the LSTM layer. The four matrices are concatenated vertically in the following order:

Input gate

Forget gate

Cell candidate

Output gate

The input weights are learnable parameters. When training a network, if `InputWeights`

is nonempty, then `trainNetwork`

uses the `InputWeights`

property as the initial value. If `InputWeights`

is empty, then `trainNetwork`

uses the initializer specified by `InputWeightsInitializer`

.

At training time, `InputWeights`

is a
`4*NumHiddenUnits`

-by-`InputSize`

matrix.

`RecurrentWeights`

— Recurrent weights`[]`

(default) | matrixRecurrent weights, specified as a matrix.

The recurrent weight matrix is a concatenation of the four recurrent weight matrices for the components (gates) in the LSTM layer. The four matrices are vertically concatenated in the following order:

Input gate

Forget gate

Cell candidate

Output gate

The recurrent weights are learnable parameters. When training a network, if `RecurrentWeights`

is nonempty, then `trainNetwork`

uses the `RecurrentWeights`

property as the initial value. If `RecurrentWeights`

is empty, then `trainNetwork`

uses the initializer specified by `RecurrentWeightsInitializer`

.

At training time `RecurrentWeights`

is a
`4*NumHiddenUnits`

-by-`NumHiddenUnits`

matrix.

`Bias`

— Layer biases`[]`

(default) | numeric vectorLayer biases for the LSTM layer, specified as a numeric vector.

The bias vector is a concatenation of the four bias vectors for the components (gates) in the LSTM layer. The four vectors are concatenated vertically in the following order:

Input gate

Forget gate

Cell candidate

Output gate

The layer biases are learnable parameters. When training a network, if `Bias`

is nonempty, then `trainNetwork`

uses the `Bias`

property as the initial value. If `Bias`

is empty, then `trainNetwork`

uses the initializer specified by `BiasInitializer`

.

At training time, `Bias`

is a
`4*NumHiddenUnits`

-by-1 numeric vector.

`InputWeightsLearnRateFactor`

— Learning rate factor for input weights1 (default) | numeric scalar | 1-by-4 numeric vector

Learning rate factor for the input weights, specified as a numeric scalar or a 1-by-4 numeric vector.

The software multiplies this factor by the global learning rate to determine the learning rate factor for the input weights of the layer. For example, if `InputWeightsLearnRateFactor`

is 2, then the learning rate factor for the input weights of the layer is twice the current global learning rate. The software determines the global learning rate based on the settings specified with the `trainingOptions`

function.

To control the value of the learning rate factor for the four
individual matrices in `InputWeights`

, specify a
1-by-4 vector. The entries of
`InputWeightsLearnRateFactor`

correspond to the
learning rate factor of the following:

Input gate

Forget gate

Cell candidate

Output gate

To specify the same value for all the matrices, specify a nonnegative scalar.

**Example: **`2`

**Example: **
`[1 2 1 1]`

`RecurrentWeightsLearnRateFactor`

— Learning rate factor for recurrent weights1 (default) | numeric scalar | 1-by-4 numeric vector

Learning rate factor for the recurrent weights, specified as a numeric scalar or a 1-by-4 numeric vector.

The software multiplies this factor by the global learning rate to determine the learning rate for the recurrent weights of the layer. For example, if `RecurrentWeightsLearnRateFactor`

is 2, then the learning rate for the recurrent weights of the layer is twice the current global learning rate. The software determines the global learning rate based on the settings specified with the `trainingOptions`

function.

To control the value of the learning rate factor for the four
individual matrices in `RecurrentWeights`

, specify a
1-by-4 vector. The entries of
`RecurrentWeightsLearnRateFactor`

correspond to
the learning rate factor of the following:

Input gate

Forget gate

Cell candidate

Output gate

To specify the same value for all the matrices, specify a nonnegative scalar.

**Example: **`2`

**Example: **
`[1 2 1 1]`

`BiasLearnRateFactor`

— Learning rate factor for biases1 (default) | nonnegative scalar | 1-by-4 numeric vector

Learning rate factor for the biases, specified as a nonnegative scalar or a 1-by-4 numeric vector.

The software multiplies this factor by the global learning rate
to determine the learning rate for the biases in this layer. For example, if
`BiasLearnRateFactor`

is 2, then the learning rate for the biases in the
layer is twice the current global learning rate. The software determines the global learning
rate based on the settings specified with the `trainingOptions`

function.

To control the value of the learning rate factor for the four
individual matrices in `Bias`

, specify a 1-by-4
vector. The entries of `BiasLearnRateFactor`

correspond to the learning rate factor of the following:

Input gate

Forget gate

Cell candidate

Output gate

To specify the same value for all the matrices, specify a nonnegative scalar.

**Example: **
`2`

**Example: **
`[1 2 1 1]`

`InputWeightsL2Factor`

— L2 regularization factor for input weights1 (default) | numeric scalar | 1-by-4 numeric vector

L2 regularization factor for the input weights, specified as a numeric scalar or a 1-by-4 numeric vector.

The software multiplies this factor by the global L2 regularization factor to determine the L2 regularization factor for the input weights of the layer. For example, if `InputWeightsL2Factor`

is 2, then the L2 regularization factor for the input weights of the layer is twice the current global L2 regularization factor. The software determines the L2 regularization factor based on the settings specified with the `trainingOptions`

function.

To control the value of the L2 regularization factor for the four
individual matrices in `InputWeights`

, specify a
1-by-4 vector. The entries of `InputWeightsL2Factor`

correspond to the L2 regularization factor of the following:

Input gate

Forget gate

Cell candidate

Output gate

To specify the same value for all the matrices, specify a nonnegative scalar.

**Example: **`2`

**Example: **
`[1 2 1 1]`

`RecurrentWeightsL2Factor`

— L2 regularization factor for recurrent weights1 (default) | numeric scalar | 1-by-4 numeric vector

L2 regularization factor for the recurrent weights, specified as a numeric scalar or a 1-by-4 numeric vector.

The software multiplies this factor by the global L2 regularization factor to determine the L2 regularization factor for the recurrent weights of the layer. For example, if `RecurrentWeightsL2Factor`

is 2, then the L2 regularization factor for the recurrent weights of the layer is twice the current global L2 regularization factor. The software determines the L2 regularization factor based on the settings specified with the `trainingOptions`

function.

To control the value of the L2 regularization factor for the four
individual matrices in `RecurrentWeights`

, specify a
1-by-4 vector. The entries of
`RecurrentWeightsL2Factor`

correspond to the L2
regularization factor of the following:

Input gate

Forget gate

Cell candidate

Output gate

To specify the same value for all the matrices, specify a nonnegative scalar.

**Example: **`2`

**Example: **
`[1 2 1 1]`

`BiasL2Factor`

— L2 regularization factor for biases0 (default) | nonnegative scalar | 1-by-4 numeric vector

L2 regularization factor for the biases, specified as a nonnegative scalar or a 1-by-4 numeric vector.

The software multiplies this factor by the global L2
regularization factor to determine the L2 regularization for the biases in this layer. For
example, if `BiasL2Factor`

is 2, then the L2 regularization for the biases in
this layer is twice the global L2 regularization factor. You can specify the global L2
regularization factor using the `trainingOptions`

function.

To control the value of the L2 regularization factor for the four
individual matrices in `Bias`

, specify a 1-by-4
vector. The entries of `BiasL2Factor`

correspond to
the L2 regularization factor of the following:

Input gate

Forget gate

Cell candidate

Output gate

To specify the same value for all the matrices, specify a nonnegative scalar.

**Example: **
`2`

**Example: **
`[1 2 1 1]`

`Name`

— Layer name`''`

(default) | character vector | string scalarLayer name, specified as a character vector or a string scalar. If `Name`

is set to `''`

, then the software automatically assigns a name at
training time.

**Data Types: **`char`

| `string`

`NumInputs`

— Number of inputs1 (default)

Number of inputs of the layer. This layer accepts a single input only.

**Data Types: **`double`

`InputNames`

— Input names`{'in'}`

(default)Input names of the layer. This layer accepts a single input only.

**Data Types: **`cell`

`NumOutputs`

— Number of outputs1 (default)

Number of outputs of the layer. This layer has a single output only.

**Data Types: **`double`

`OutputNames`

— Output names`{'out'}`

(default)Output names of the layer. This layer has a single output only.

**Data Types: **`cell`

Create an LSTM layer with the name `'lstm1'`

and 100 hidden units.

layer = lstmLayer(100,'Name','lstm1')

layer = LSTMLayer with properties: Name: 'lstm1' Hyperparameters InputSize: 'auto' NumHiddenUnits: 100 OutputMode: 'sequence' StateActivationFunction: 'tanh' GateActivationFunction: 'sigmoid' Learnable Parameters InputWeights: [] RecurrentWeights: [] Bias: [] State Parameters HiddenState: [] CellState: [] Show all properties

Include an LSTM layer in a `Layer`

array.

```
inputSize = 12;
numHiddenUnits = 100;
numClasses = 9;
layers = [ ...
sequenceInputLayer(inputSize)
lstmLayer(numHiddenUnits)
fullyConnectedLayer(numClasses)
softmaxLayer
classificationLayer]
```

layers = 5x1 Layer array with layers: 1 '' Sequence Input Sequence input with 12 dimensions 2 '' LSTM LSTM with 100 hidden units 3 '' Fully Connected 9 fully connected layer 4 '' Softmax softmax 5 '' Classification Output crossentropyex

Train a deep learning LSTM network for sequence-to-label classification.

Load the Japanese Vowels data set as described in [1] and [2]. `XTrain`

is a cell array containing 270 sequences of varying length with a feature dimension of 12. `Y`

is a categorical vector of labels 1,2,...,9. The entries in `XTrain`

are matrices with 12 rows (one row for each feature) and a varying number of columns (one column for each time step).

[XTrain,YTrain] = japaneseVowelsTrainData;

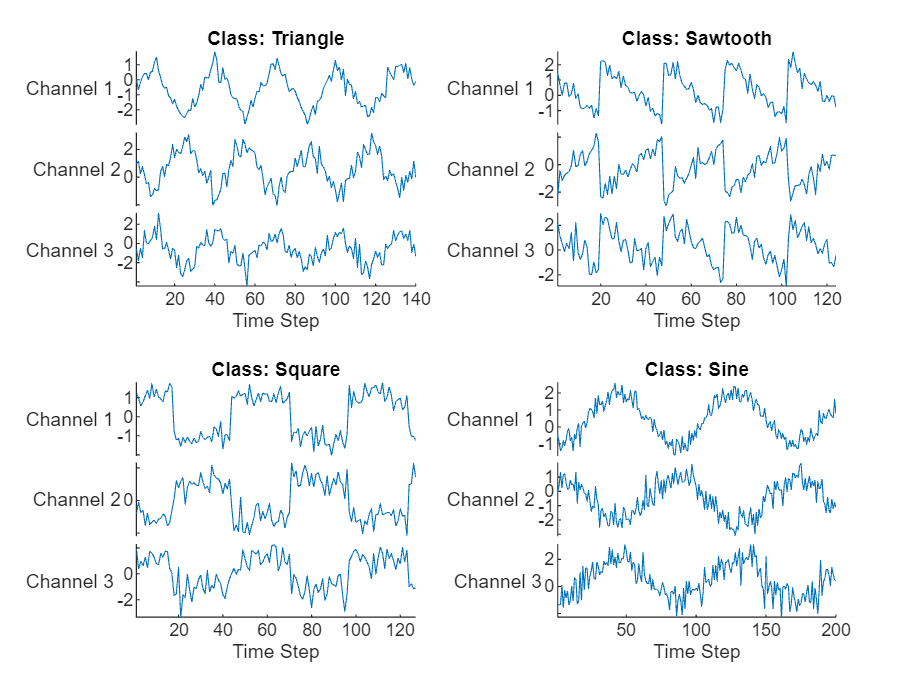

Visualize the first time series in a plot. Each line corresponds to a feature.

figure plot(XTrain{1}') title("Training Observation 1") numFeatures = size(XTrain{1},1); legend("Feature " + string(1:numFeatures),'Location','northeastoutside')

Define the LSTM network architecture. Specify the input size as 12 (the number of features of the input data). Specify an LSTM layer to have 100 hidden units and to output the last element of the sequence. Finally, specify nine classes by including a fully connected layer of size 9, followed by a softmax layer and a classification layer.

inputSize = 12; numHiddenUnits = 100; numClasses = 9; layers = [ ... sequenceInputLayer(inputSize) lstmLayer(numHiddenUnits,'OutputMode','last') fullyConnectedLayer(numClasses) softmaxLayer classificationLayer]

layers = 5x1 Layer array with layers: 1 '' Sequence Input Sequence input with 12 dimensions 2 '' LSTM LSTM with 100 hidden units 3 '' Fully Connected 9 fully connected layer 4 '' Softmax softmax 5 '' Classification Output crossentropyex

Specify the training options. Specify the solver as `'adam'`

and `'GradientThreshold'`

as 1. Set the mini-batch size to 27 and set the maximum number of epochs to 100.

Because the mini-batches are small with short sequences, the CPU is better suited for training. Set `'ExecutionEnvironment'`

to `'cpu'`

. To train on a GPU, if available, set `'ExecutionEnvironment'`

to `'auto'`

(the default value).

maxEpochs = 100; miniBatchSize = 27; options = trainingOptions('adam', ... 'ExecutionEnvironment','cpu', ... 'MaxEpochs',maxEpochs, ... 'MiniBatchSize',miniBatchSize, ... 'GradientThreshold',1, ... 'Verbose',false, ... 'Plots','training-progress');

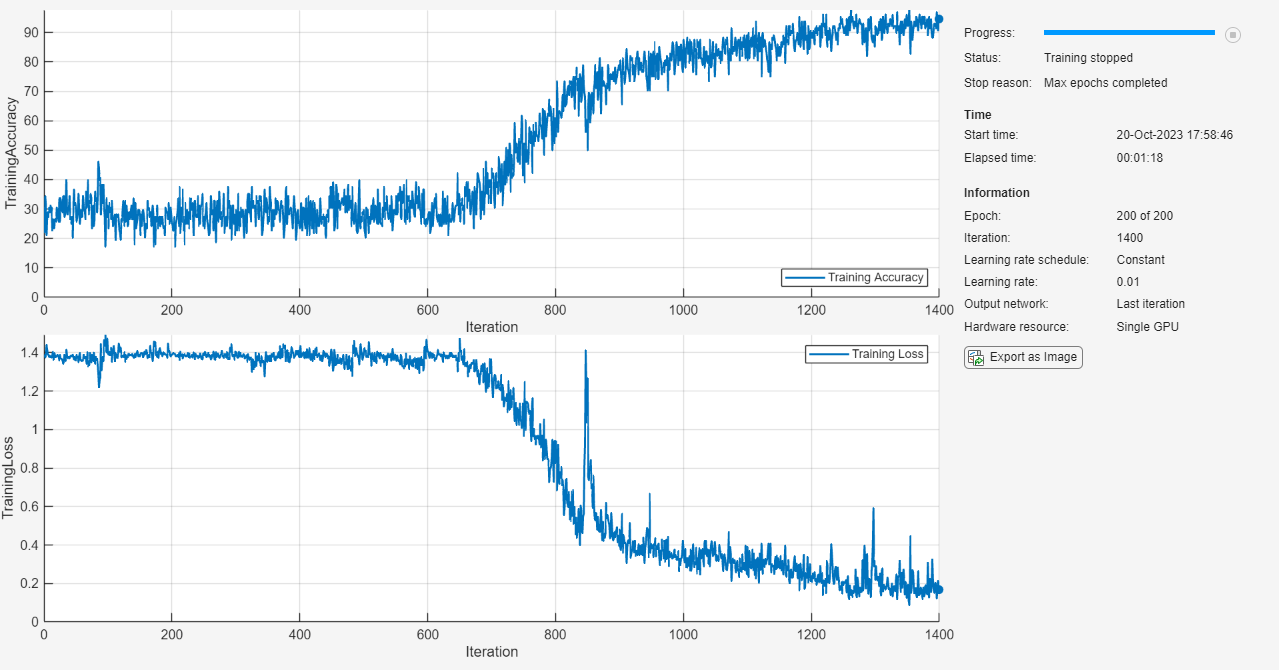

Train the LSTM network with the specified training options.

net = trainNetwork(XTrain,YTrain,layers,options);

Load the test set and classify the sequences into speakers.

[XTest,YTest] = japaneseVowelsTestData;

Classify the test data. Specify the same mini-batch size used for training.

`YPred = classify(net,XTest,'MiniBatchSize',miniBatchSize);`

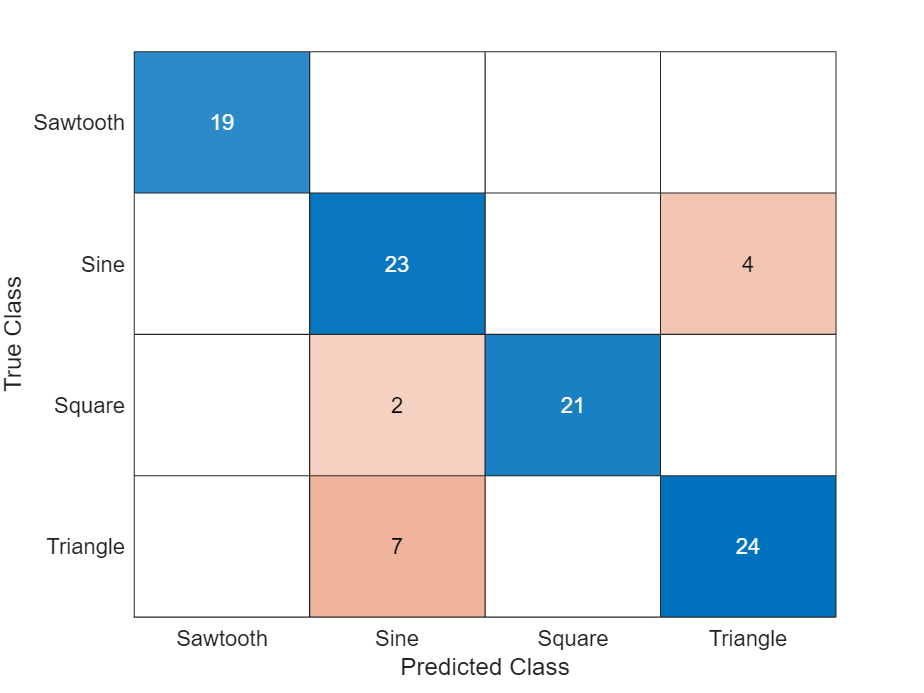

Calculate the classification accuracy of the predictions.

acc = sum(YPred == YTest)./numel(YTest)

acc = 0.9541

To create an LSTM network for sequence-to-label classification, create a layer array containing a sequence input layer, an LSTM layer, a fully connected layer, a softmax layer, and a classification output layer.

Set the size of the sequence input layer to the number of features of the input data. Set the size of the fully connected layer to the number of classes. You do not need to specify the sequence length.

For the LSTM layer, specify the number of hidden units and the output mode `'last'`

.

numFeatures = 12; numHiddenUnits = 100; numClasses = 9; layers = [ ... sequenceInputLayer(numFeatures) lstmLayer(numHiddenUnits,'OutputMode','last') fullyConnectedLayer(numClasses) softmaxLayer classificationLayer];

For an example showing how to train an LSTM network for sequence-to-label classification and classify new data, see Sequence Classification Using Deep Learning.

To create an LSTM network for sequence-to-sequence classification, use the same architecture as for sequence-to-label classification, but set the output mode of the LSTM layer to `'sequence'`

.

numFeatures = 12; numHiddenUnits = 100; numClasses = 9; layers = [ ... sequenceInputLayer(numFeatures) lstmLayer(numHiddenUnits,'OutputMode','sequence') fullyConnectedLayer(numClasses) softmaxLayer classificationLayer];

To create an LSTM network for sequence-to-one regression, create a layer array containing a sequence input layer, an LSTM layer, a fully connected layer, and a regression output layer.

Set the size of the sequence input layer to the number of features of the input data. Set the size of the fully connected layer to the number of responses. You do not need to specify the sequence length.

For the LSTM layer, specify the number of hidden units and the output mode `'last'`

.

numFeatures = 12; numHiddenUnits = 125; numResponses = 1; layers = [ ... sequenceInputLayer(numFeatures) lstmLayer(numHiddenUnits,'OutputMode','last') fullyConnectedLayer(numResponses) regressionLayer];

To create an LSTM network for sequence-to-sequence regression, use the same architecture as for sequence-to-one regression, but set the output mode of the LSTM layer to `'sequence'`

.

numFeatures = 12; numHiddenUnits = 125; numResponses = 1; layers = [ ... sequenceInputLayer(numFeatures) lstmLayer(numHiddenUnits,'OutputMode','sequence') fullyConnectedLayer(numResponses) regressionLayer];

For an example showing how to train an LSTM network for sequence-to-sequence regression and predict on new data, see Sequence-to-Sequence Regression Using Deep Learning.

You can make LSTM networks deeper by inserting extra LSTM layers with the output mode `'sequence'`

before the LSTM layer. To prevent overfitting, you can insert dropout layers after the LSTM layers.

For sequence-to-label classification networks, the output mode of the last LSTM layer must be `'last'`

.

numFeatures = 12; numHiddenUnits1 = 125; numHiddenUnits2 = 100; numClasses = 9; layers = [ ... sequenceInputLayer(numFeatures) lstmLayer(numHiddenUnits1,'OutputMode','sequence') dropoutLayer(0.2) lstmLayer(numHiddenUnits2,'OutputMode','last') dropoutLayer(0.2) fullyConnectedLayer(numClasses) softmaxLayer classificationLayer];

For sequence-to-sequence classification networks, the output mode of the last LSTM layer must be `'sequence'`

.

numFeatures = 12; numHiddenUnits1 = 125; numHiddenUnits2 = 100; numClasses = 9; layers = [ ... sequenceInputLayer(numFeatures) lstmLayer(numHiddenUnits1,'OutputMode','sequence') dropoutLayer(0.2) lstmLayer(numHiddenUnits2,'OutputMode','sequence') dropoutLayer(0.2) fullyConnectedLayer(numClasses) softmaxLayer classificationLayer];

An LSTM layer learns long-term dependencies between time steps in time series and sequence data.

The state of the layer consists of the *hidden state* (also known as the
*output state*) and the *cell state*. The hidden
state at time step *t* contains the output of the LSTM layer for this time
step. The cell state contains information learned from the previous time steps. At each time
step, the layer adds information to or removes information from the cell state. The layer
controls these updates using *gates*.

The following components control the cell state and hidden state of the layer.

Component | Purpose |
---|---|

Input gate (i) | Control level of cell state update |

Forget gate (f) | Control level of cell state reset (forget) |

Cell candidate (g) | Add information to cell state |

Output gate (o) | Control level of cell state added to hidden state |

This diagram illustrates the flow of data at time step *t*. The diagram
highlights how the gates forget, update, and output the cell and hidden states.

The learnable weights of an LSTM layer are the input weights *W*
(`InputWeights`

), the recurrent weights *R*
(`RecurrentWeights`

), and the bias *b*
(`Bias`

). The matrices *W*, *R*,
and *b* are concatenations of the input weights, the recurrent weights, and
the bias of each component, respectively. These matrices are concatenated as follows:

$$W=\left[\begin{array}{c}{W}_{i}\\ {W}_{f}\\ {W}_{g}\\ {W}_{o}\end{array}\right],R=\left[\begin{array}{c}{R}_{i}\\ {R}_{f}\\ {R}_{g}\\ {R}_{o}\end{array}\right],b=\left[\begin{array}{c}{b}_{i}\\ {b}_{f}\\ {b}_{g}\\ {b}_{o}\end{array}\right],$$

where *i*, *f*, *g*, and
*o* denote the input gate, forget gate, cell candidate, and output
gate, respectively.

The cell state at time step *t* is given by

$${c}_{t}={f}_{t}\odot {c}_{t-1}+{i}_{t}\odot {g}_{t},$$

where $$\odot $$ denotes the Hadamard product (element-wise multiplication of vectors).

The hidden state at time step *t* is given by

$${h}_{t}={o}_{t}\odot {\sigma}_{c}({c}_{t}),$$

where $${\sigma}_{c}$$ denotes the state activation function. The `lstmLayer`

function, by default, uses the hyperbolic tangent function (tanh) to compute the state
activation function.

The following formulas describe the components at time step
*t*.

Component | Formula |
---|---|

Input gate | $${i}_{t}={\sigma}_{g}({W}_{i}{x}_{t}+\text{}{\text{R}}_{i}{h}_{t-1}+{b}_{i})$$ |

Forget gate | $${f}_{t}={\sigma}_{g}({W}_{f}{x}_{t}+\text{}{\text{R}}_{f}{h}_{t-1}+{b}_{f})$$ |

Cell candidate | $${g}_{t}={\sigma}_{c}({W}_{g}{x}_{t}+\text{}{\text{R}}_{g}{h}_{t-1}+{b}_{g})$$ |

Output gate | $${o}_{t}={\sigma}_{g}({W}_{o}{x}_{t}+\text{}{\text{R}}_{o}{h}_{t-1}+{b}_{o})$$ |

In these calculations, $${\sigma}_{g}$$ denotes the gate activation function. The `lstmLayer`

function, by default, uses the sigmoid function given by $$\sigma (x)={(1+{e}^{-x})}^{-1}$$ to compute the gate activation function.

*Behavior changed in R2019a*

Starting in R2019a, the software, by default, initializes the layer input weights of this layer using the Glorot initializer. This behavior helps stabilize training and usually reduces the training time of deep networks.

In previous releases, the software, by default, initializes the layer input weights using the
by sampling from a normal distribution with zero mean and variance 0.01. To reproduce this
behavior, set the `'InputWeightsInitializer'`

option of the layer to
`'narrow-normal'`

.

*Behavior changed in R2019a*

Starting in R2019a, the software, by default, initializes the layer recurrent weights of this layer with *Q*, the orthogonal matrix given by the QR decomposition of *Z* = *Q**R* for a random matrix *Z* sampled from a unit normal distribution. This behavior helps stabilize training and usually reduces the training time of deep networks.

In previous releases, the software, by default, initializes the layer recurrent weights using
the by sampling from a normal distribution with zero mean and variance 0.01. To reproduce
this behavior, set the `'RecurrentWeightsInitializer'`

option of the layer
to `'narrow-normal'`

.

[1] M. Kudo, J. Toyama, and M. Shimbo.
"Multidimensional Curve Classification Using Passing-Through Regions."
*Pattern Recognition Letters*. Vol. 20, No. 11–13, pages
1103–1111.

[2] *UCI Machine Learning Repository:
Japanese Vowels Dataset*.
https://archive.ics.uci.edu/ml/datasets/Japanese+Vowels

[3] Hochreiter, S, and J. Schmidhuber, 1997. Long short-term memory.
*Neural computation*, 9(8), pp.1735–1780.

[4] Glorot, Xavier, and Yoshua Bengio. "Understanding the difficulty of training deep feedforward neural networks." In *Proceedings of the thirteenth international conference on artificial intelligence and statistics*, pp. 249-256. 2010.

[5] He, Kaiming, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. "Delving deep into rectifiers: Surpassing human-level performance on imagenet classification." In *Proceedings of the IEEE international conference on computer vision*, pp. 1026-1034. 2015.

[6] Saxe, Andrew M., James L. McClelland, and Surya Ganguli. "Exact solutions to the nonlinear dynamics of learning in deep linear neural networks." *arXiv preprint arXiv:1312.6120* (2013).

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

For code generation, the

`StateActivationFunction`

property must be set to`'tanh'`

.For code generation, the

`GateActivationFunction`

property must be set to`'sigmoid'`

.

`bilstmLayer`

| `classifyAndUpdateState`

| `flattenLayer`

| `predictAndUpdateState`

| `resetState`

| `sequenceFoldingLayer`

| `sequenceInputLayer`

| `sequenceUnfoldingLayer`

- Sequence Classification Using Deep Learning
- Time Series Forecasting Using Deep Learning
- Sequence-to-Sequence Classification Using Deep Learning
- Sequence-to-Sequence Regression Using Deep Learning
- Classify Videos Using Deep Learning
- Visualize Activations of LSTM Network
- Long Short-Term Memory Networks
- Compare Layer Weight Initializers
- Deep Learning in MATLAB
- List of Deep Learning Layers

A modified version of this example exists on your system. Do you want to open this version instead? (es)

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

Select web siteYou can also select a web site from the following list:

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

- América Latina (Español)
- Canada (English)
- United States (English)

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
