Create antenna represented by 2-D custom geometry


The customAntennaGeometry object is an antenna represented by a 2-D custom geometry on the xy-plane. Using customAntennaGeometry, you can import a planar mesh, define the feed for this mesh to create an antenna, analyze the antenna, and use it in finite or infinite arrays. The image shown is a custom slot antenna.




ca = customAntennaGeometry creates a 2-D antenna represented by a custom geometry, based on the specified boundary.


ca = customAntennaGeometry(Name=Value) creates a 2-D planar antenna geometry, with additional Properties specified by one or more name-value arguments. Name is the property name and Value is the corresponding value. You can specify several name-value arguments in any order as Name1=Value1, ..., NameN=ValueN. Properties not specified retain their default values.


expand all

Boundary information in Cartesian coordinates, specified as a cell array in meters.

Data Types: double

Boolean operation performed on the boundary list, specified as a character vector.

Example: 'P1-P2'

Data Types: char

Antenna feed location in Cartesian coordinates, specified as a three-element vector. The three-element vector is the x, y, and z coordinates respectively.

Example: [0 0.2 0]

Data Types: double

Width of feed section, specified as a scalar in meters.

Example: 0.05

Data Types: double

Type of the metal used as a conductor, specified in the metal material object. You can choose any metal from the MetalCatalog or specify a metal of your choice. For more information, see metal. For more information on metal conductor meshing, see Meshing.

Example: metal("Copper")

Lumped elements added to the antenna feed, specified a lumpedElement object.

Example: lumpedElement(Impedance=75)

Tilt angle of the antenna in degrees, specified as a scalar or vector. For more information, see Rotate Antennas and Arrays.

Example: 90

Example: Tilt=[90 90],TiltAxis=[0 1 0;0 1 1] tilts the antenna at 90 degrees about the two axes defined by the vectors.

Data Types: double

Tilt axis of the antenna, specified as one of these values:

  • Three-element vector of Cartesian coordinates in meters. In this case, each coordinate in the vector starts at the origin and lies along the specified points on the x-, y-, and z-axes.

  • Two points in space, specified as a 2-by-3 matrix corresponding to two three-element vectors of Cartesian coordinates. In this case, the antenna rotates around the line joining the two points.

  • "x", "y", or "z" to describe a rotation about the x-, y-, or z-axis, respectively.

For more information, see Rotate Antennas and Arrays.

Example: [0 1 0]

Example: [0 0 0;0 1 0]

Example: "Z"

Data Types: double | string

Object Functions

axialRatioCalculate and/or plot axial ratio of antenna or array
bandwidthCalculate and/or plot absolute bandwidth of antenna
beamwidthBeamwidth of antenna
chargeCharge distribution on antenna or array surface
currentCurrent distribution on antenna or array surface
efficiencyRadiation efficiency of antenna
EHfieldsElectric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays
impedanceInput impedance of antenna or scan impedance of array
infoDisplay information about antenna, array, or platform
memoryEstimateEstimate memory required to solve antenna or array mesh
meshMesh properties of metal, dielectric antenna, or array structure
meshconfigChange meshing mode of antenna, array, custom antenna, custom array, or custom geometry
patternPlot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array
patternAzimuthAzimuth plane radiation pattern of antenna or array
patternElevationElevation plane radiation pattern of antenna or array
rcsCalculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array
resonantFrequencyCalculate and/or plot resonant frequency of antenna
returnLossReturn loss of antenna or scan return loss of array
showDisplay antenna, array structures, shapes, or platform
sparametersCalculate S-parameters for antennas and antenna arrays
vswrVoltage standing wave ratio (VSWR) of antenna or array element


collapse all

Create a custom dipole antenna and view it.

ca = customAntennaGeometry
ca =
  customAntennaGeometry with properties:

        Boundary: {[4x3 double]}
       Operation: 'P1'
    FeedLocation: [0 0 0]
       FeedWidth: 0.0200
       Conductor: [1x1 metal]
            Tilt: 0
        TiltAxis: [1 0 0]
            Load: [1x1 lumpedElement]


Create a custom slot antenna using three rectangles and a circle.

Create three rectangles of dimensions 0.5 m x 0.5 m, 0.02 m x 0.4 m and 0.03 m x 0.008 m and get the coordinates of their vertices.

pr = antenna.Rectangle(Length=0.5,Width=0.5);
boundary_1 = getShapeVertices(pr);

pr1 = antenna.Rectangle(Length=0.02,Width=0.4);
boundary_2 = getShapeVertices(pr1);

pr2 = antenna.Rectangle(Length=0.03,Width=0.008);

Create a circle of radius 0.05 m.

ph = antenna.Circle(Radius=0.05);
boundary_4 = getShapeVertices(ph);

Translate the third rectangle to the X-Y plane using the coordinates [0 0.1 0]. Get coordinates of its vertices.

pf = translate(pr2,[0 0.1 0]);
boundary_3 = getShapeVertices(pf);

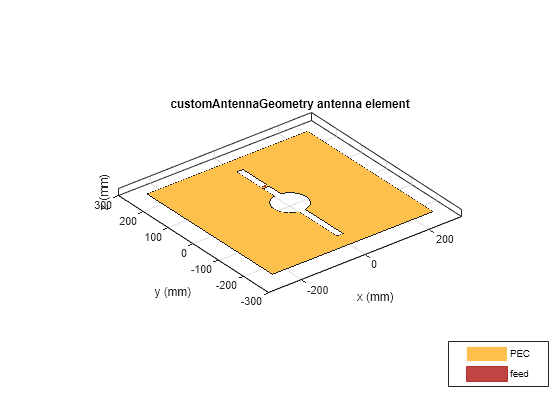

Use customAntennaGeometry object to create a custom slot antenna shape. Specify the shape boundaries and add/subtract operations to get the desired shape. Set the feed location and feed width. View the custom slot antenna.

c = customAntennaGeometry;
c.Boundary = {boundary_1, boundary_2, boundary_3, boundary_4};
c.Operation = 'P1-P2-P4+P3';
c.FeedWidth = 0.01;
c.FeedLocation = [0 0.1 0];

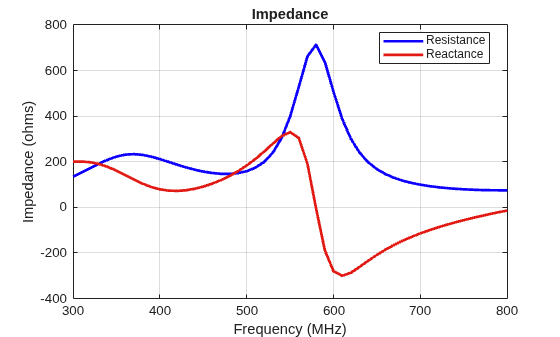

Analyze the impedance of the antenna in 300 MHz to 800 MHz frequency range.

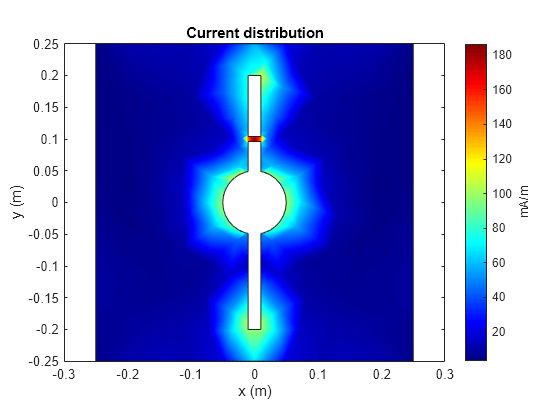

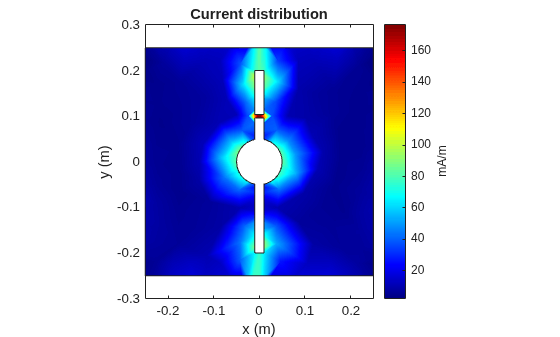

Analyze the current distribution of the antenna at 575 MHz.

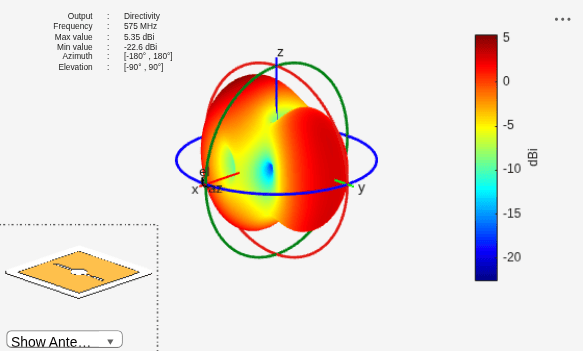

Plot the radiation pattern of the antenna at 575 MHz.



[1] Balanis, C. A. Antenna Theory. Analysis and Design. 3rd Ed. Hoboken, NJ: John Wiley & Sons, 2005.

Version History

Introduced in R2016b
