vivaldiAntipodal
Description
The vivaldiAntipodal
object creates an antipodal Vivaldi
element. Antipodal Vivaldi come under the group of end-fire tapered slot antennas, and such
antennas are expected to provide medium gain with less side lobes and wide bandwidth. These
antennas are low cost, geometrically simple in shape, and mostly used in wireless
communications and radar applications.
Creation
Description
creates an antipodal
Vivaldi object. By default, the antenna is centered at the origin and the dimension are
chosen for an operating frequency of 3.22 GHz.ant
= vivaldiAntipodal
sets
properties using one or more name-value pairs. For example, ant
= vivaldiAntipodal(Name,Value)aviv =
vivaldiAntipodal('BoardLength',0.2)
creates a antipodal Vivaldi with a board
length of 0.2 m.
Note
Properties you do not specify retain their default values.
Properties
Object Functions
axialRatio | Calculate and/or plot axial ratio of antenna or array |
bandwidth | Calculate and/or plot absolute bandwidth of antenna |
beamwidth | Beamwidth of antenna |
charge | Charge distribution on antenna or array surface |
current | Current distribution on antenna or array surface |
design | Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects |
efficiency | Radiation efficiency of antenna |
EHfields | Electric and magnetic fields of antennas or embedded electric and magnetic fields of antenna element in arrays |
impedance | Input impedance of antenna or scan impedance of array |
info | Display information about antenna, array, or platform |
memoryEstimate | Estimate memory required to solve antenna or array mesh |
mesh | Mesh properties of metal, dielectric antenna, or array structure |
meshconfig | Change meshing mode of antenna, array, custom antenna, custom array, or custom geometry |
optimize | Optimize antenna or array using SADEA optimizer |
pattern | Plot radiation pattern and phase of antenna or array or embedded pattern of antenna element in array |
patternAzimuth | Azimuth plane radiation pattern of antenna or array |
patternElevation | Elevation plane radiation pattern of antenna or array |
rcs | Calculate and plot monostatic and bistatic radar cross section (RCS) of platform, antenna, or array |
resonantFrequency | Calculate and/or plot resonant frequency of antenna |
returnLoss | Return loss of antenna or scan return loss of array |
show | Display antenna, array structures, shapes, or platform |
sparameters | Calculate S-parameters for antennas and antenna arrays |
vswr | Voltage standing wave ratio (VSWR) of antenna or array element |

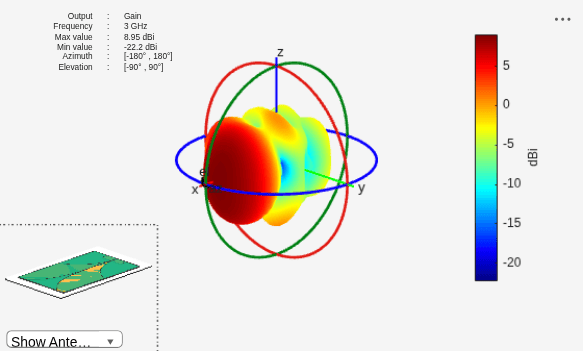

Examples
References
[1] Balanis, C.A. Antenna Theory. Analysis and Design, 3rd Ed. New York: Wiley, 2005.
Version History
Introduced in R2020a
