Mecanismos
R2026aMecanismos simples basados en ángulo y en la posición, como sistemas rueda-eje
Esta biblioteca contiene bloques que representan mecanismos simples basados en ángulo y en la posición.
Bloques de Simscape
 | Cam and Follower (AB-PB) | Position-and-angle-based cam and follower mechanism (Desde R2026a) |
 | Wheel and Axle (AB-PB) | Position-and-angle-based wheel and axle mechanism (Desde R2026a) |
Información relacionada
Ejemplos destacados
Interfacing Angle-Based Rotational and Position-Based Translational Networks
Demonstrates how you can define positive directions for translation and rotation in your physical view and adjust the Simscape™ network to achieve the desired behavior. It highlights the flexibility of Simscape in mapping physical directions to schematic representations.

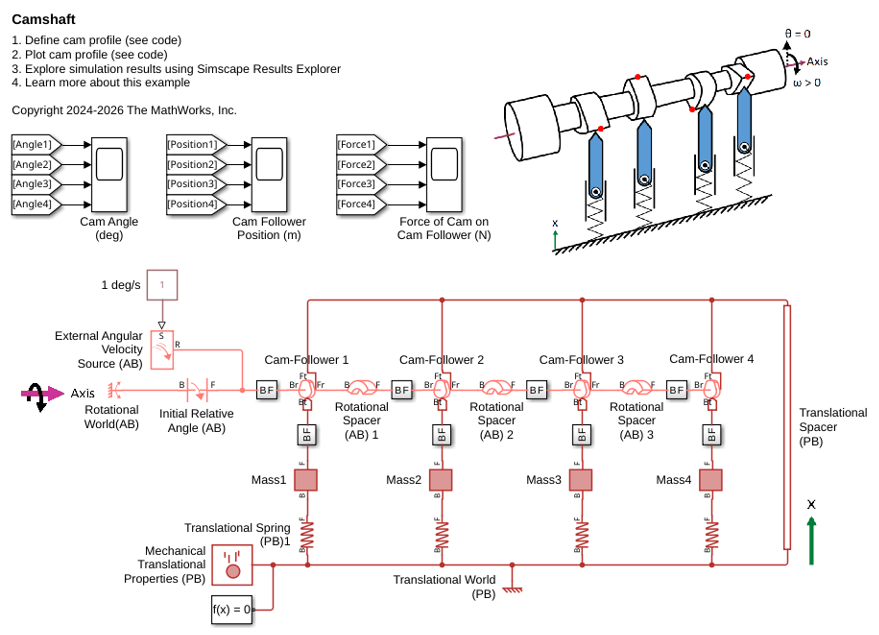

Camshaft
Model a camshaft using Cam and Follower (AB-PB) blocks. The camshaft has four cams, each driving a knife-edge follower on a spring. This example describes how to set up the cam profile, offset angles between the cams, and initial conditions.
