icdf

Inverse cumulative distribution function

Syntax

x = icdf('name',p,A)

x = icdf('name',p,A,B)

x = icdf('name',p,A,B,C)

x = icdf('name',p,A,B,C,D)

x = icdf(pd,p)

Description

x = icdf('name',p,A) returns the inverse cumulative distribution function (icdf) for the one-parameter distribution family specified by 'name' and the distribution parameter A, evaluated at the probability values in p.

x = icdf('name',p,A,B) returns the icdf for the two-parameter distribution family specified by 'name' and the distribution parameters A and B, evaluated at the probability values in p.

x = icdf('name',p,A,B,C) returns the icdf for the three-parameter distribution family specified by 'name' and the distribution parameters A, B, and C, evaluated at the probability values in p.

x = icdf('name',p,A,B,C,D) returns the icdf for the four-parameter distribution family specified by 'name' and the distribution parameters A, B, C, and D, evaluated at the probability values in p.

x = icdf(pd,p) returns the icdf function of the probability distribution object pd, evaluated at the probability values in p.

Examples

Compute the Normal Distribution icdf

Create a standard normal distribution object with the mean, $$\mu$$, equal to 0 and the standard deviation, $$\sigma$$, equal to 1.

mu = 0;
sigma = 1;
pd = makedist('Normal','mu',mu,'sigma',sigma);

Define the input vector p to contain the probability values at which to calculate the icdf.

p = [0.1,0.25,0.5,0.75,0.9];

Compute the icdf values for the standard normal distribution at the values in p.

x = icdf(pd,p)

x = 1×5

   -1.2816   -0.6745         0    0.6745    1.2816

Each value in x corresponds to a value in the input vector p. For example, at the value p equal to 0.9, the corresponding icdf value x is equal to 1.2816.

Alternatively, you can compute the same icdf values without creating a probability distribution object. Use the icdf function and specify a standard normal distribution using the same parameter values for $$\mu$$ and $$\sigma$$.

x2 = icdf('Normal',p,mu,sigma)

x2 = 1×5

   -1.2816   -0.6745         0    0.6745    1.2816

The icdf values are the same as those computed using the probability distribution object.

Compute the Poisson Distribution icdf

Create a Poisson distribution object with the rate parameter, $$\lambda$$, equal to 2.

lambda = 2;
pd = makedist('Poisson','lambda',lambda);

Define the input vector p to contain the probability values at which to calculate the icdf.

p = [0.1,0.25,0.5,0.75,0.9];

Compute the icdf values for the Poisson distribution at the values in p.

x = icdf(pd,p)

x = 1×5

     0     1     2     3     4

Each value in x corresponds to a value in the input vector p. For example, at the value p equal to 0.9, the corresponding icdf value x is equal to 4.

Alternatively, you can compute the same icdf values without creating a probability distribution object. Use the icdf function and specify a Poisson distribution using the same value for the rate parameter $$\lambda$$.

x2 = icdf('Poisson',p,lambda)

x2 = 1×5

     0     1     2     3     4

The icdf values are the same as those computed using the probability distribution object.

Compute Standard Normal Critical Values

Create a standard normal distribution object.

pd = makedist('Normal')

pd =
  NormalDistribution

  Normal distribution
       mu = 0
    sigma = 1

Determine the critical values at the 5% significance level for a test statistic with a standard normal distribution, by computing the upper and lower 2.5% values.

x = icdf(pd,[.025,.975])

x = 1×2

   -1.9600    1.9600

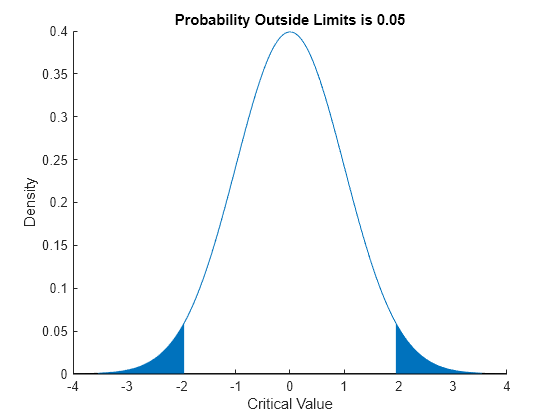

Plot the cdf and shade the critical regions.

p = normspec(x,0,1,'outside')

p = 0.0500

Input Arguments

'name' — Probability distribution name

character vector or string scalar of probability distribution name

Probability distribution name, specified as one of the probability distribution names in this table.

'name'	Distribution	Input Parameter A	Input Parameter B	Input Parameter C	Input Parameter D
'Beta'	Beta Distribution	a first shape parameter	b second shape parameter	—	—
'Binomial'	Binomial Distribution	n number of trials	p probability of success for each trial	—	—
'BirnbaumSaunders'	Birnbaum-Saunders Distribution	β scale parameter	γ shape parameter	—	—
'Burr'	Burr Type XII Distribution	α scale parameter	c first shape parameter	k second shape parameter	—
'Chisquare'	Chi-Square Distribution	ν degrees of freedom	—	—	—
'Exponential'	Exponential Distribution	μ mean	—	—	—
'Extreme Value'	Extreme Value Distribution	μ location parameter	σ scale parameter	—	—
'F'	F Distribution	ν1 numerator degrees of freedom	ν2 denominator degrees of freedom	—	—
'Gamma'	Gamma Distribution	a shape parameter	b scale parameter	—	—
'Generalized Extreme Value'	Generalized Extreme Value Distribution	k shape parameter	σ scale parameter	μ location parameter	—
'Generalized Pareto'	Generalized Pareto Distribution	k tail index (shape) parameter	σ scale parameter	μ threshold (location) parameter	—
'Geometric'	Geometric Distribution	p probability parameter	—	—	—
'HalfNormal'	Half-Normal Distribution	μ location parameter	σ scale parameter	—	—
'Hypergeometric'	Hypergeometric Distribution	m size of the population	k number of items with the desired characteristic in the population	n number of samples drawn	—
'InverseGaussian'	Inverse Gaussian Distribution	μ scale parameter	λ shape parameter	—	—
'Logistic'	Logistic Distribution	μ mean	σ scale parameter	—	—
'LogLogistic'	Loglogistic Distribution	μ mean of logarithmic values	σ scale parameter of logarithmic values	—	—
'Lognormal'	Lognormal Distribution	μ mean of logarithmic values	σ standard deviation of logarithmic values	—	—
'Nakagami'	Nakagami Distribution	μ shape parameter	ω scale parameter	—	—
'Negative Binomial'	Negative Binomial Distribution	r number of successes	p probability of success in a single trial	—	—
'Noncentral F'	Noncentral F Distribution	ν1 numerator degrees of freedom	ν2 denominator degrees of freedom	δ noncentrality parameter	—
'Noncentral t'	Noncentral t Distribution	ν degrees of freedom	δ noncentrality parameter	—	—
'Noncentral Chi-square'	Noncentral Chi-Square Distribution	ν degrees of freedom	δ noncentrality parameter	—	—
'Normal'	Normal Distribution	μ mean	σ standard deviation	—	—
'Poisson'	Poisson Distribution	λ mean	—	—	—
'Rayleigh'	Rayleigh Distribution	b scale parameter	—	—	—
'Rician'	Rician Distribution	s noncentrality parameter	σ scale parameter	—	—
'Stable'	Stable Distribution	α first shape parameter	β second shape parameter	γ scale parameter	δ location parameter
'T'	Student's t Distribution	ν degrees of freedom	—	—	—
'tLocationScale'	t Location-Scale Distribution	μ location parameter	σ scale parameter	ν shape parameter	—
'Uniform'	Uniform Distribution (Continuous)	a lower endpoint (minimum)	b upper endpoint (maximum)	—	—
'Discrete Uniform'	Uniform Distribution (Discrete)	n maximum observable value	—	—	—
'Weibull'	Weibull Distribution	a scale parameter	b shape parameter	—	—

Example: 'Normal'

p — Probability values at which to evaluate icdf

scalar value | array of scalar values

Probability values at which to evaluate the icdf, specified as a scalar value, or an array of scalar values in the range [0,1].

If one or more of the input arguments p, A, B, C, and D are arrays, then the array sizes must be the same. In this case, icdf expands each scalar input into a constant array of the same size as the array inputs. See 'name' for the definitions of A, B, C, and D for each distribution.

Example: [0.1,0.25,0.5,0.75,0.9]

Data Types: single | double

A — First probability distribution parameter

scalar value | array of scalar values

First probability distribution parameter, specified as a scalar value or an array of scalar values.

If one or more of the input arguments p, A, B, C, and D are arrays, then the array sizes must be the same. In this case, icdf expands each scalar input into a constant array of the same size as the array inputs. See 'name' for the definitions of A, B, C, and D for each distribution.

Data Types: single | double

B — Second probability distribution parameter

scalar value | array of scalar values

Second probability distribution parameter, specified as a scalar value or an array of scalar values.

If one or more of the input arguments p, A, B, C, and D are arrays, then the array sizes must be the same. In this case, icdf expands each scalar input into a constant array of the same size as the array inputs. See 'name' for the definitions of A, B, C, and D for each distribution.

Data Types: single | double

C — Third probability distribution parameter

scalar value | array of scalar values

Third probability distribution parameter, specified as a scalar value or an array of scalar values.

If one or more of the input arguments p, A, B, C, and D are arrays, then the array sizes must be the same. In this case, icdf expands each scalar input into a constant array of the same size as the array inputs. See 'name' for the definitions of A, B, C, and D for each distribution.

Data Types: single | double

D — Fourth probability distribution parameter

scalar value | array of scalar values

Fourth probability distribution parameter, specified as a scalar value or an array of scalar values.

If one or more of the input arguments p, A, B, C, and D are arrays, then the array sizes must be the same. In this case, icdf expands each scalar input into a constant array of the same size as the array inputs. See 'name' for the definitions of A, B, C, and D for each distribution.

Data Types: single | double

pd — Probability distribution

probability distribution object

Probability distribution, specified as a probability distribution object created with a function or app in this table.

Function or App	Description
makedist	Create a probability distribution object using specified parameter values.
fitdist	Fit a probability distribution object to sample data.
Distribution Fitter	Fit a probability distribution to sample data using the interactive Distribution Fitter app and export the fitted object to the workspace.
paretotails	Create a piecewise distribution object that has generalized Pareto distributions in the tails.

Output Arguments

x — icdf values

scalar value | array of scalar values

icdf values, returned as a scalar value or an array of scalar values. x is the same size as p after any necessary scalar expansion. Each element in x is the icdf value of the distribution, specified by the corresponding elements in the distribution parameters (A, B, C, and D) or specified by the probability distribution object (pd), evaluated at the corresponding element in p.

Alternative Functionality

icdf is a generic function that accepts either a distribution by its name 'name' or a probability distribution object pd. It is faster to use a distribution-specific function, such as norminv for the normal distribution and binoinv for the binomial distribution. For a list of distribution-specific functions, see Supported Distributions.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

• The input argument 'name' must be a compile-time constant. For example, to use the normal distribution, include coder.Constant('Normal') in the -args value of codegen (MATLAB Coder).

• The input argument pd can be a fitted probability distribution object for beta, exponential, extreme value, lognormal, normal, and Weibull distributions. Create pd by fitting a probability distribution to sample data from the fitdist function. For an example, see Code Generation for Probability Distribution Objects.

For more information on code generation, see Introduction to Code Generation and General Code Generation Workflow.
